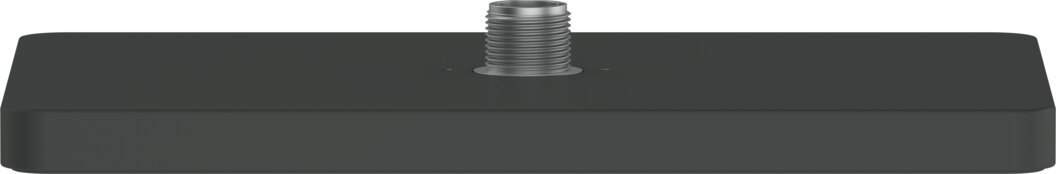

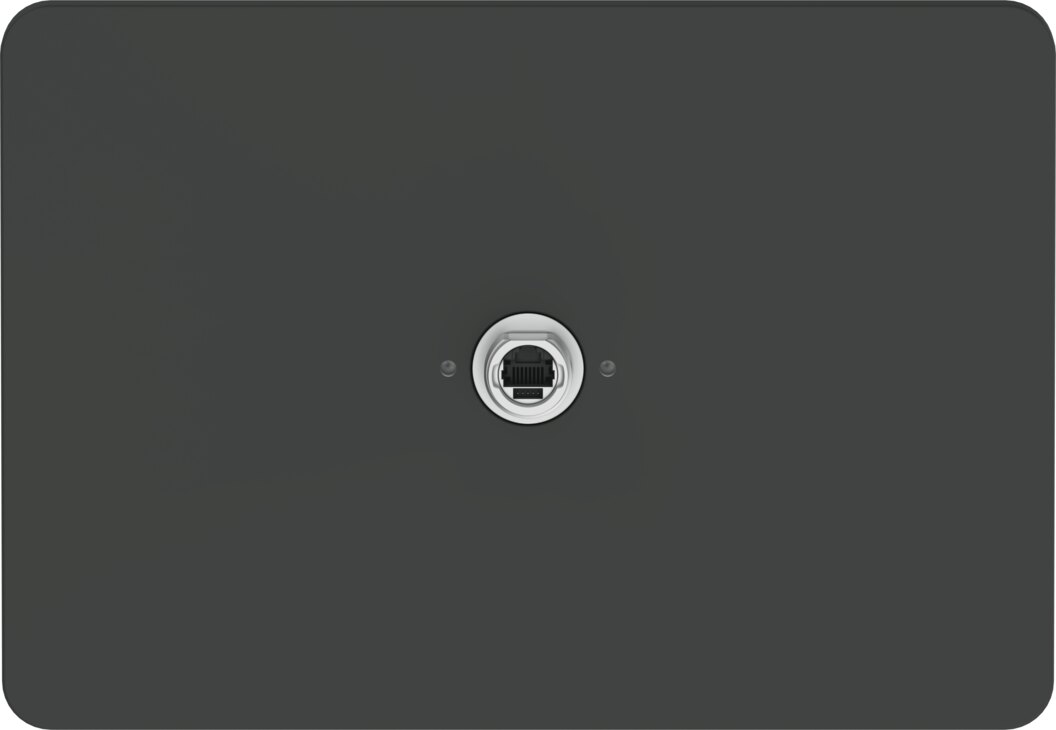

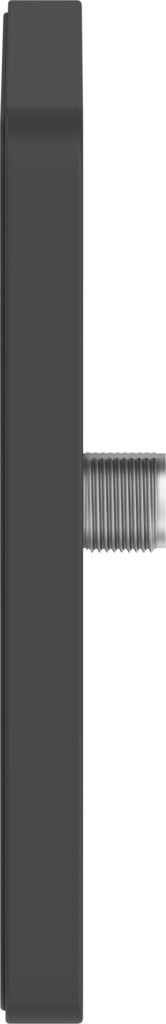

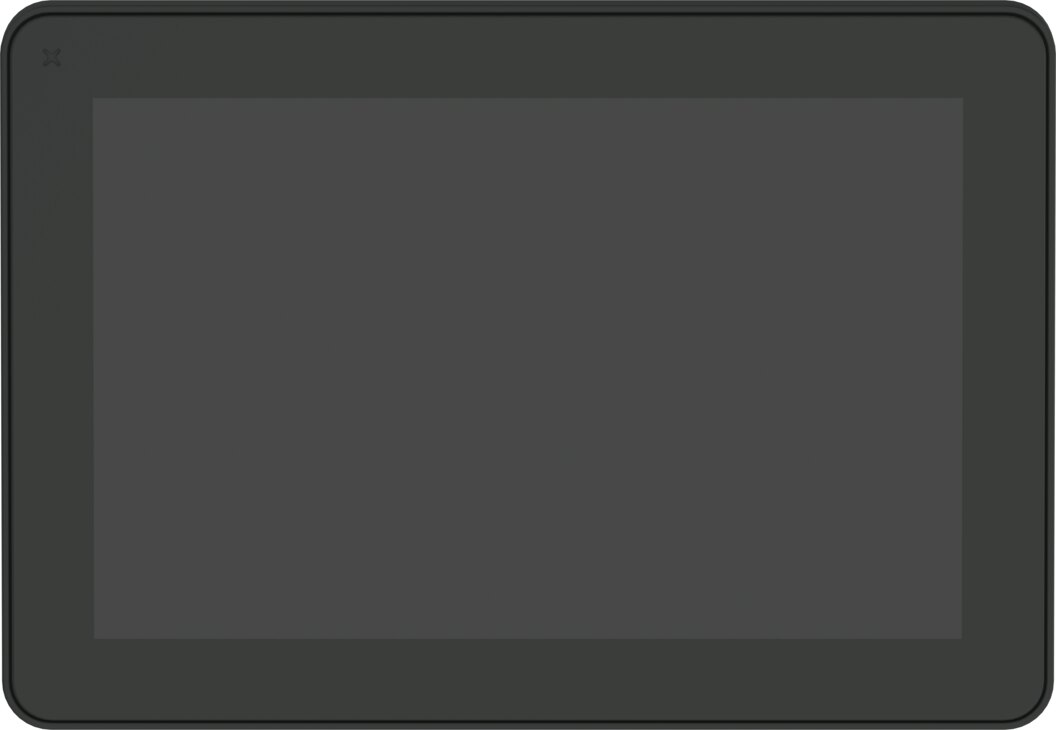

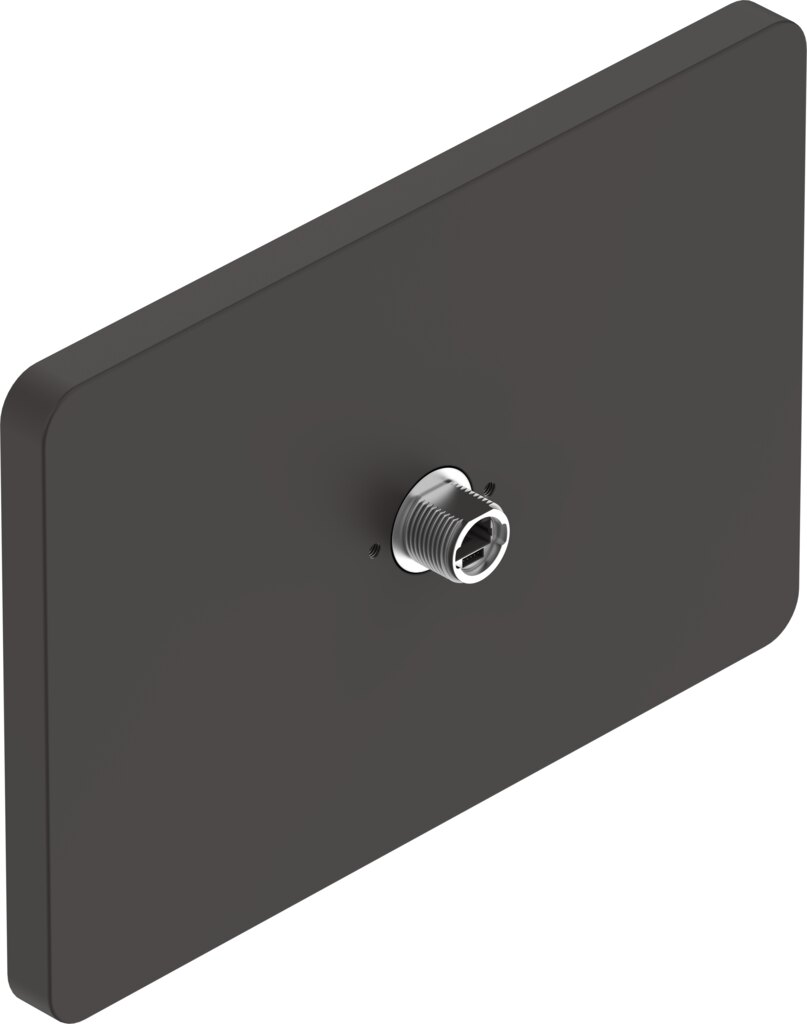

Operator unit CDPX-X-E2-W-10-EX2 - Festo 8155221
Net
excl. VAT
€2,335.26
Item
FES-8155221
Manufacturer no.
CDPX-X-E2-W-10-EX2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Width | 265 mm |
|---|---|
| Mounting depth | 17 mm |
| Height | 138 mm |
| Length | 34 mm |
| Max. front panel thickness | 17 mm |
| Real-time clock | Yes |
| Supported PLC protocol | CODESYS 3.X, Modbus RTU client, Modbus® RTU server, Modbus® TCP client, Modbus® TCP server |
| Deviation, real-time clock | < 100 ppm at 25 °C |
| Number of colours | 16 M |
| Display | With backlighting |
| Display type | TFT colour |
| Display characteristics | Touchscreen |
| Display size | 10.1" |
| Backup battery | Rechargeable lithium battery |
| Display resolution | 1280x800 pixels |
| Electrical power consumption | 14 W |
| Approval | c UL us - Listed (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -30 ... 80 °C |
| Relative air humidity | 5 - 85%, Non-condensing |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20 ... 55 °C |
| Note on ambient temperature | For vertical mounting |
| Product weight | 1200 g |
| Type of mounting | VESA interface |
| Note on materials | RoHS compliant |
| Ethernet interface, connection type | Socket |
| Ethernet interface, connection system | RJ45 |
| Ethernet interface, number of pins/wires | 8 |
| Ethernet interface, transmission rate | 10/100 Mbit/s |
| Ethernet interface, function | Programming, Power supply PoE |
| Ethernet interface, specification | IEEE 802.3 af/at |
| USB interface, function | File transfer |
| USB interface, type of connection | Socket |
| USB interface, connection technology | USB 2.0 type A |
| Programming software | Designer Studio |
| CPU data | 1 GB RAM |
| Explosion protection certification outside the EU | Class I, Div. 2 (US) |
| Explosion protection | Class I, Div. 2 (US) |
| Certificate issuing authority | UL E239998, UL E245518 |
| Manufacturer | Festo |
| Hersteller-Nr | CDPX-X-E2-W-10-EX2 |
| EAN | 4052568587246 |
| Zolltarifnummer | 85371091 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
