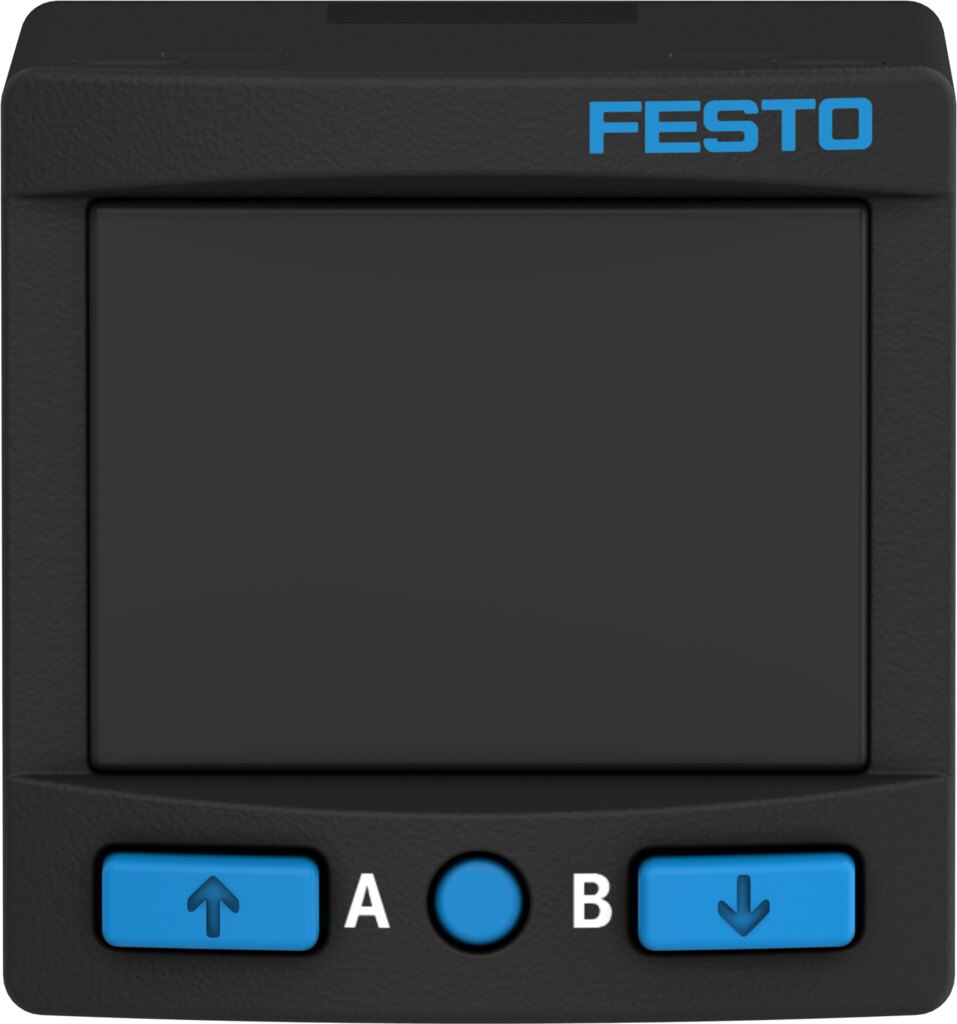

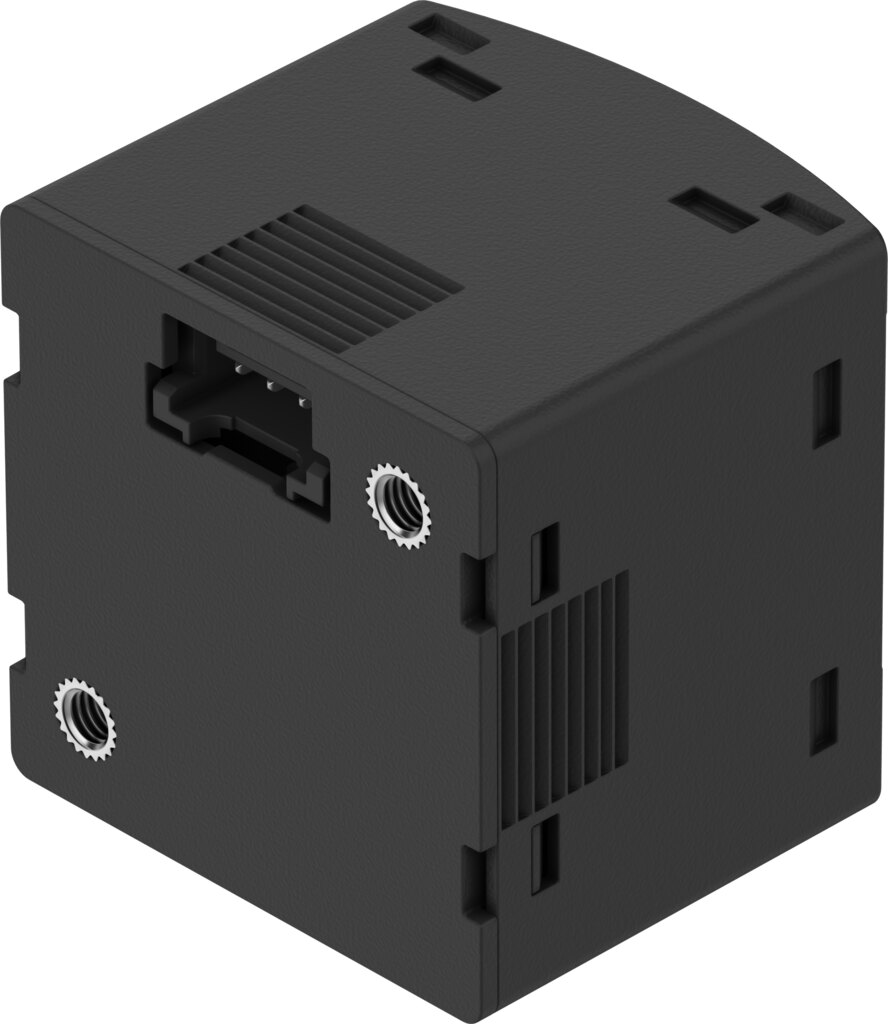

Operator unit CDSV series IP40 24 V DC CDSV-P20-A - Festo 8217573
Festo operator unit CDSV-P20-A at a glance: operating voltage 15 to 30 V DC, degree of protection IP40, ambient temperature 0 to 50 °C. The operator unit displays process data at the machine and accepts operator input.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The CDSV-P20-A belongs to the Festo CDSV series. The operator unit displays process data at the machine and accepts operator input.
Benefits
- Operating voltage 15 to 30 V DC
- Degree of protection IP40
- Ambient temperature 0 to 50 °C
- Housing in Reinforced PA
- Operating elements 3 keys
Applications
For machine operation, visualisation and diagnostics directly at the system.
Technical data
| Feature | Value |
|---|---|
| Type | CDSV-P20-A |
| Festo part number | 8217573 |
| Maximum cable length | 3 m |
| Operator controls | 3 keys |
| Reverse polarity protection | For all electrical connections |
| Overload protection | Available |
| Operational voltage range DC | 15 to 30 V |
| Current consumption at nominal operating voltage | Electronics: ≤ 100 mA |
| Maximum current consumption | 20 mA |
| KC mark | KC-EMV |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Storage temperature | -20 to 80 °C |
| Relative air humidity | 0 - 85 % |
| Degree of protection | IP40 |
| Protection class | III |
| Ambient temperature | 0 to 50 °C |
| Electrical power consumption | 0.5 W |
| Nominal operating voltage DC | 24 V |
| Nominal altitude of use | ≤ 2000 m NHN |
| Display type | Illuminated LCD |
| Ready status indication | Through backlighting |
| Status indication | Blue LED = normal status, Red LED = malfunction |
| Note on materials | RoHS compliant |
| Material housing | Reinforced PA |
| Weight (price list) | 0.03 kg |
| Weight | 0.03 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CDSV-P20-A |
| EAN | 4052568771294 |
| Zolltarifnummer | 85371098 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 24 V DC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
