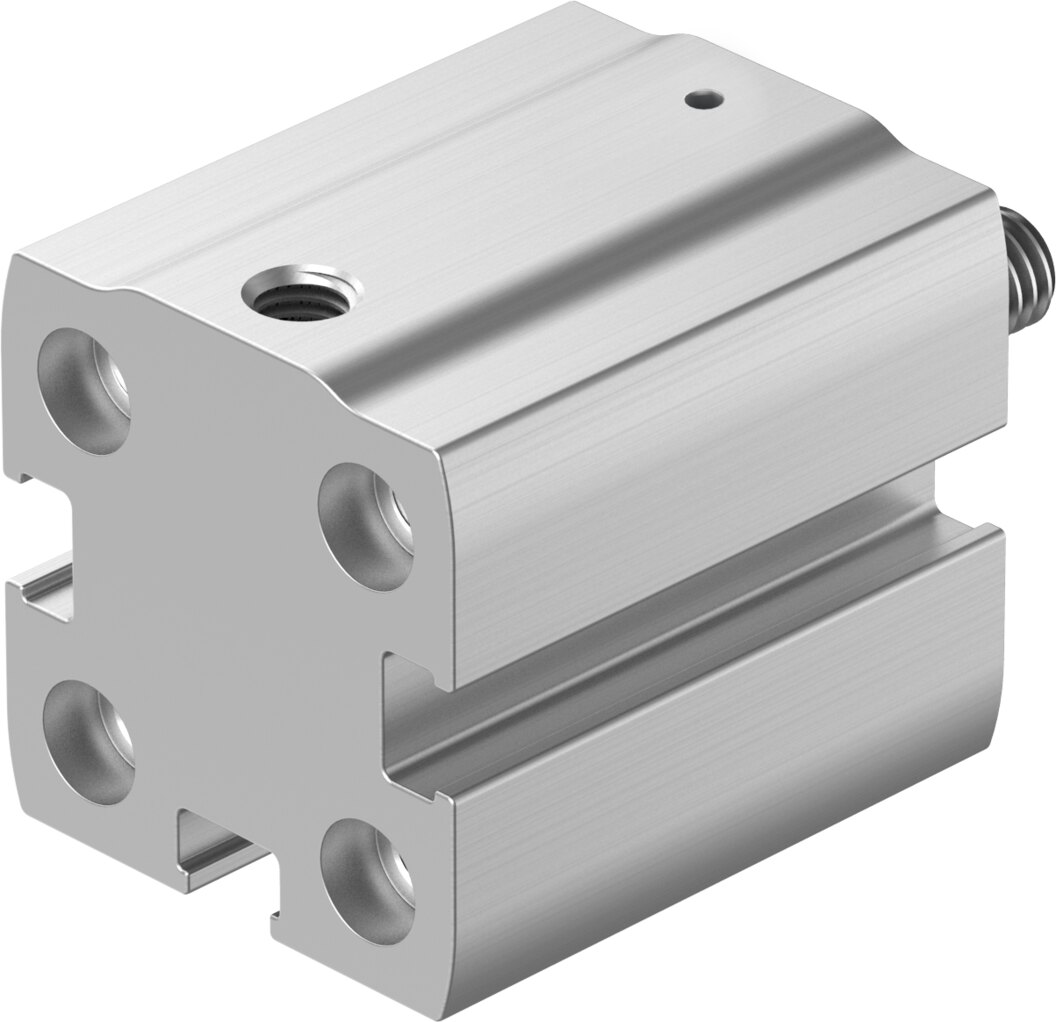

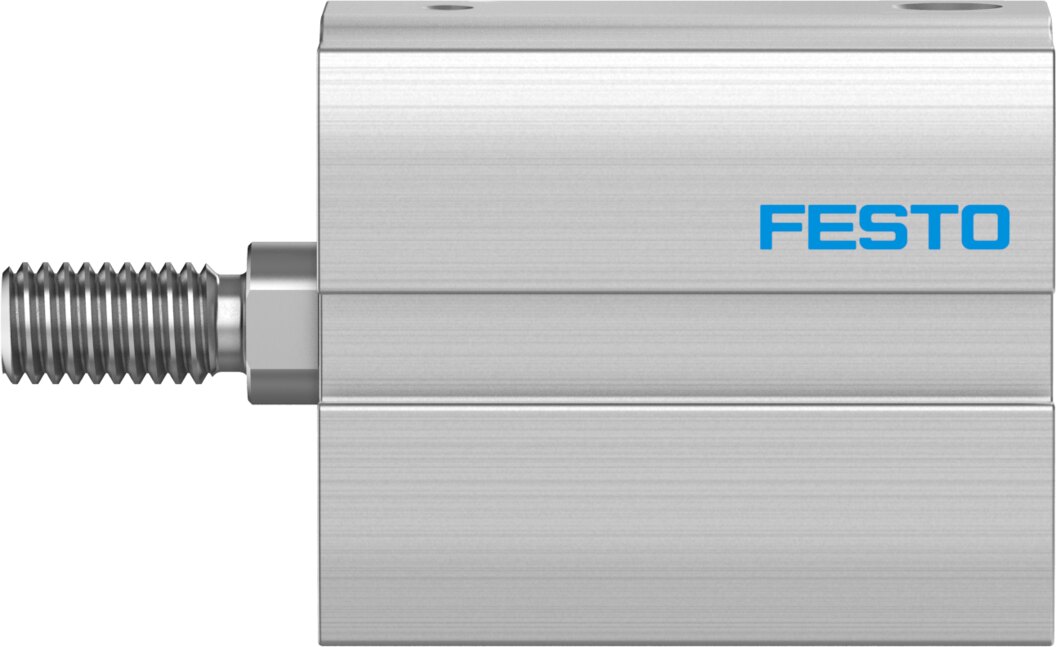

Compact cylinder single-acting pushing Ø 16 mm stroke 10 mm AEN-S-16-10-A-P-A - Festo 8092139

Where space is short, the AEN-S-16-10-A-P-A fits in: single-acting pushing compact cylinder, 16 mm piston, 10 mm stroke, 95 N advance force at 6 bar.

Key benefits

• Air only for the working stroke: theoretical 95 N advance force at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.038 J in the end positions
• Pressure range: 1 to 10 bar operating pressure, any mounting position
• Position sensing: prepared for proximity switches, air port M5
• Corrosion resistance class CRC 1: ambient temperature 0 to 80 °C, stainless piston rod
• LABS (PWIS) conformity: VDMA24364-B2-L

Applications

The pushing AEN-S-16-10-A-P-A suits ejecting, stopping, marking and clamping where force is needed in one direction only. Since only one direction uses compressed air, the AEN-S-16-10-A-P-A needs one valve port less. Mount the AEN-S-16-10-A-P-A via through-holes or the female threads in the housing. For mass calculations Festo states 42 g basic weight at 0 mm stroke plus 18 g per 10 mm stroke.
