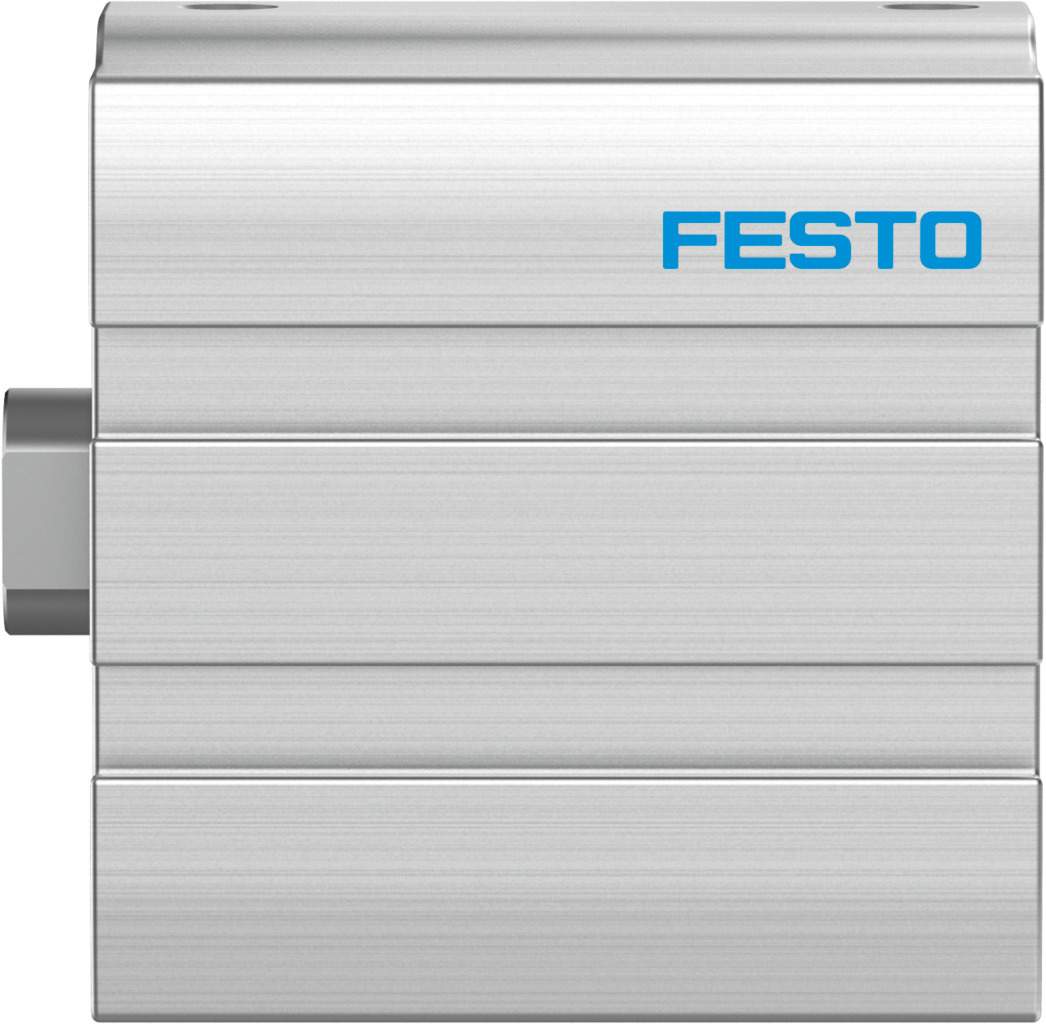

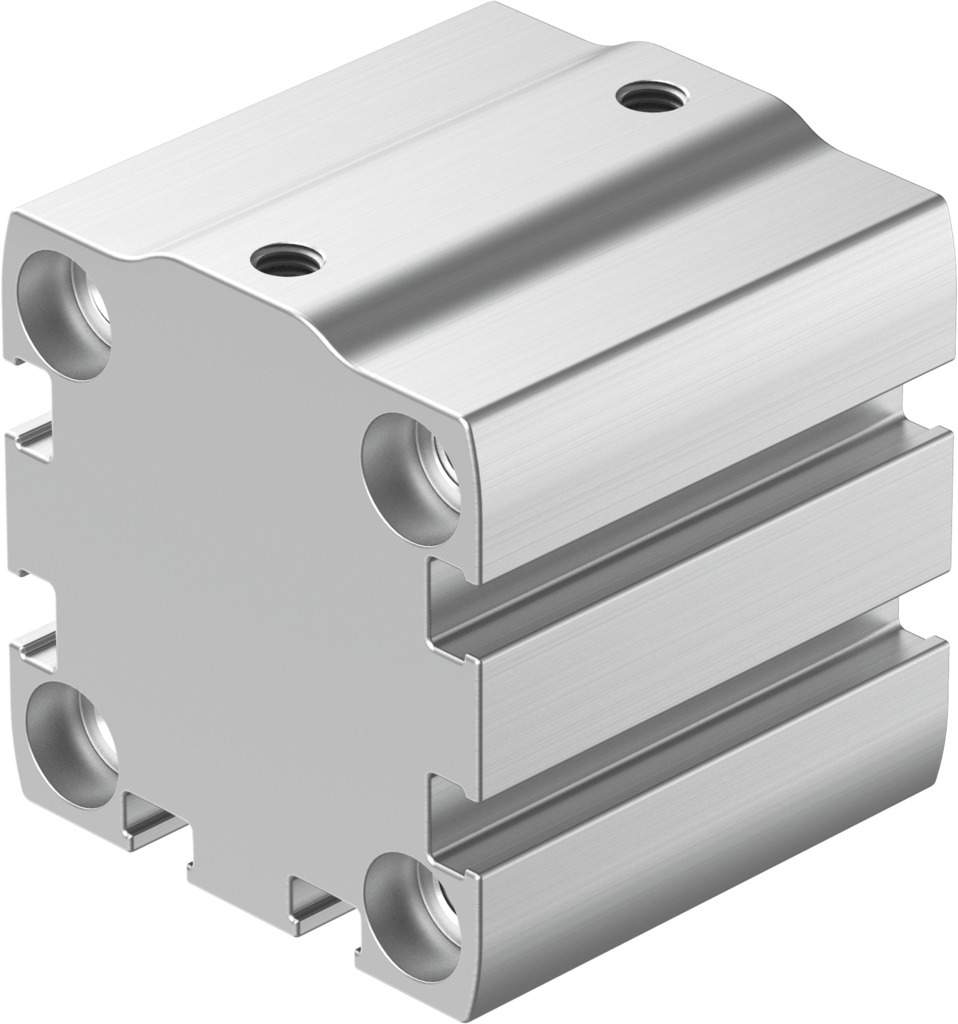

Compact cylinder double-acting Ø 32 mm stroke 5 mm ADN-S-32-5-I-P-A - Festo 8076363

32 mm piston, 5 mm stroke, 483 N advance and 415 N return force at 6 bar: the double-acting compact cylinder ADN-S-32-5-I-P-A fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Force in both directions: theoretical 483 N advance and 415 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.4 J
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

The ADN-S-32-5-I-P-A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. The short 5 mm stroke keeps cycle times short and air consumption low. The 32 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread. For sizing, Festo states 117 g basic weight and 37 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
