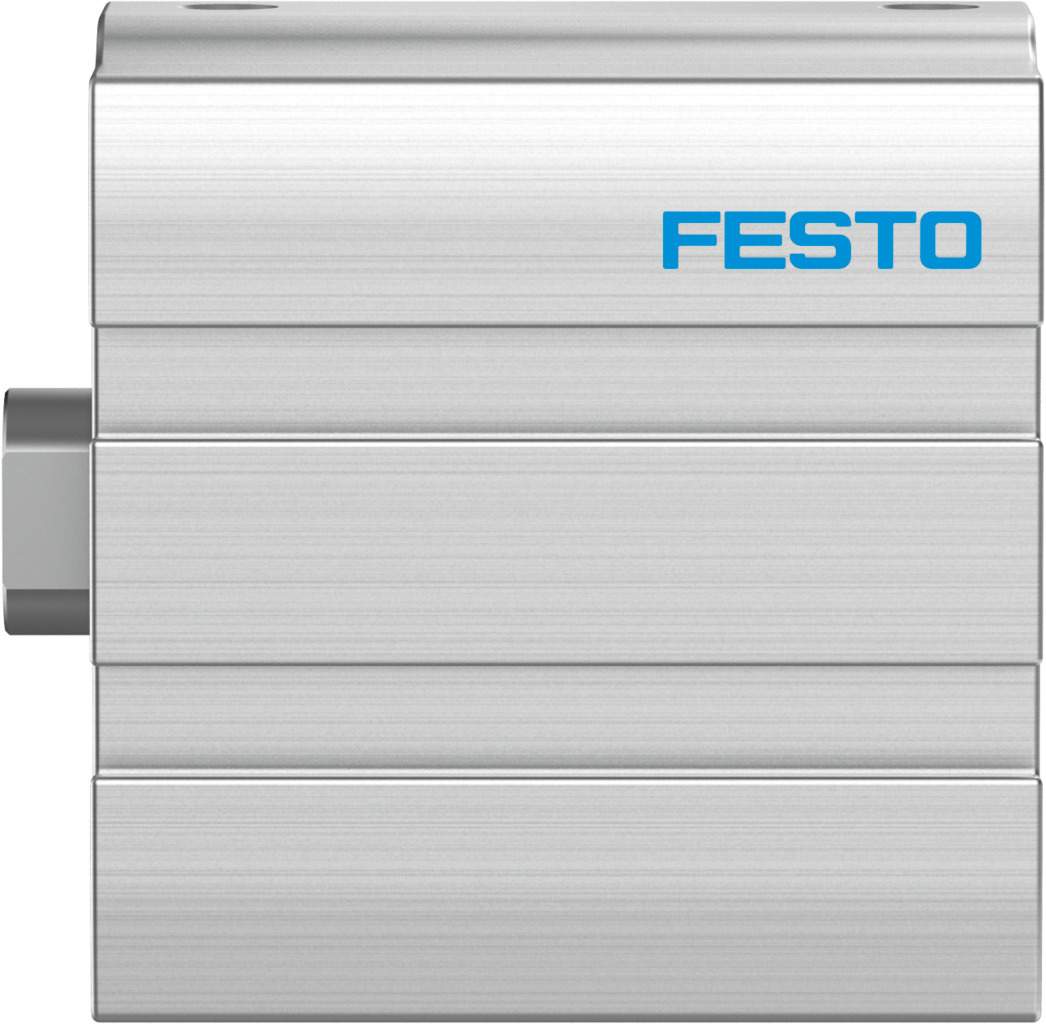

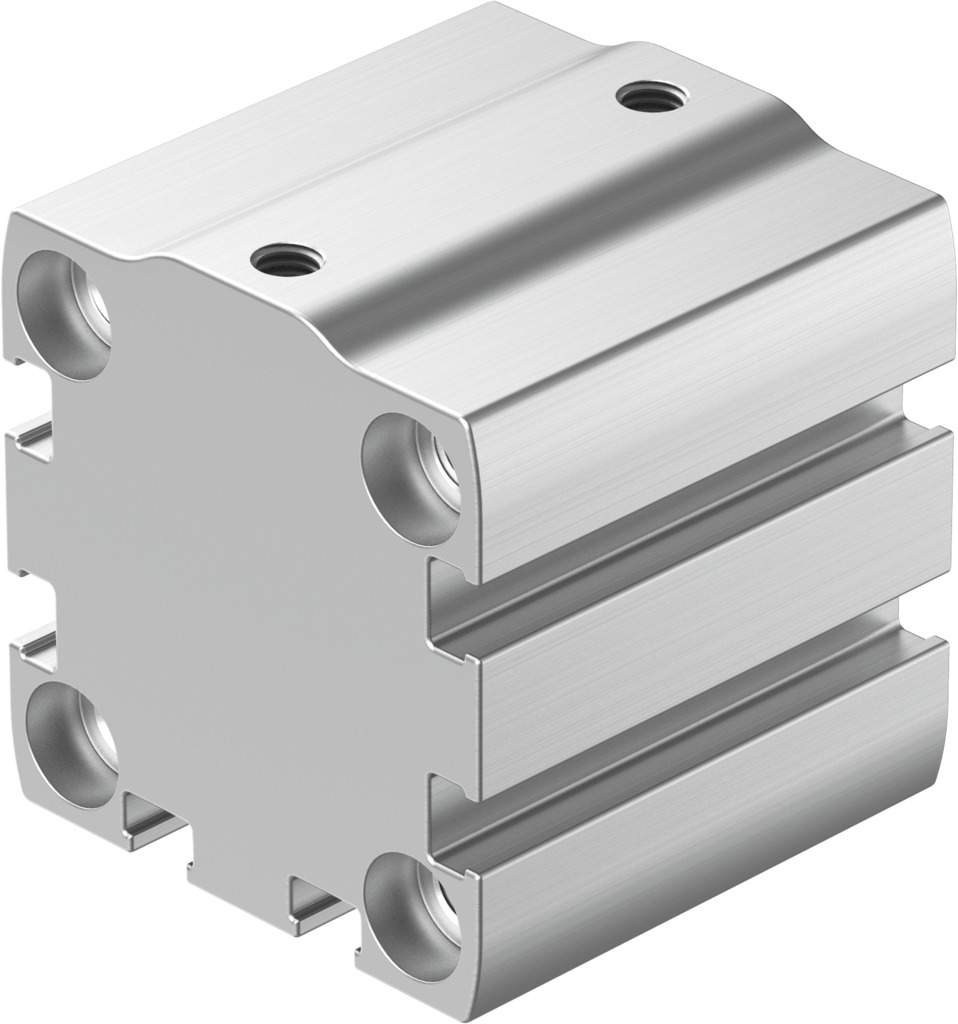

Compact cylinder double-acting Ø 32 mm stroke 40 mm ADN-S-32-40-I-P - Festo 8076370

Where space in the stroke direction is short, the ADN-S-32-40-I-P fits in: double-acting compact cylinder, 32 mm piston, 40 mm stroke, 483 N advance and 415 N return force at 6 bar.

Key benefits

• Force in both directions: theoretical 483 N advance and 415 N return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.26 J in the end positions
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

Typical tasks for the ADN-S-32-40-I-P are clamping, aligning, stopping and pushing out in assembly and test stations. Mounting via through-holes, female threads or Festo accessories, attachments go on the piston rod with female thread of the ADN-S-32-40-I-P. For sizing, Festo states 107 g basic weight and 31 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
