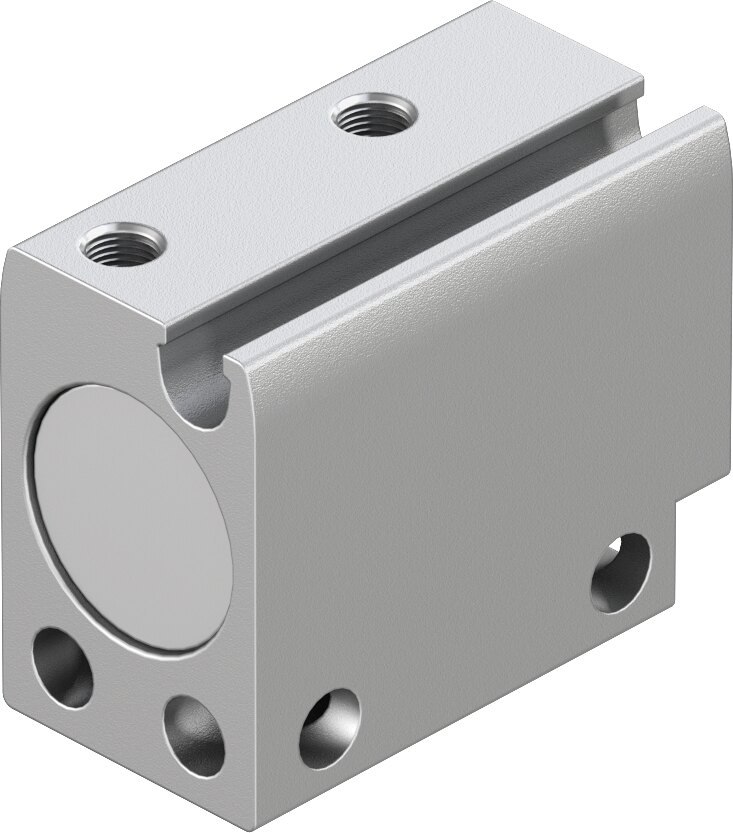

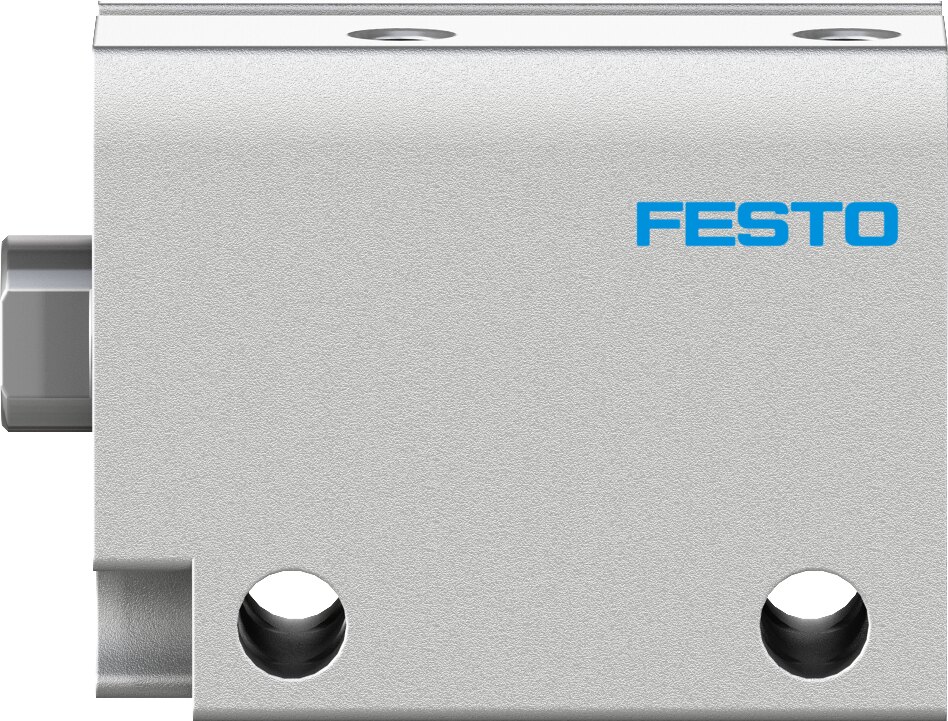

Compact cylinder double-acting Ø 10 mm stroke 10 mm ADN-S-10-10-I-F1A - Festo 8142519

The Festo ADN-S-10-10-I-F1A is a double-acting compact cylinder with a 10 mm piston and 10 mm stroke. At 6 bar it reaches 47 N advance and 30.2 N return force.

Benefits

• Easy sizing: 47 N forward and 30.2 N back at 6 bar according to Festo
• Compact and light: 10 mm piston, port M3, product weight 15.4 g
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Flexible use: operating pressure 1 to 8 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

Small-parts assembly, placement and light clamping are the domain of the ADN-S-10-10-I-F1A with a 10 mm piston. The short 10 mm stroke keeps cycle times short and air consumption low. Mount the ADN-S-10-10-I-F1A via through-holes in the housing. According to Festo the product weight is 15.4 g.
