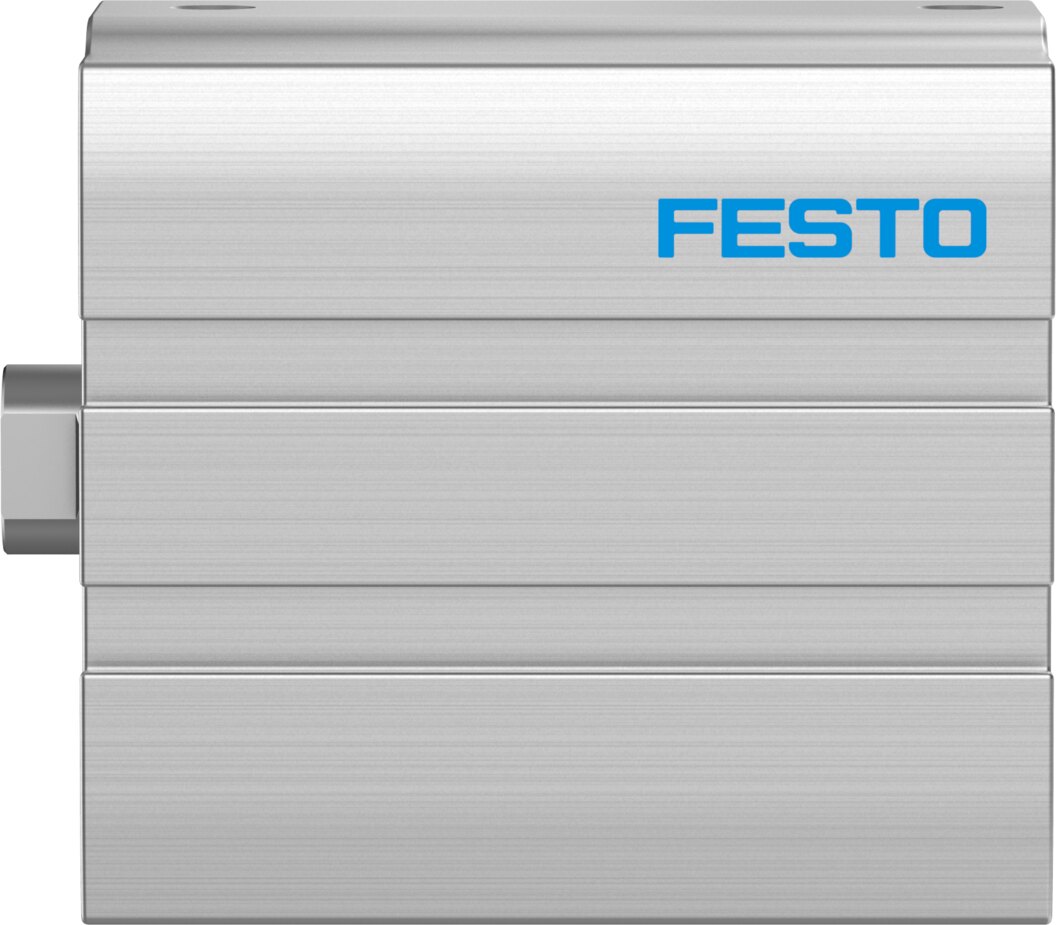

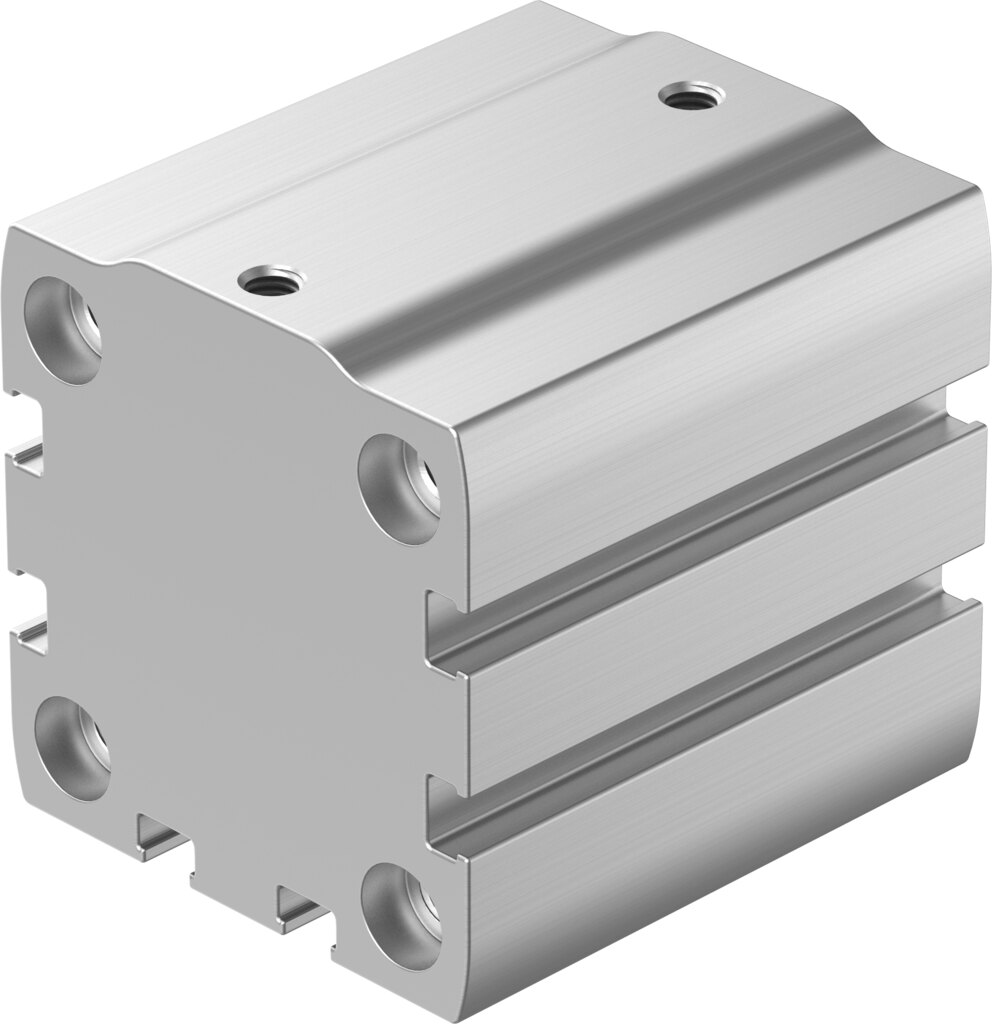

Compact cylinder double-acting Ø 40 mm stroke 25 mm ADN-S-40-25-I-P-A-F1A - Festo 8142880

The Festo ADN-S-40-25-I-P-A-F1A is a double-acting compact cylinder with a 40 mm piston and 25 mm stroke. At 6 bar it reaches 754 N advance and 686 N return force.

Key benefits

• Double-acting: 754 N on advance, 686 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.7 J
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

Typical tasks for the ADN-S-40-25-I-P-A-F1A are clamping, aligning, stopping and pushing out in assembly and test stations. The 40 mm cylinder is fastened via through-holes or female threads in the housing, the piston rod has a female thread. For sizing, Festo states 304 g basic weight and 62 g moving mass at 0 mm stroke, plus 45 g and 9 g respectively per 10 mm stroke.
