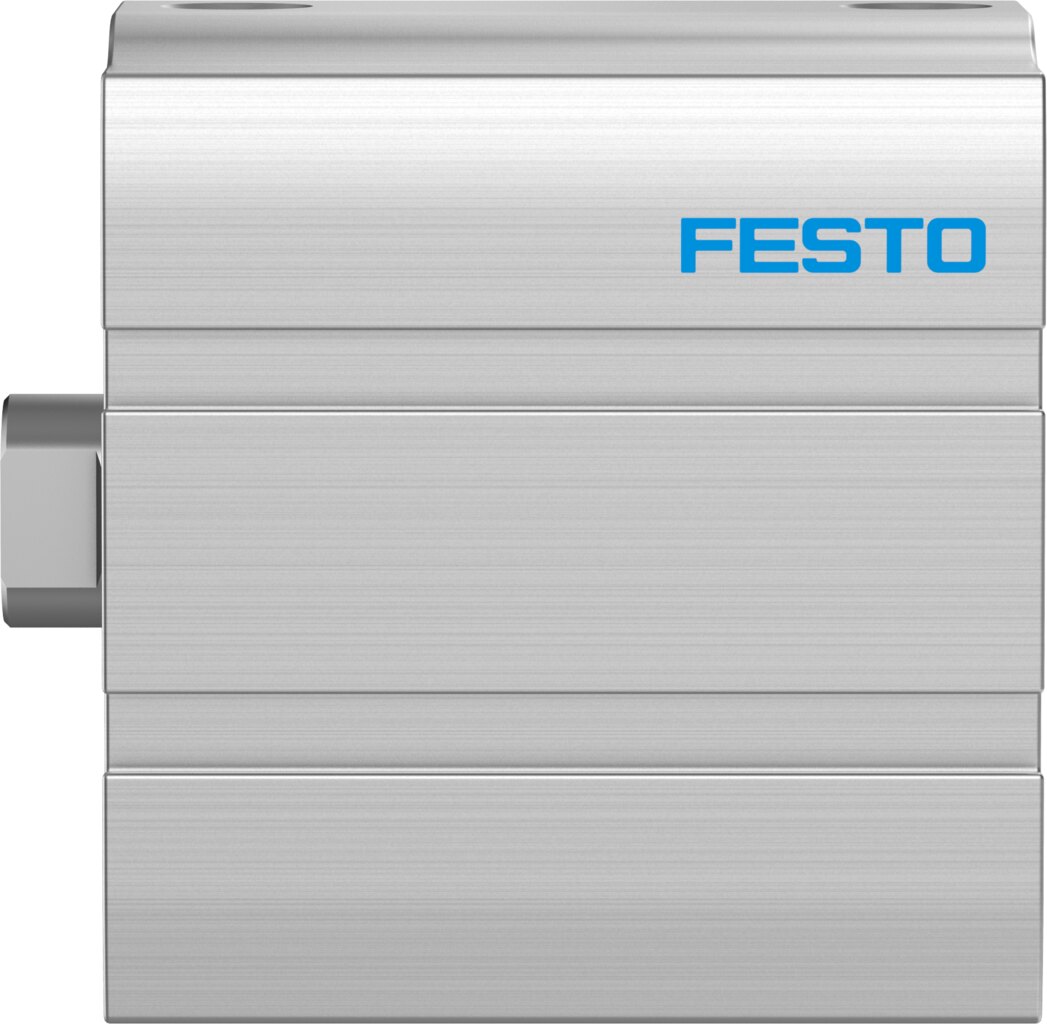

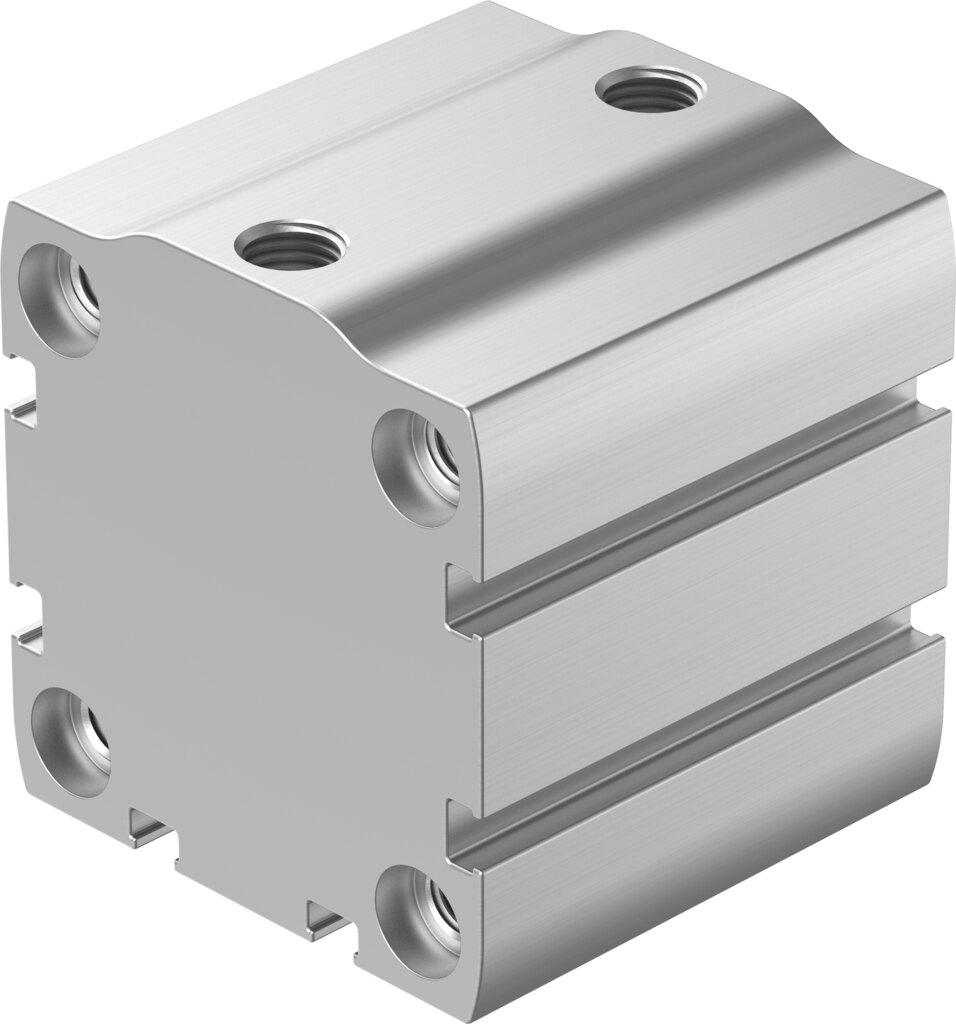

Double-acting compact cylinder Ø 50 mm stroke 25 mm ADN-S-50-25-I-P-A - Festo 5138192

The compact cylinder ADN-S-50-25-I-P-A provides 1178 N advance and 1057 N retracting force at 6 bar while its Ø 50 mm piston and 25 mm stroke take up little space. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. Proximity switches report the end positions of the Ø 50 mm piston to the controller.

Key benefits

• 1178 N advance and 1057 N return force at 6 bar
• Elastic end-position cushioning P at both ends, up to 1 J impact energy
• Piston rod with female thread made of high-alloy stainless steel
• End positions can be sensed with proximity switches
• Pressure range 0.4 to 10 bar
• LABS (PWIS) conformity to VDMA24364-B2-L

Typical applications

With a 25 mm stroke, the ADN-S-50-25-I-P-A suits clamping, holding and stopping tasks in fixtures that need only a few millimetres of travel. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 25 mm stroke can be used in any mounting position.
