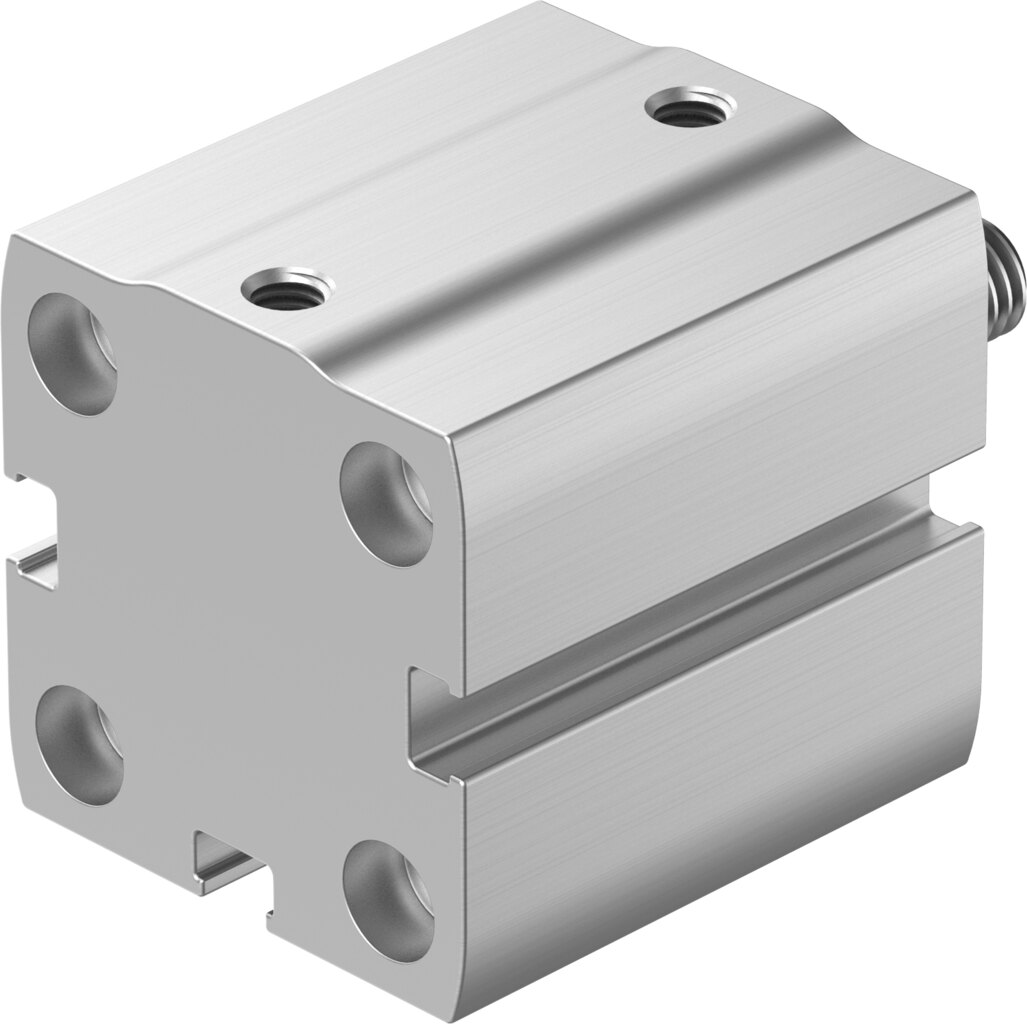

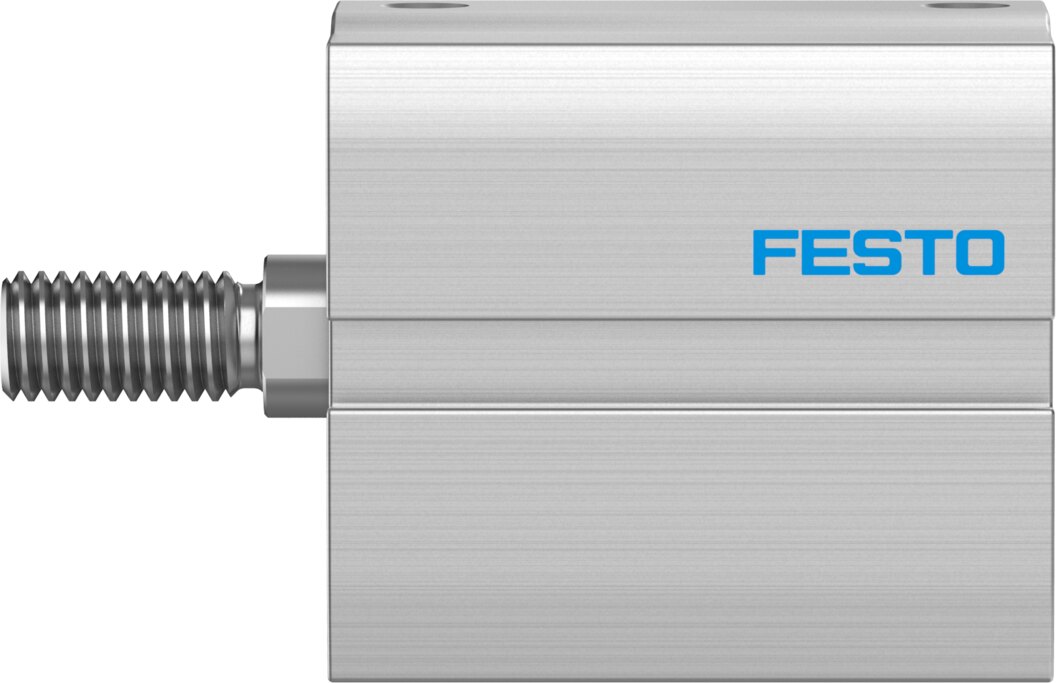

Compact cylinder double-acting Ø 25 mm stroke 25 mm ADN-S-25-25-A-P-A-F1A - Festo 8142830

The Festo ADN-S-25-25-A-P-A-F1A is a double-acting compact cylinder with a 25 mm piston and 25 mm stroke. At 6 bar it reaches 295 N advance and 247 N return force.

Benefits at a glance

• Double-acting: 295 N on advance, 247 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.3 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

On assembly lines the ADN-S-25-25-A-P-A-F1A with a 25 mm diameter handles clamping, stopping and positioning tasks. The 25 mm cylinder is fastened via through-holes or female threads in the housing, the piston rod has a male thread. For sizing, Festo states 88 g basic weight and 25 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
