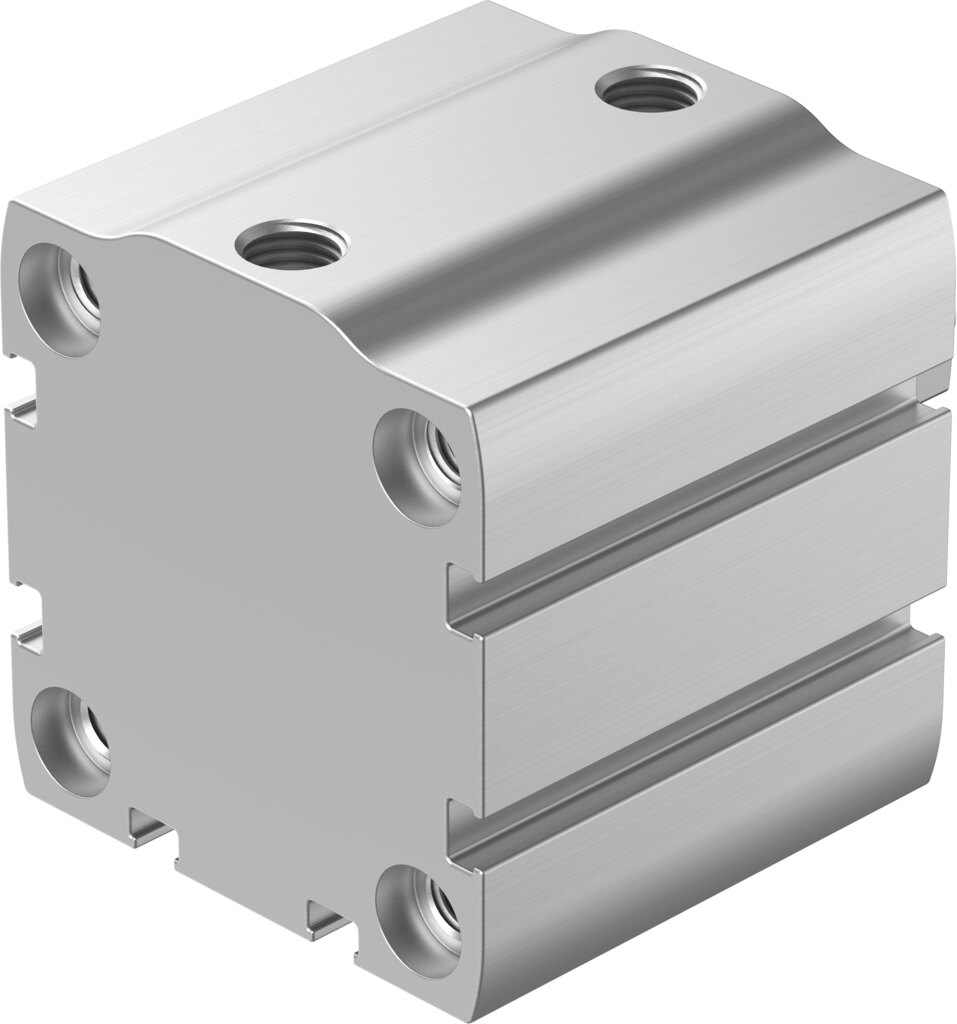

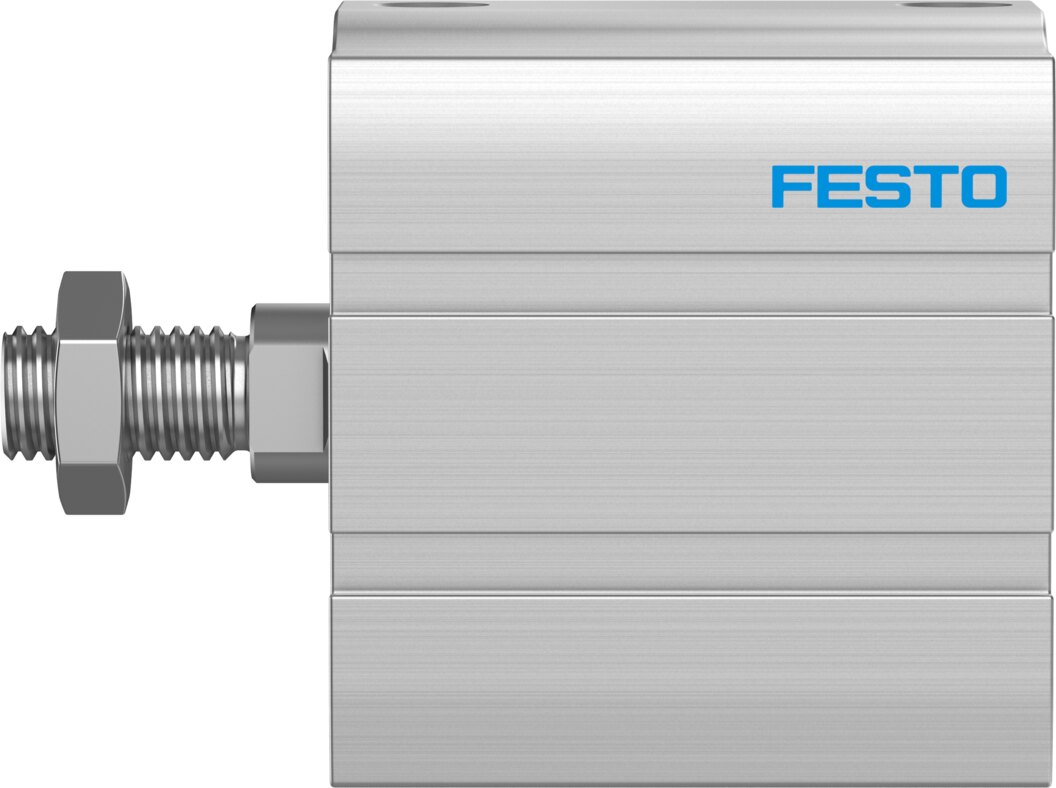

Compact cylinder double-acting Ø 50 mm stroke 20 mm ADN-S-50-20-A-P-A - Festo 8092076

50 mm piston, 20 mm stroke, 1178 N advance and 1057 N return force at 6 bar: the double-acting compact cylinder ADN-S-50-20-A-P-A fits fixtures where a standard cylinder is too long.

Key benefits

• Double-acting: 1178 N on advance, 1057 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 1 J in the end positions
• Sensor-ready: end positions detectable via proximity switch, air port G1/8
• Flexible use: operating pressure 0.4 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel

Applications

With a 50 mm piston the ADN-S-50-20-A-P-A covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. Mount the ADN-S-50-20-A-P-A via through-holes, female threads or Festo accessories. For sizing, Festo states 324 g basic weight and 104 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
