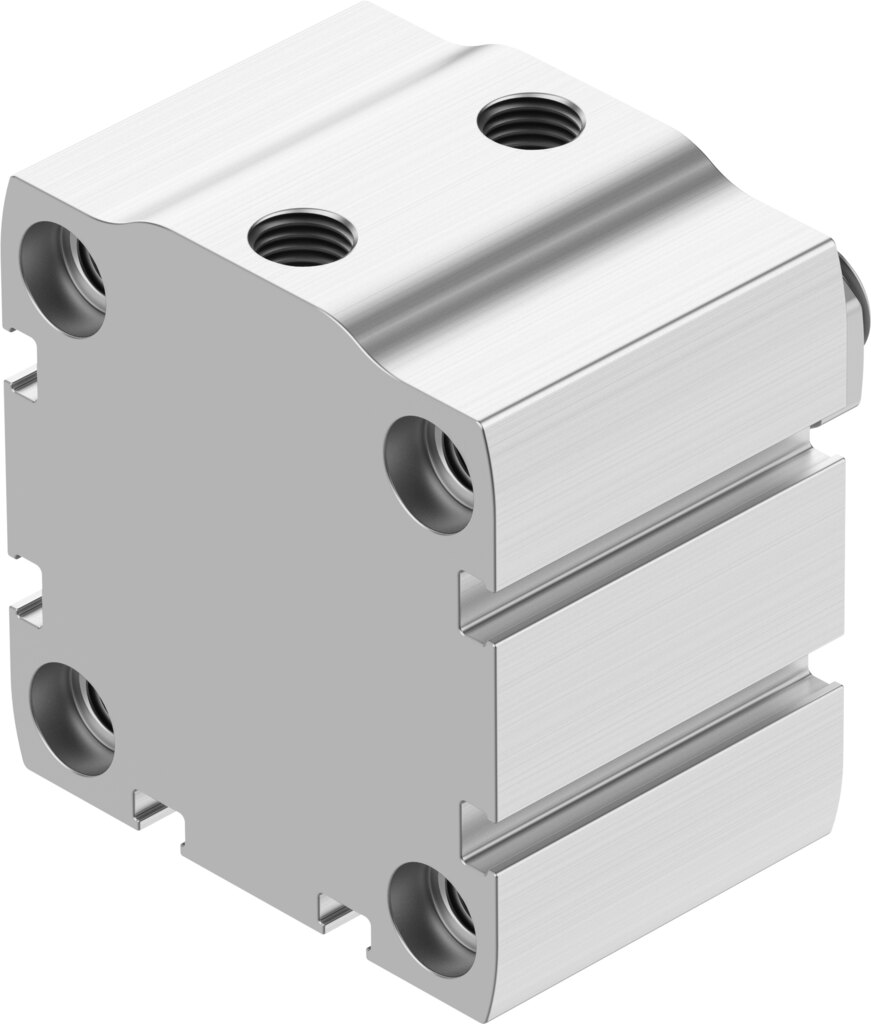

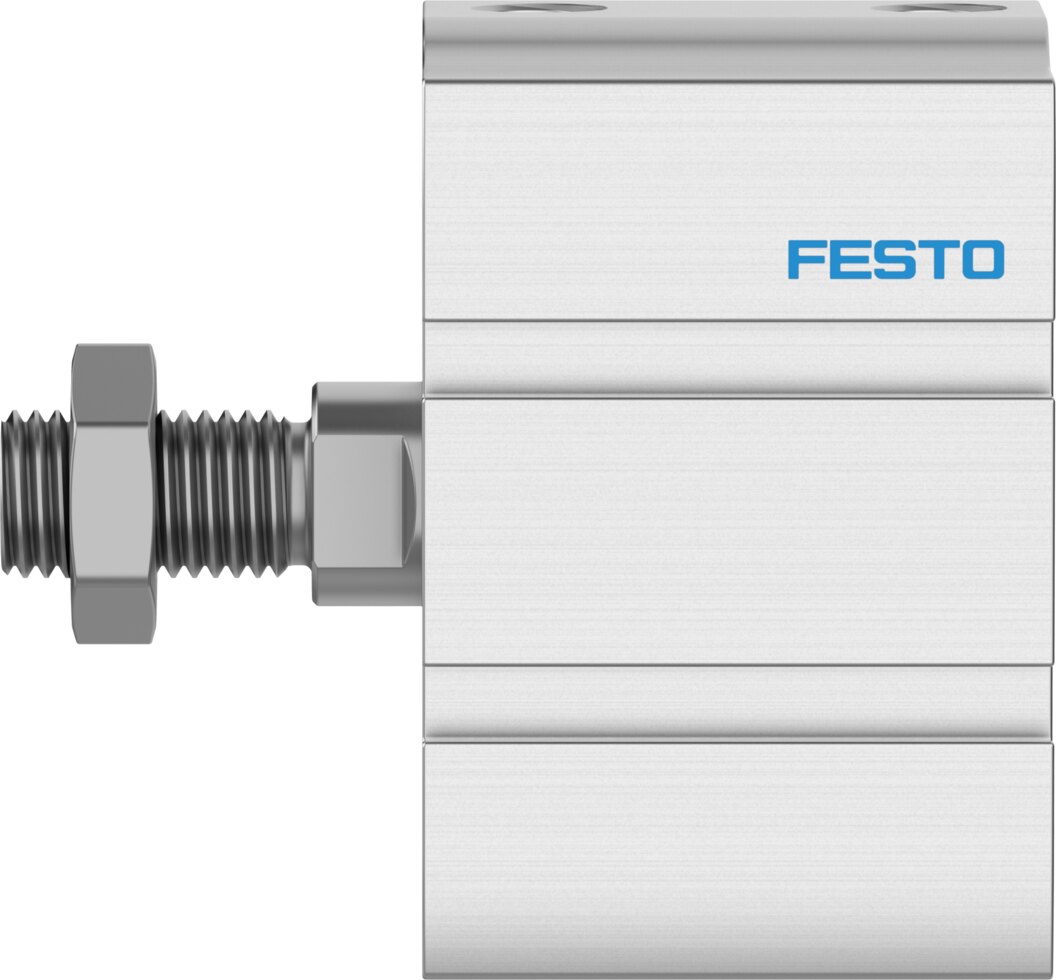

Compact cylinder double-acting Ø 50 mm stroke 15 mm ADN-S-50-15-A-P - Festo 8092083

50 mm piston, 15 mm stroke, 1178 N advance and 1057 N return force at 6 bar: the double-acting compact cylinder ADN-S-50-15-A-P fits fixtures where a standard cylinder is too long.

Key benefits

• Easy sizing: 1178 N forward and 1057 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.6 J in the end positions
• Additional PTFE piston guide: extra guidance for the piston, 50 mm diameter
• Wide pressure range: 0.4 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-S-50-15-A-P with a 50 mm diameter. Mount the ADN-S-50-15-A-P via through-holes, female threads or Festo accessories. For sizing, Festo states 310 g basic weight and 105 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
