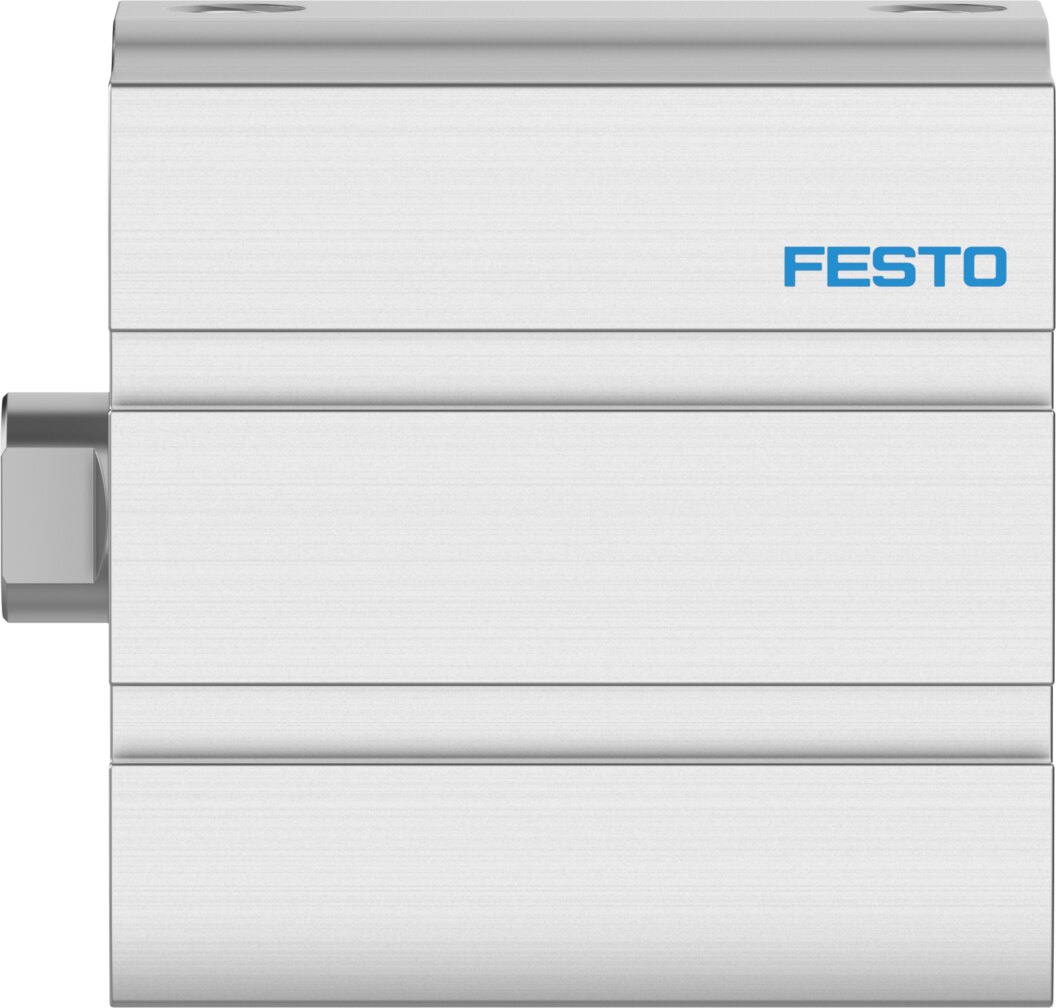

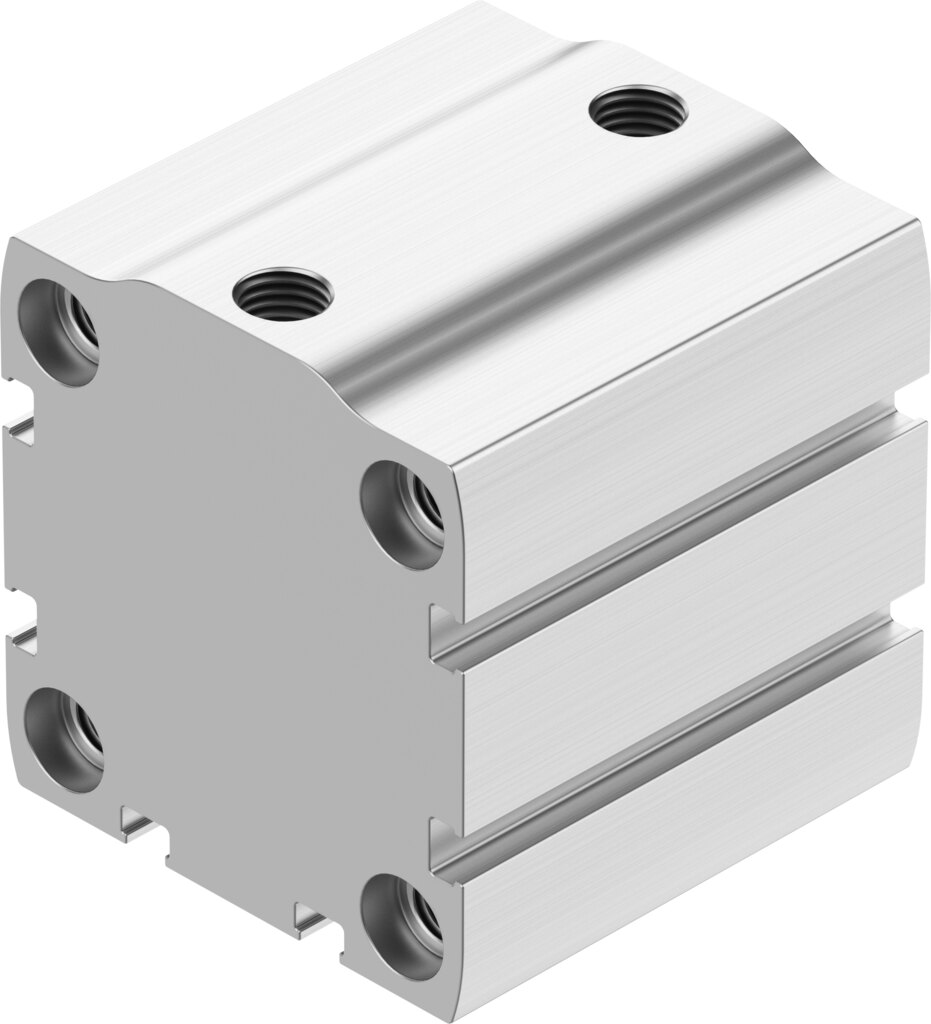

Double-acting compact cylinder Ø 50 mm stroke 35 mm ADN-S-50-35-I-P - Festo 5138184

The compact cylinder ADN-S-50-35-I-P provides 1178 N advance and 1057 N retracting force at 6 bar while its Ø 50 mm piston and 35 mm stroke take up little space. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. Cleanroom suitability is rated class 5 according to ISO 14644-1.

Benefits at a glance

• 1178 N advance and 1057 N return force at 6 bar
• Elastic end-position cushioning P at both ends, up to 0.6 J impact energy
• Piston rod with female thread made of high-alloy stainless steel
• Operating pressure 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Use

In handling and fixture construction the cylinder moves parts over 35 mm, for example as an ejector, pusher or lifting unit. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 35 mm stroke can be used in any mounting position.
