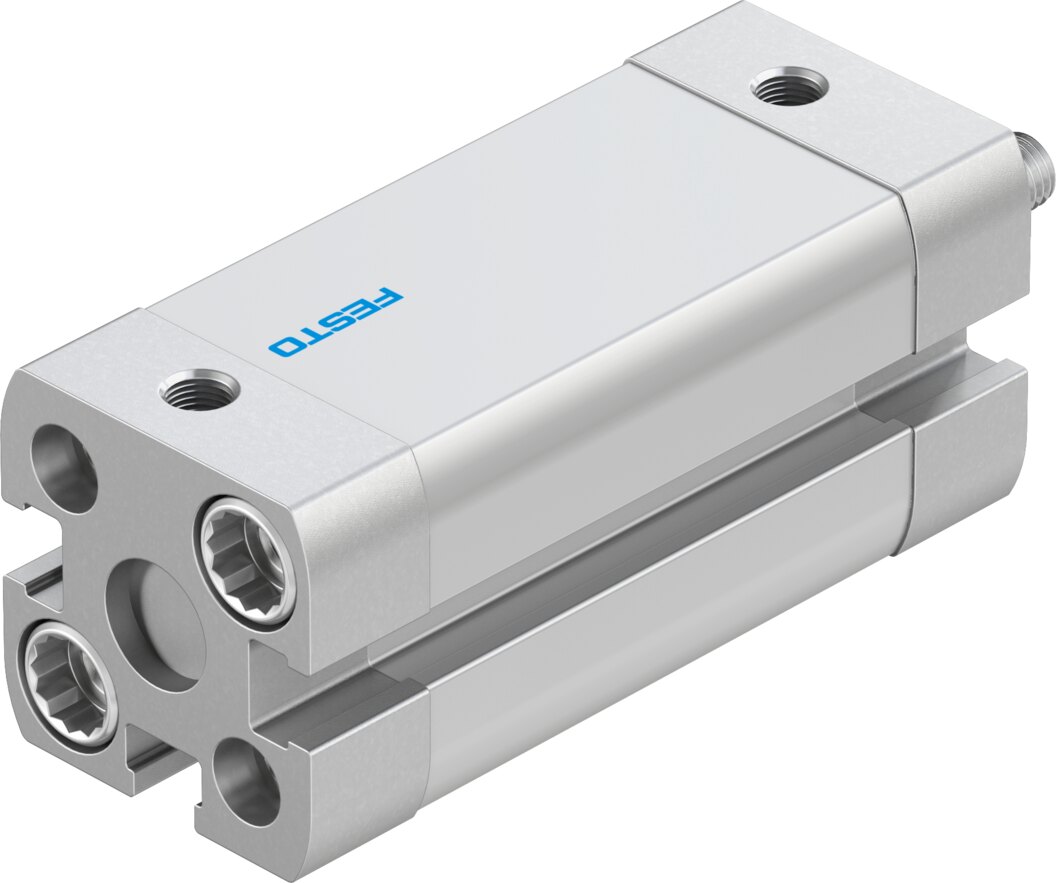

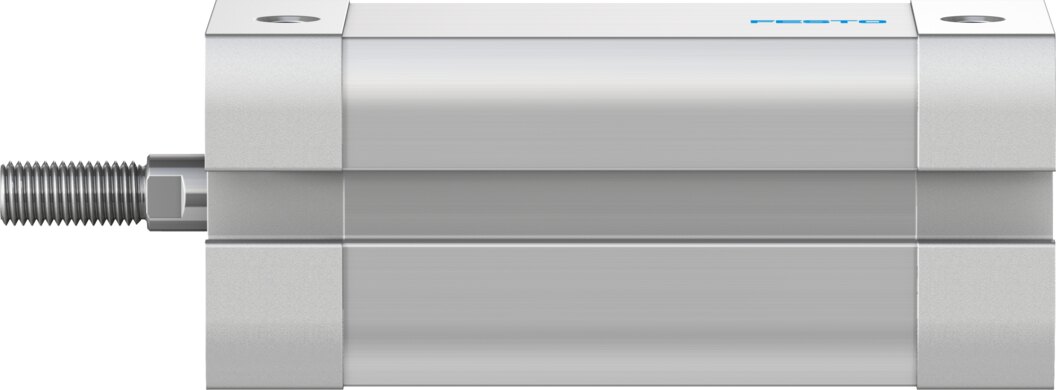

Double-acting compact cylinder Ø 125 mm stroke 50 mm ADN-125-50-A-P-A - Festo 552091

Ø 125 mm piston, 50 mm stroke: the double-acting compact cylinder ADN-125-50-A-P-A from the ADN series is the Festo version with part number 552091. According to type code ADN-125-50-A-P-A, the cylinder is prepared for end-position sensing with proximity switches. Being double-acting, the Ø 125 mm piston is driven by compressed air in both directions.

Benefits

• Piston Ø 125 mm, stroke 50 mm
• Cushioning P: elastic rings at both ends
• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 3.6 kg

Applications

In handling and fixture construction the cylinder moves parts over 50 mm, for example as an ejector, pusher or lifting unit.
