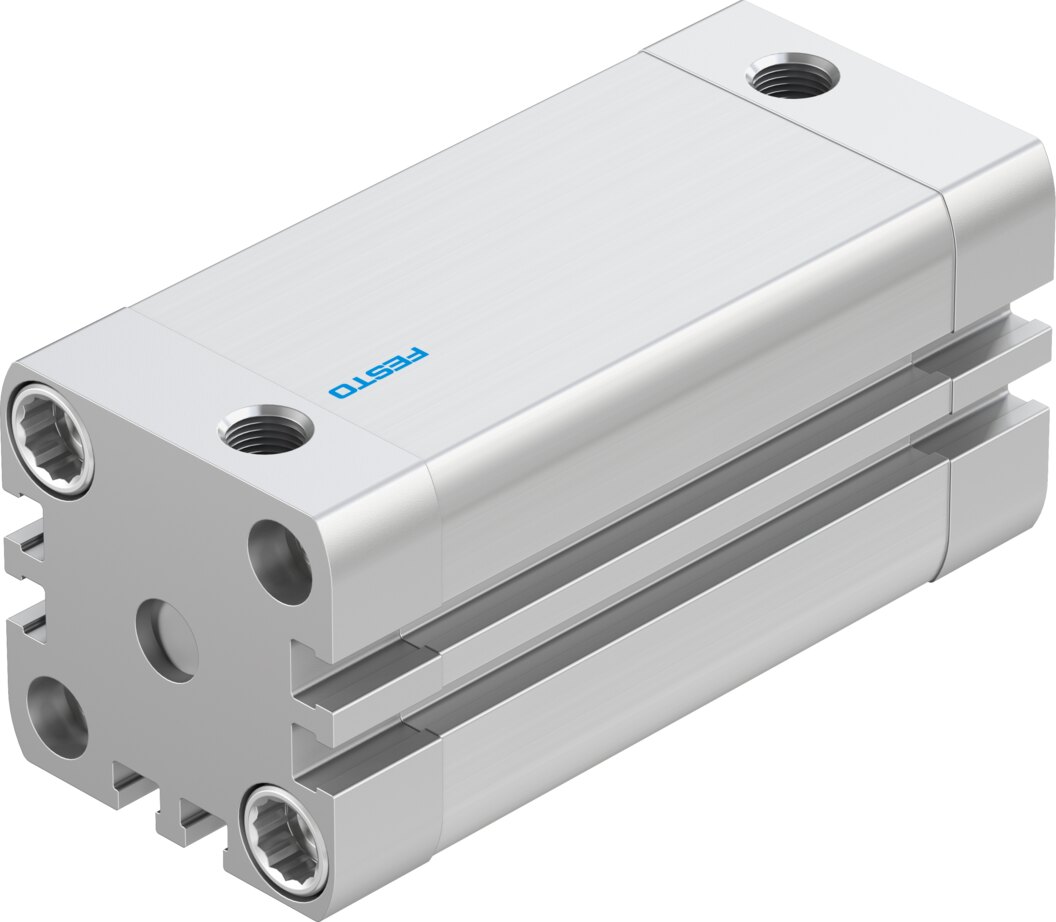

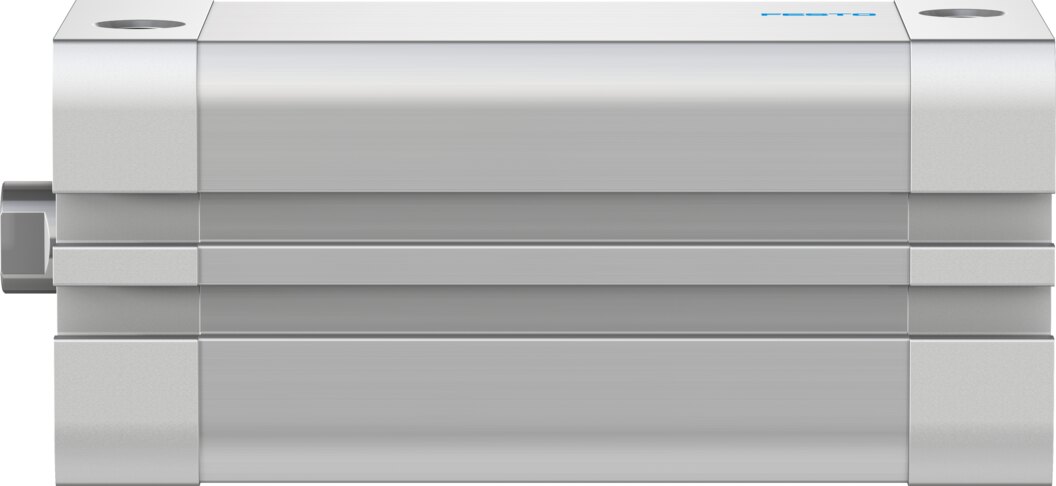

Compact cylinder double-acting Ø 32 mm stroke 70 mm ADN-32-70-I-P-A - Festo 8173462

The Festo ADN-32-70-I-P-A is a double-acting compact cylinder with a 32 mm piston and 70 mm stroke. At 6 bar it reaches 483 N advance and 415 N return force.

Key benefits

• Double-acting: 483 N on advance, 415 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.4 J
• Position sensing: prepared for proximity switches, port G1/8
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M8
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B1/B2-L

Applications

Typical tasks for the ADN-32-70-I-P-A are clamping, aligning, stopping and pushing out in assembly and test stations. For mounting, the ADN-32-70-I-P-A uses through-holes, female threads or Festo accessories, air port G1/8. According to Festo the product weight is 446 g.
