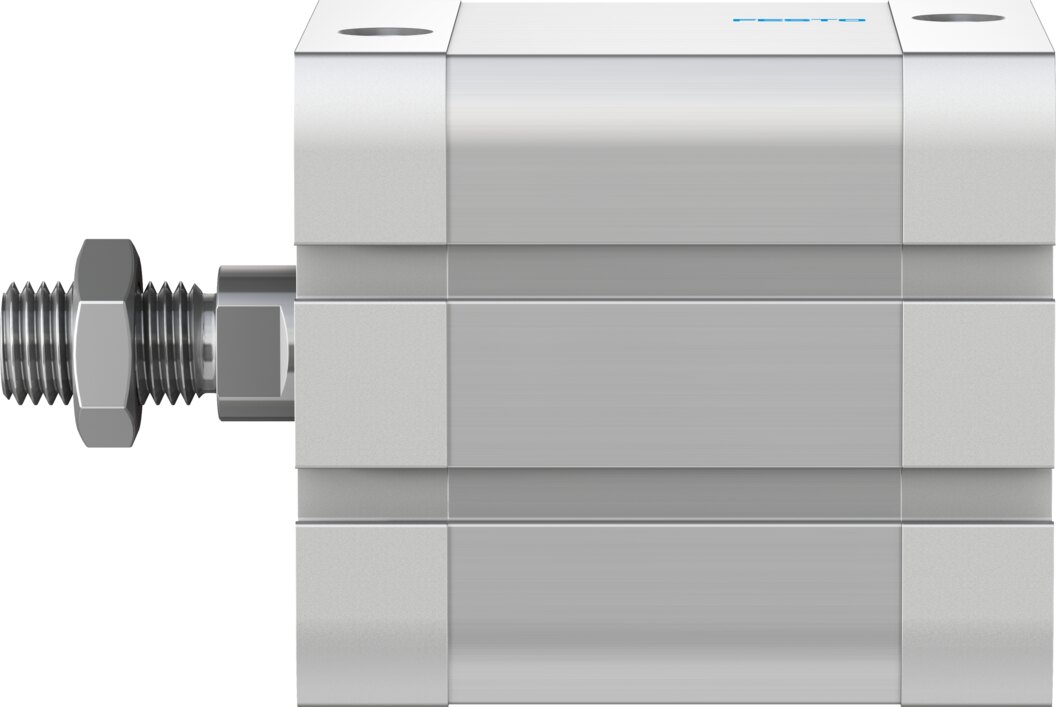

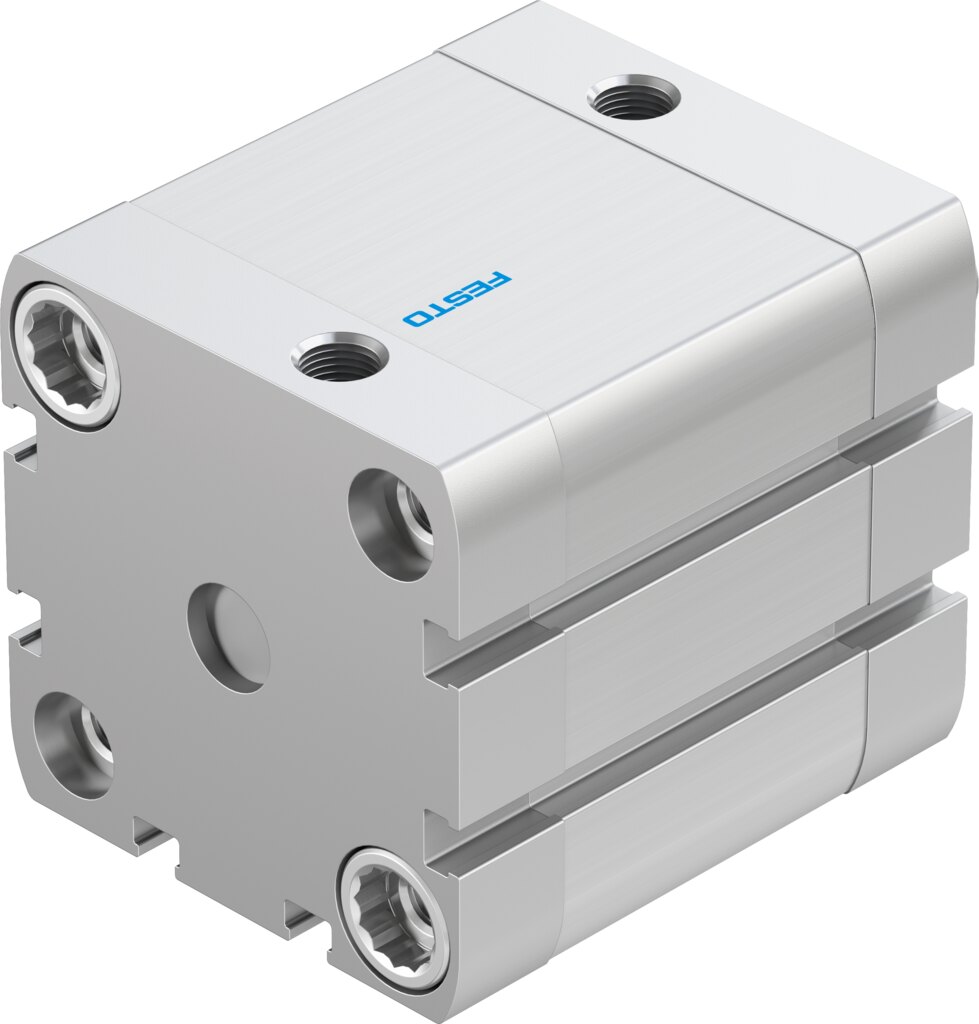

Double-acting compact cylinder Ø 50 mm stroke 100 mm ADN-50-100-A-P-A - Festo 563115

The Festo compact cylinder ADN-50-100-A-P-A moves its load over a 100 mm stroke, the piston measures Ø 50 mm. According to type code ADN-50-100-A-P-A, the cylinder is prepared for end-position sensing with proximity switches. Being double-acting, the Ø 50 mm piston is driven by compressed air in both directions.

Benefits at a glance

• Piston Ø 50 mm, stroke 100 mm
• Elastic end-position cushioning P at both ends
• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 1 kg

Use

In handling and fixture construction the cylinder moves parts over 100 mm, for example as an ejector, pusher or lifting unit.
