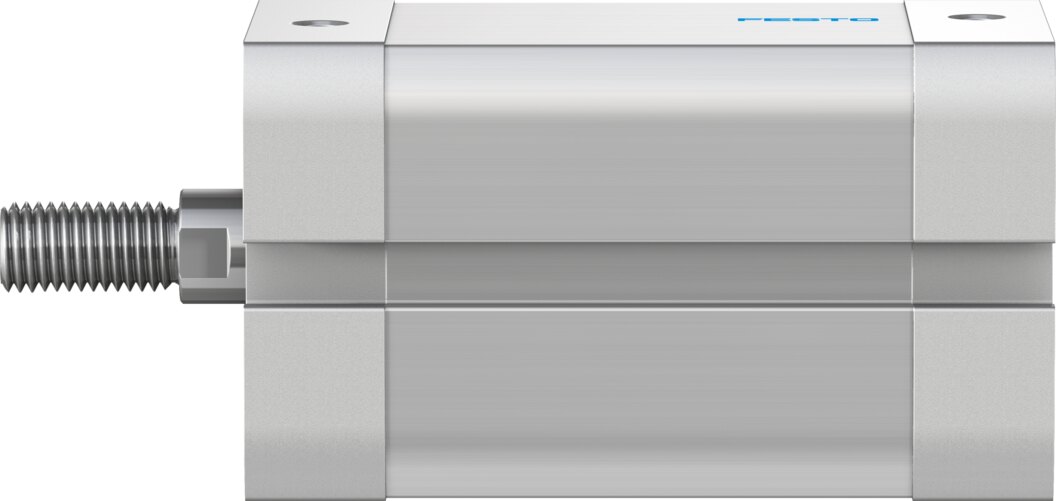

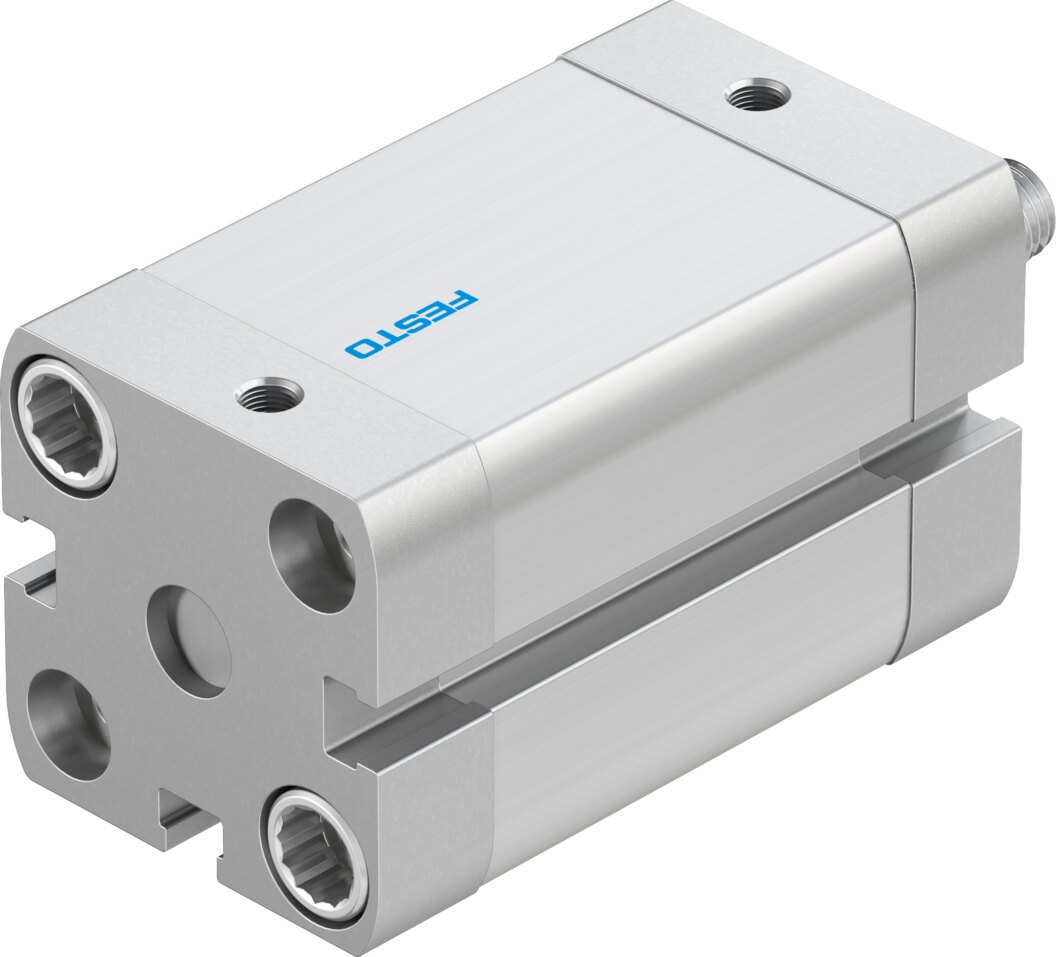

Double-acting compact cylinder Ø 25 mm stroke 100 mm ADN-25-100-A-P-A-S1 - Festo 594948

Ø 25 mm piston, 100 mm stroke: the double-acting compact cylinder ADN-25-100-A-P-A-S1 from the ADN series is the Festo version with part number 594948. The letter A after the cushioning code in type ADN-25-100-A-P-A-S1 stands for position detection via proximity switches. Compressed air drives the piston both ways, so advance and return over 100 mm are powered.

Benefits at a glance

• Piston Ø 25 mm, stroke 100 mm
• Elastic end-position cushioning P at both ends
• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 0.43 kg

Use

In handling and fixture construction the cylinder moves parts over 100 mm, for example as an ejector, pusher or lifting unit.
