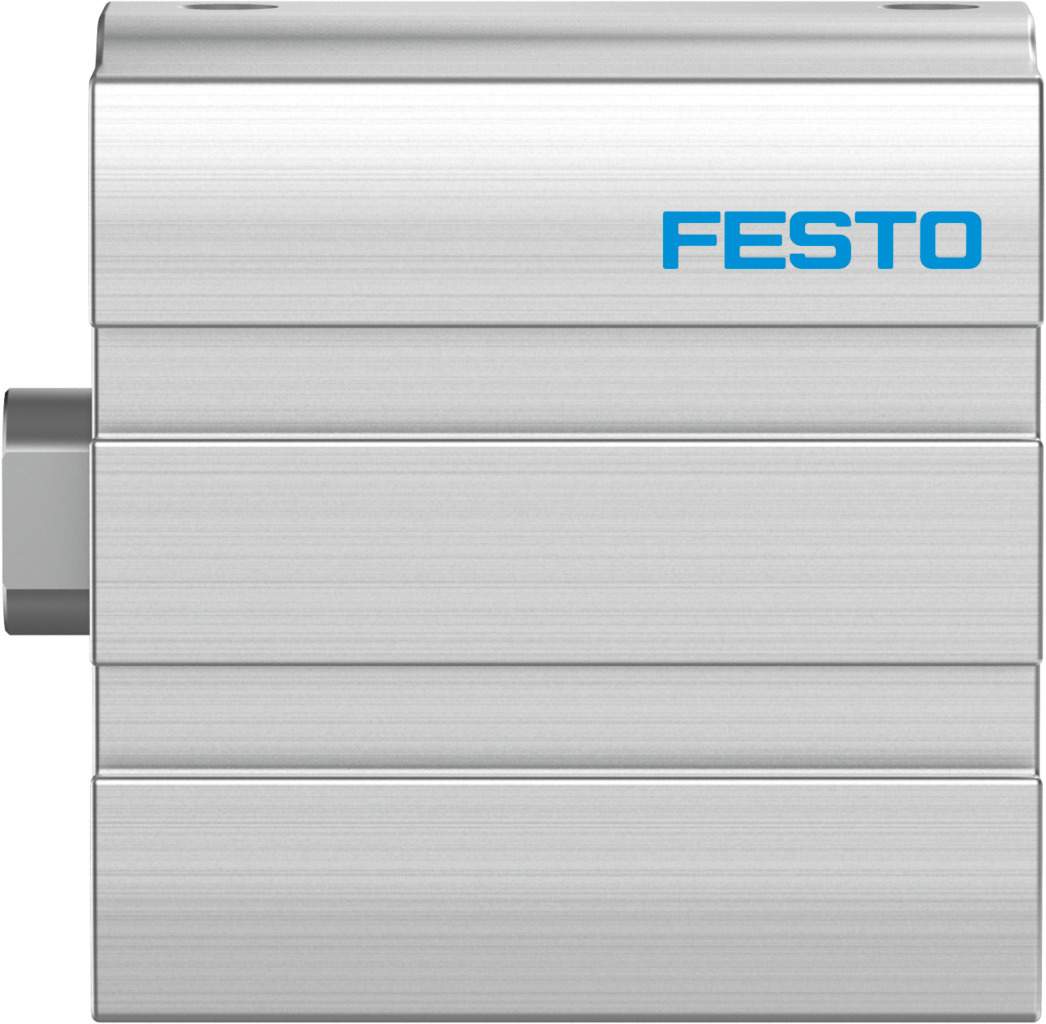

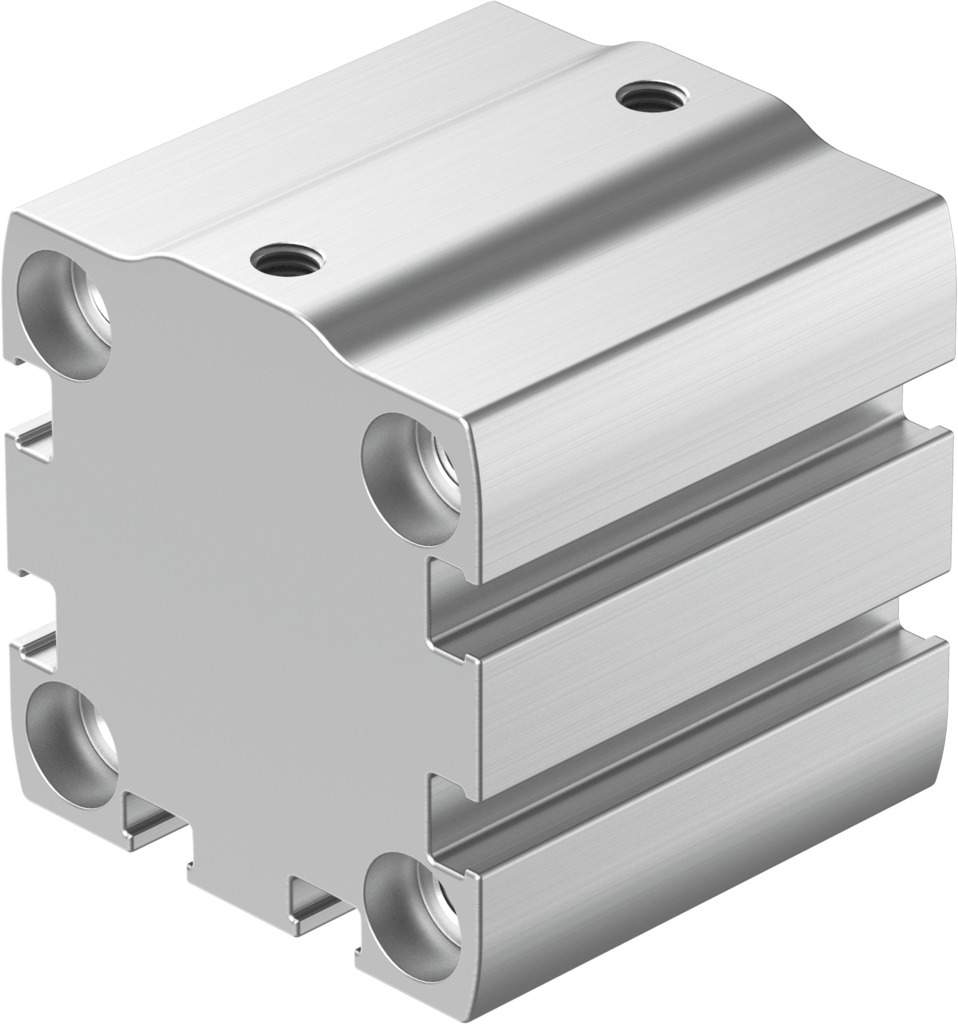

Compact cylinder double-acting Ø 32 mm stroke 10 mm ADN-S-32-10-I-P-A - Festo 8076381

The Festo ADN-S-32-10-I-P-A is a double-acting compact cylinder with a 32 mm piston and 10 mm stroke. At 6 bar it reaches 483 N advance and 415 N return force.

Benefits

• Easy sizing: 483 N forward and 415 N back at 6 bar according to Festo
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.4 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

The ADN-S-32-10-I-P-A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. The short 10 mm stroke keeps cycle times short and air consumption low. The 32 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread. For sizing, Festo states 117 g basic weight and 37 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
