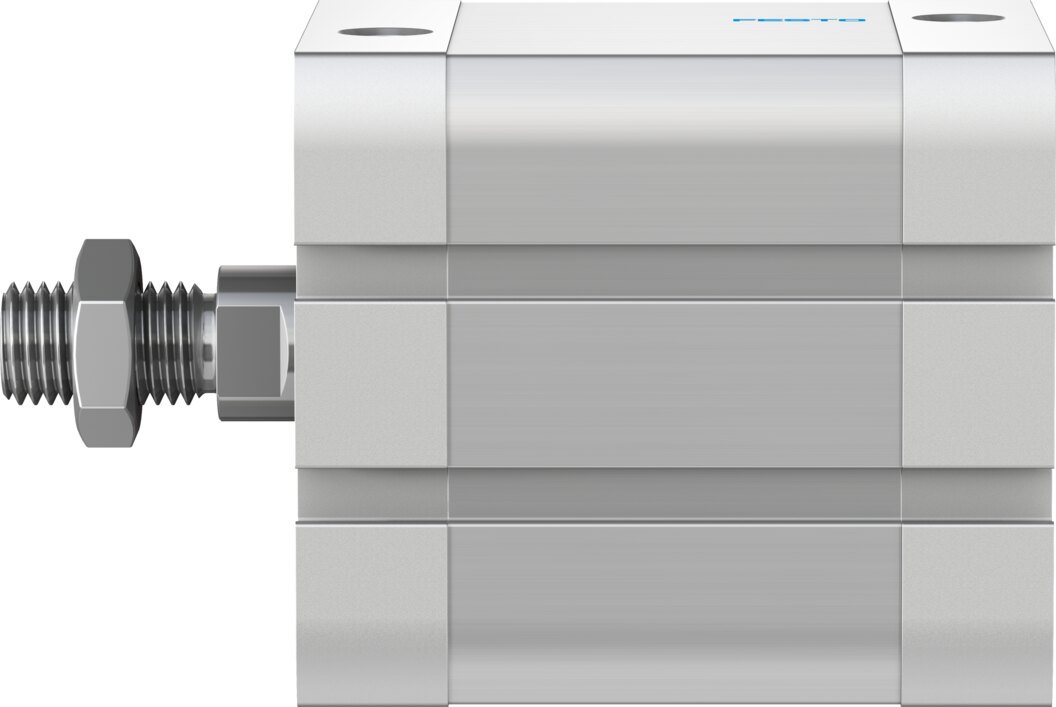

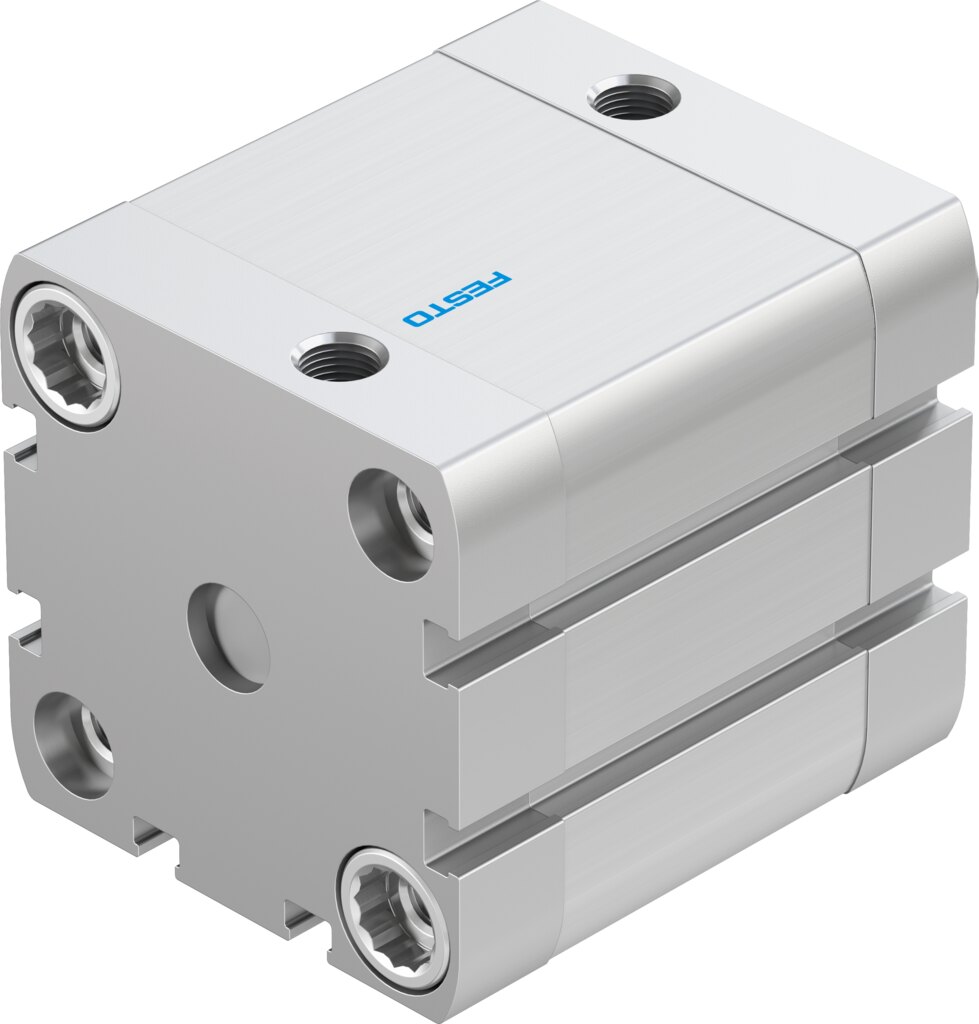

Double-acting compact cylinder Ø 50 mm stroke 27 mm ADN-50-27-A-P-A - Festo 563083

The Festo compact cylinder ADN-50-27-A-P-A moves its load over a 27 mm stroke, the piston measures Ø 50 mm. The letter A after the cushioning code in type ADN-50-27-A-P-A stands for position detection via proximity switches. Compressed air drives the piston both ways, so advance and return over 27 mm are powered.

Benefits at a glance

• Piston Ø 50 mm, stroke 27 mm
• Elastic end-position cushioning P at both ends
• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 0.65 kg

Use

The ADN-50-27-A-P-A handles pushing, lifting and ejecting movements over 27 mm in assembly systems, packaging machines and feeding equipment.
