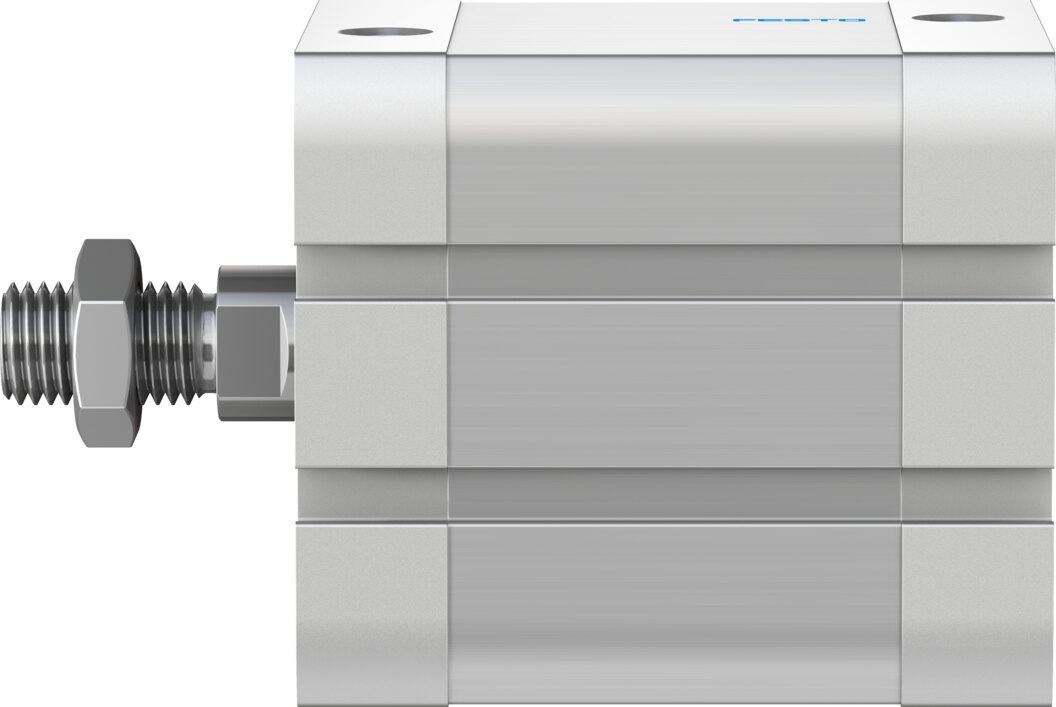

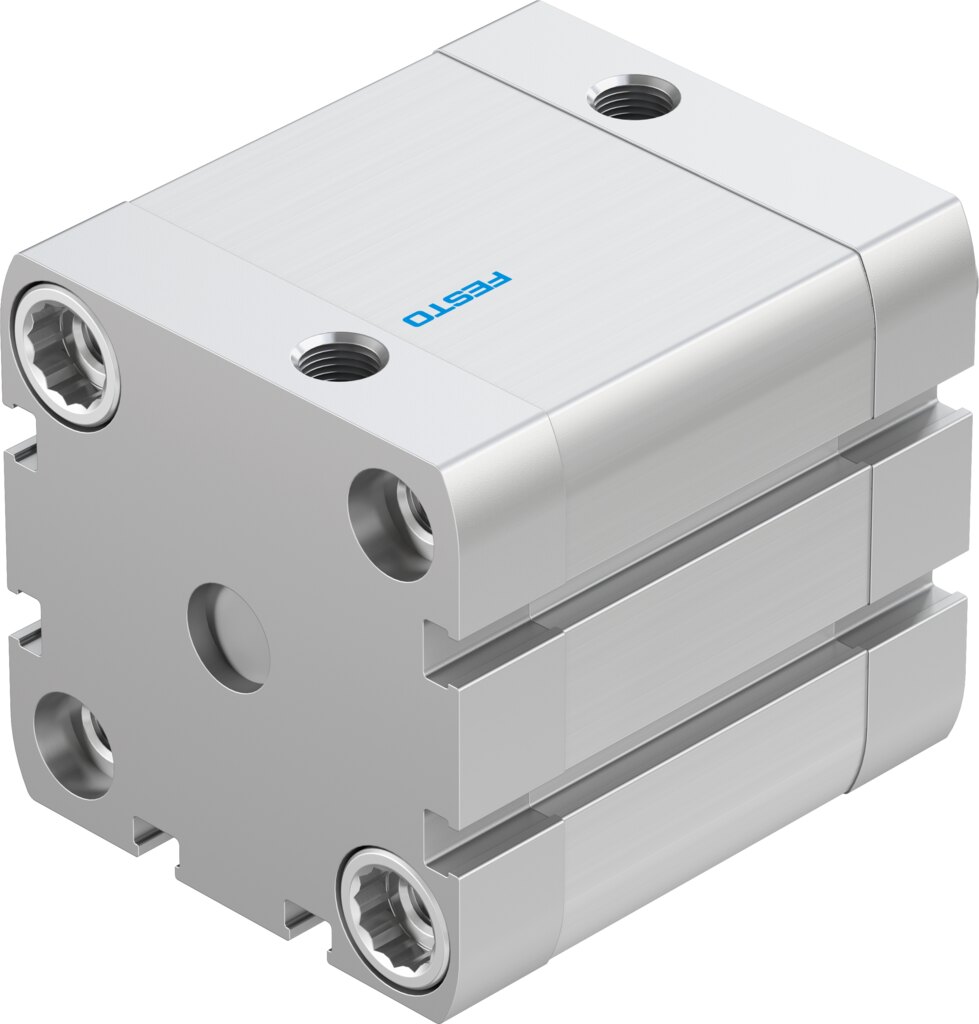

Compact cylinder double-acting Ø 50 mm stroke 180 mm ADN-50-180-A-P-A - Festo 610357

Where space in the stroke direction is short, the ADN-50-180-A-P-A fits in: double-acting compact cylinder, 50 mm piston, 180 mm stroke, 1178 N advance and 1057 N return force at 6 bar. The data below is derived from the type code ADN-50-180-A-P-A and Festo data of the ADN series with a 50 mm piston.

Benefits

• Force in both directions: theoretical 1178 N advance and 1057 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 1 J
• Sensor-ready: end positions detectable via proximity switch, air port G1/8
• Wide pressure range: 0.6 to 10 bar operating pressure
• Attachment: piston rod with male thread, 50 mm piston

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-50-180-A-P-A with a 50 mm diameter. With 180 mm stroke it also handles longer pushing and feed travel.
