Compact cylinder double-acting Ø 25 mm stroke 35 mm ADN-S-25-35-A-P-A-F1A - Festo 8142832

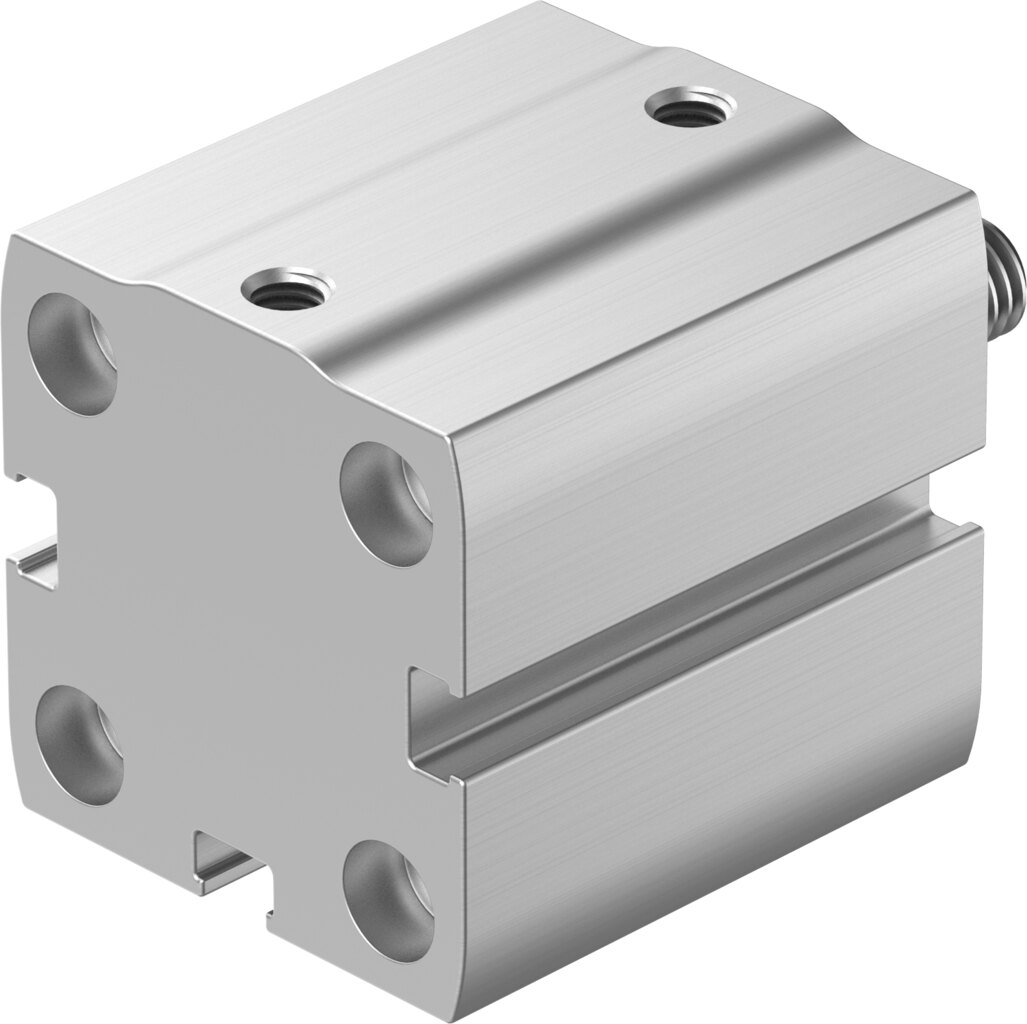

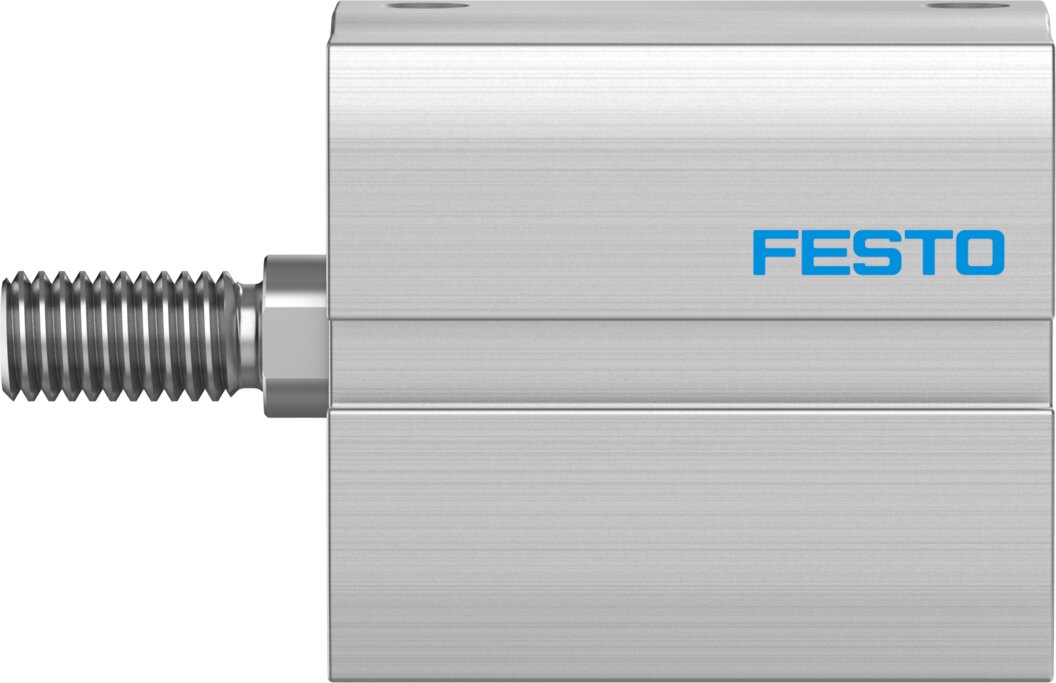

25 mm piston, 35 mm stroke, 295 N advance and 247 N return force at 6 bar: the double-acting compact cylinder ADN-S-25-35-A-P-A-F1A fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Double-acting: 295 N on advance, 247 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.3 J
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

The ADN-S-25-35-A-P-A-F1A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. Mounting via through-holes or female threads in the housing, attachments go on the piston rod with male thread of the ADN-S-25-35-A-P-A-F1A. For sizing, Festo states 88 g basic weight and 25 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
