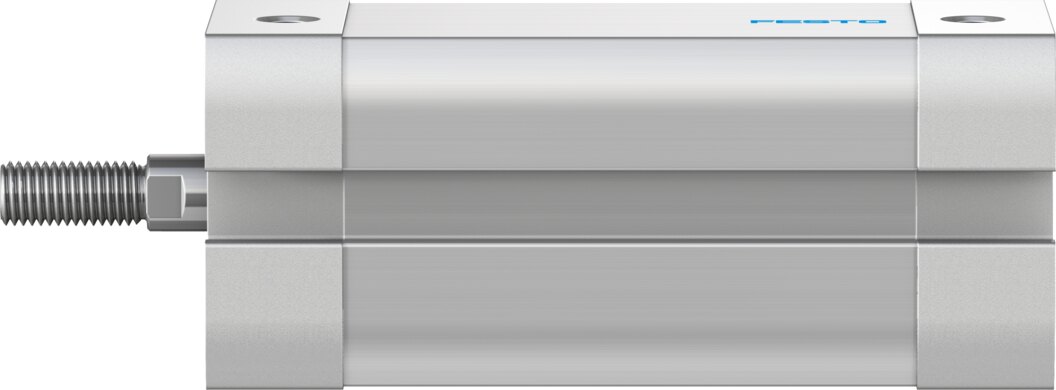

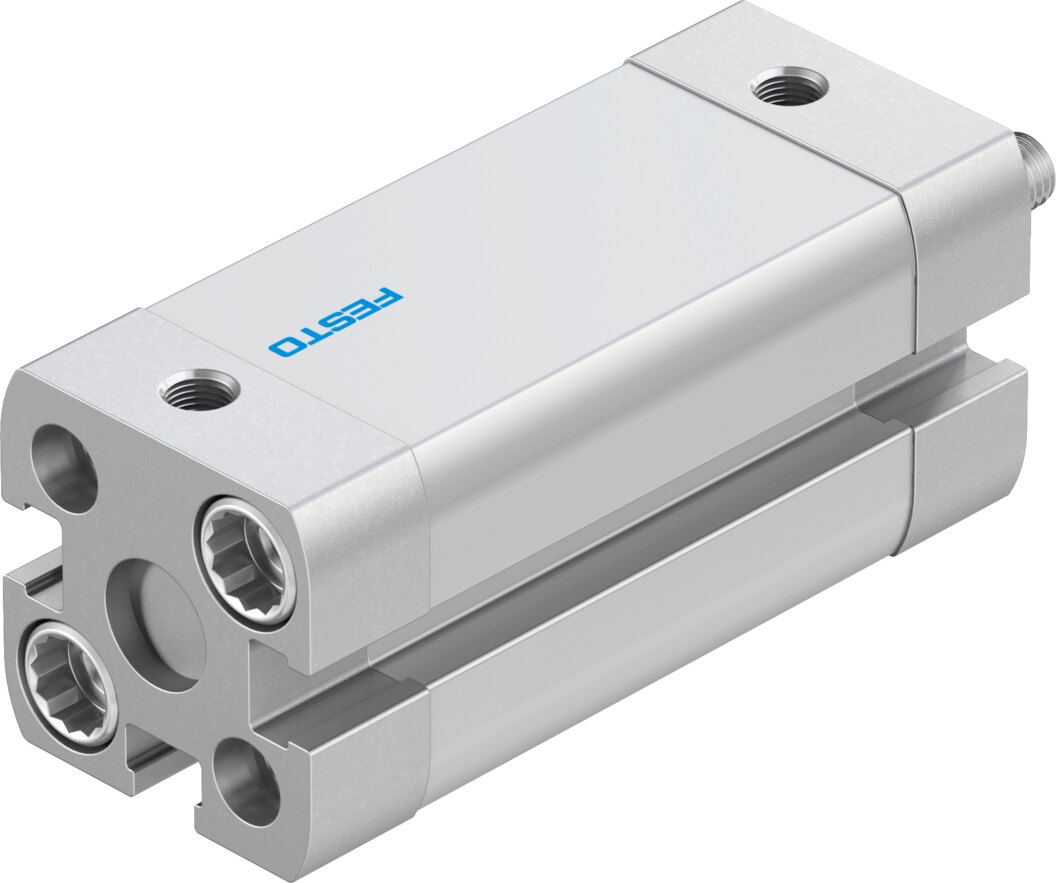

Double-acting compact cylinder Ø 12 mm stroke 135 mm ADN-12-135-A-P-A - Festo 579056

Ø 12 mm piston, 135 mm stroke: the double-acting compact cylinder ADN-12-135-A-P-A from the ADN series is the Festo version with part number 579056. The letter A after the cushioning code in type ADN-12-135-A-P-A stands for position detection via proximity switches. Compressed air drives the piston both ways, so advance and return over 135 mm are powered.

Key benefits

• Piston Ø 12 mm, stroke 135 mm
• Elastic end-position cushioning P at both ends
• Piston rod with male thread
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 0.23 kg

Typical applications

Typical tasks are ejecting, shifting and positioning workpieces over 135 mm, wherever a standard cylinder would be too long.
