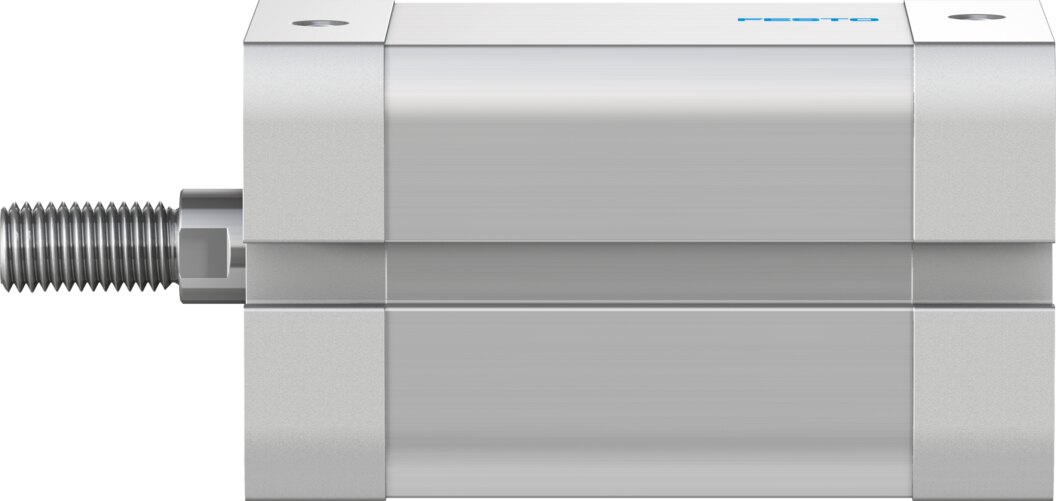

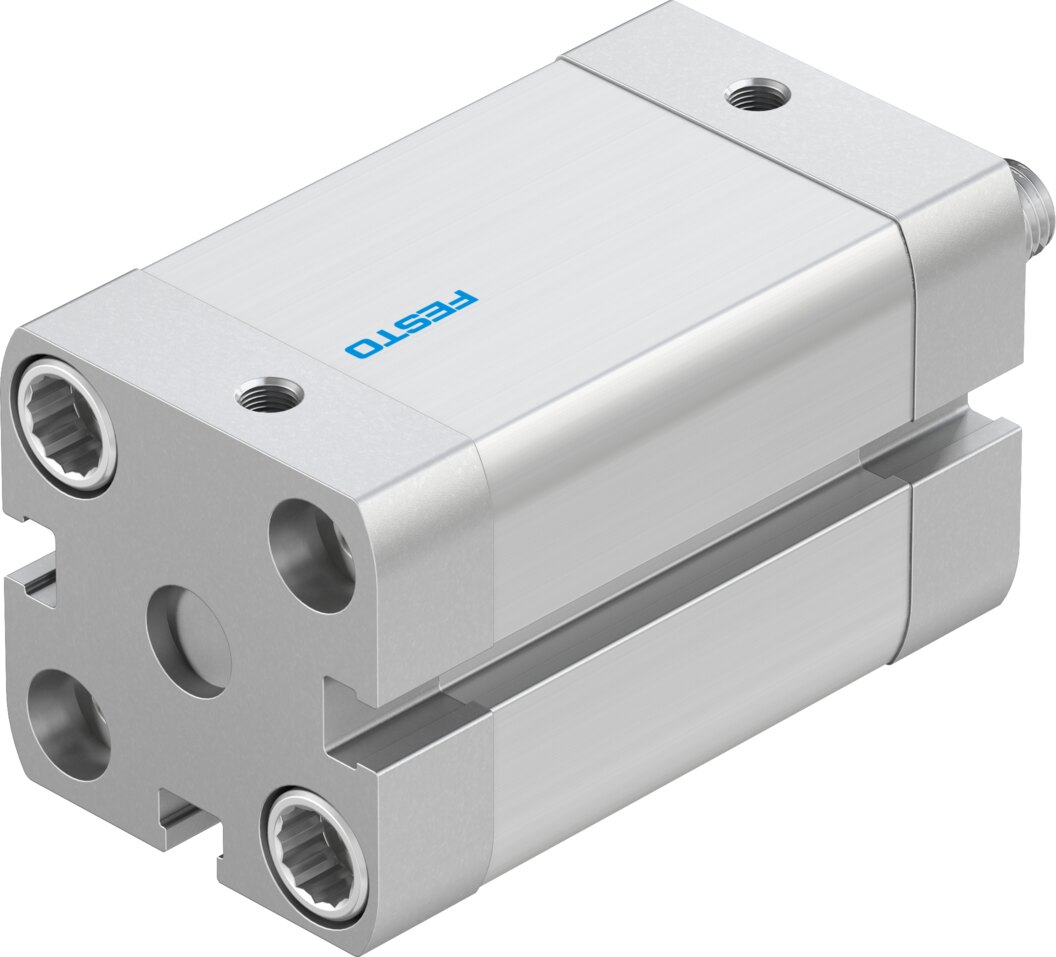

Compact cylinder double-acting Ø 25 mm stroke 45 mm ADN-25-45-I-P-A - Festo 607272

25 mm piston, 45 mm stroke, 295 N advance and 247 N return force at 6 bar: the double-acting compact cylinder ADN-25-45-I-P-A fits fixtures where a standard cylinder is too long. The data below is derived from the type code ADN-25-45-I-P-A and Festo data of the ADN series with a 25 mm piston.

Benefits

• Double-acting: 295 N on advance, 247 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.3 J in the end positions
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 0.6 to 10 bar
• Attachment: piston rod with female thread, 25 mm piston

Applications

The ADN-25-45-I-P-A works in fixtures, feeders and test stations as a clamping, stopping or pushing drive.
