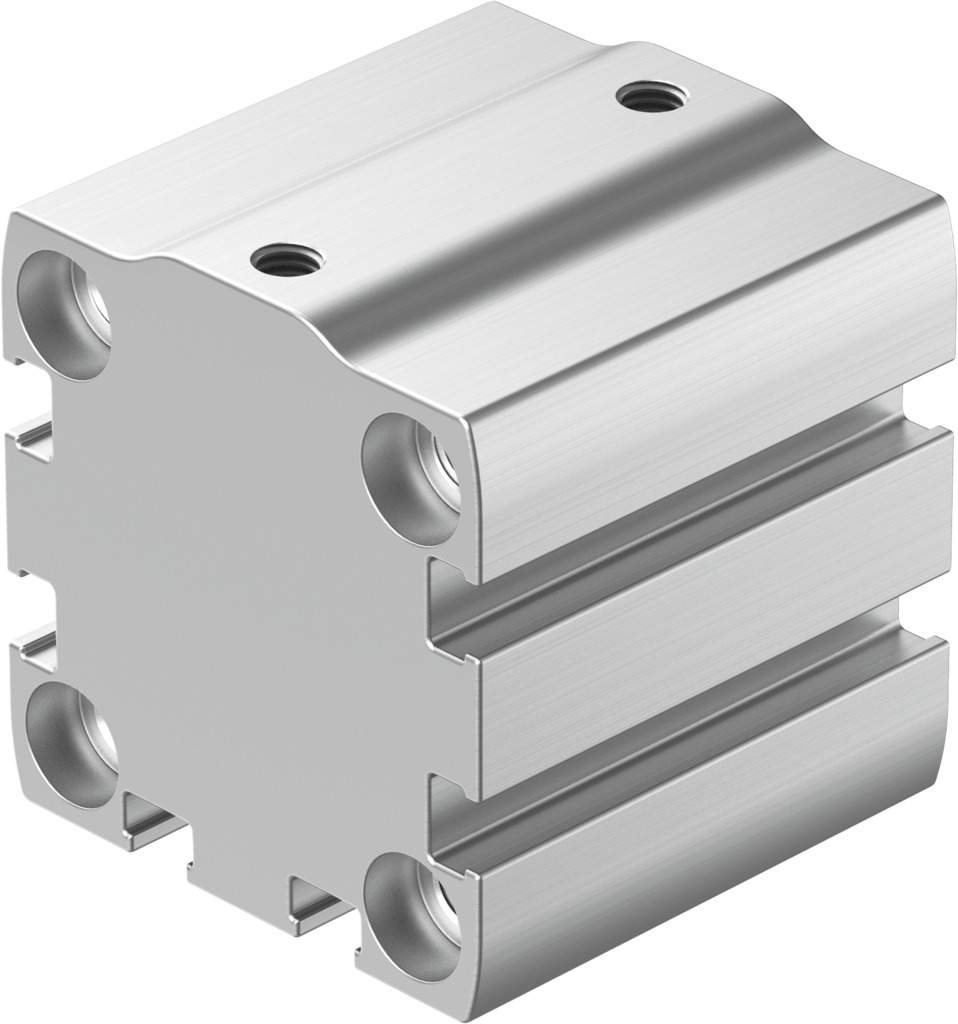

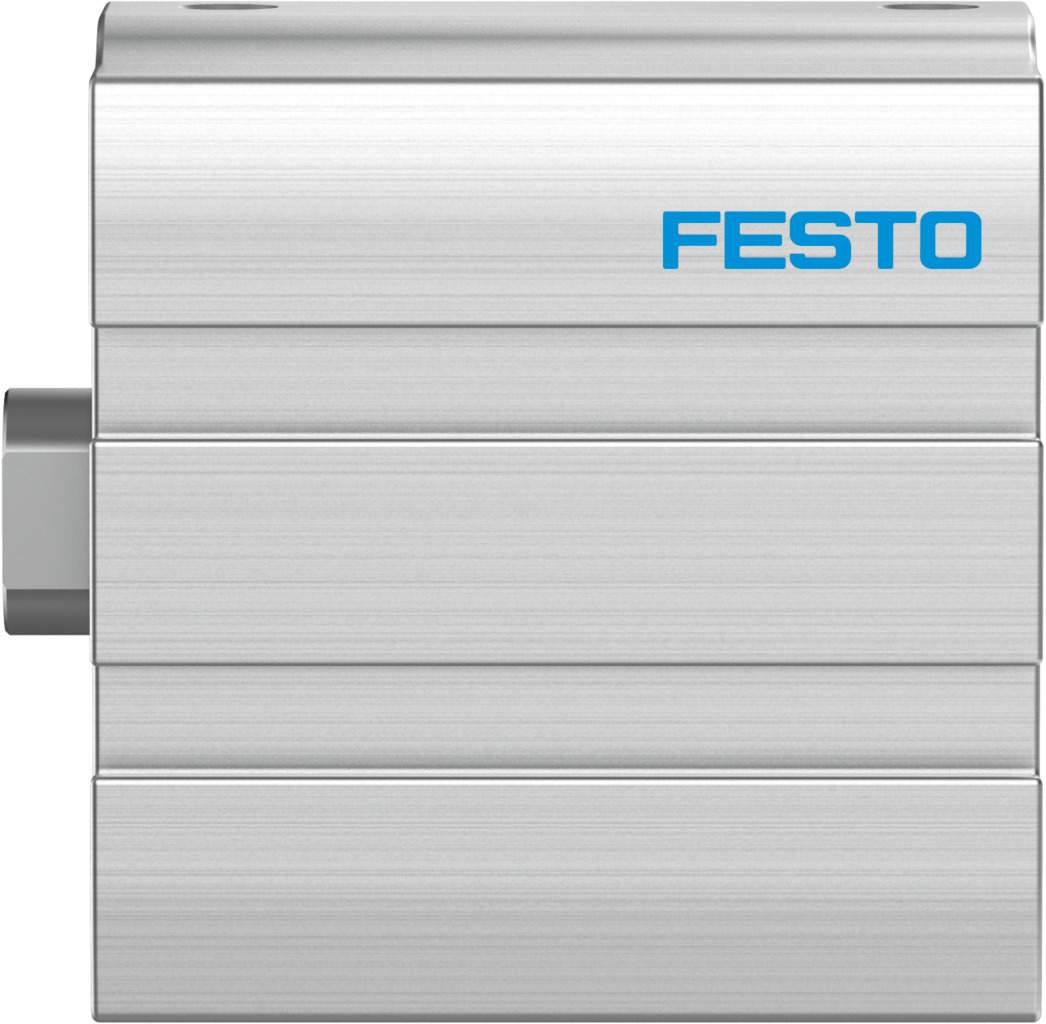

Compact cylinder double-acting Ø 32 mm stroke 20 mm ADN-S-32-20-I-P-A-F1A - Festo 8142849

Where space in the stroke direction is short, the ADN-S-32-20-I-P-A-F1A fits in: double-acting compact cylinder, 32 mm piston, 20 mm stroke, 483 N advance and 415 N return force at 6 bar.

Key benefits

• Double-acting: 483 N on advance, 415 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.4 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

Typical tasks for the ADN-S-32-20-I-P-A-F1A are clamping, aligning, stopping and pushing out in assembly and test stations. Mounting via through-holes or female threads in the housing, attachments go on the piston rod with female thread of the ADN-S-32-20-I-P-A-F1A. For sizing, Festo states 117 g basic weight and 37 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
