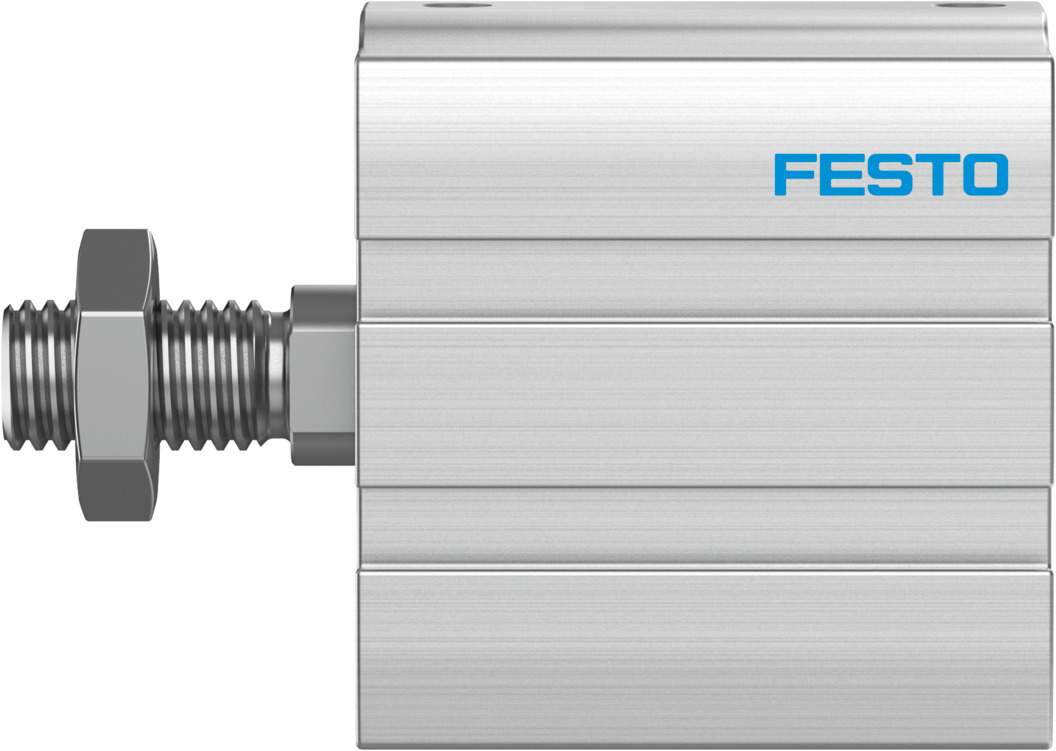

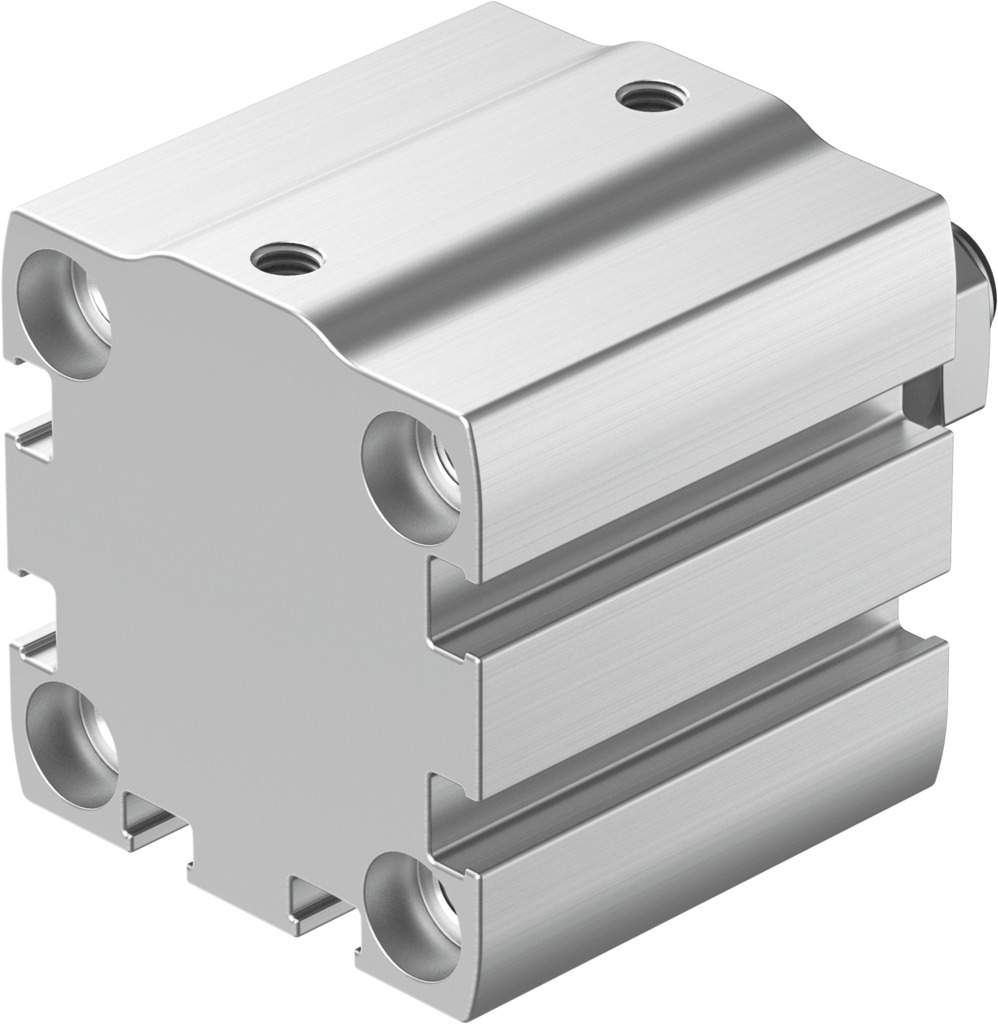

Compact cylinder double-acting Ø 32 mm stroke 35 mm ADN-S-32-35-A-P-A - Festo 8091463

32 mm piston, 35 mm stroke, 483 N advance and 415 N return force at 6 bar: the double-acting compact cylinder ADN-S-32-35-A-P-A fits fixtures where a standard cylinder is too long.

Benefits

• Double-acting: 483 N on advance, 415 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.4 J in the end positions
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

On assembly lines the ADN-S-32-35-A-P-A with a 32 mm diameter handles clamping, stopping and positioning tasks. Mounting via through-holes, female threads or Festo accessories, attachments go on the piston rod with male thread of the ADN-S-32-35-A-P-A. For sizing, Festo states 117 g basic weight and 37 g moving mass at 0 mm stroke, plus 36 g and 9 g respectively per 10 mm stroke.
