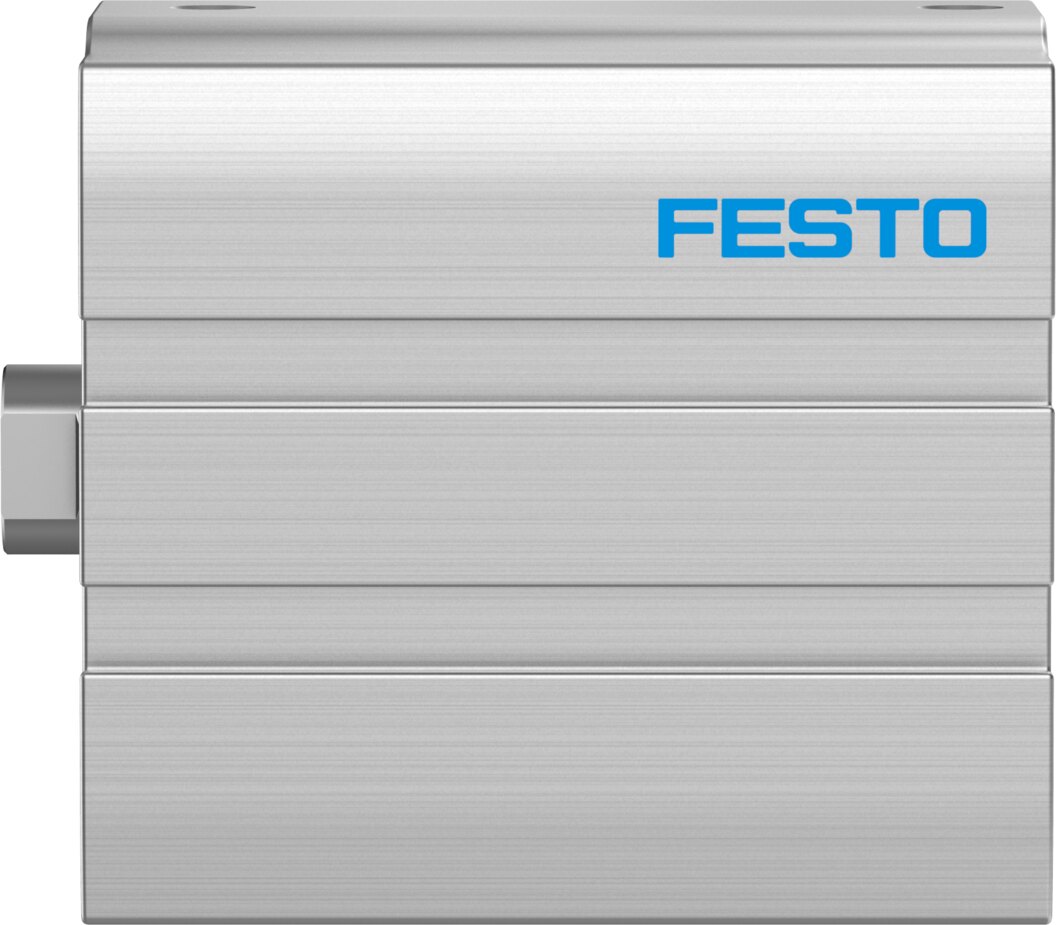

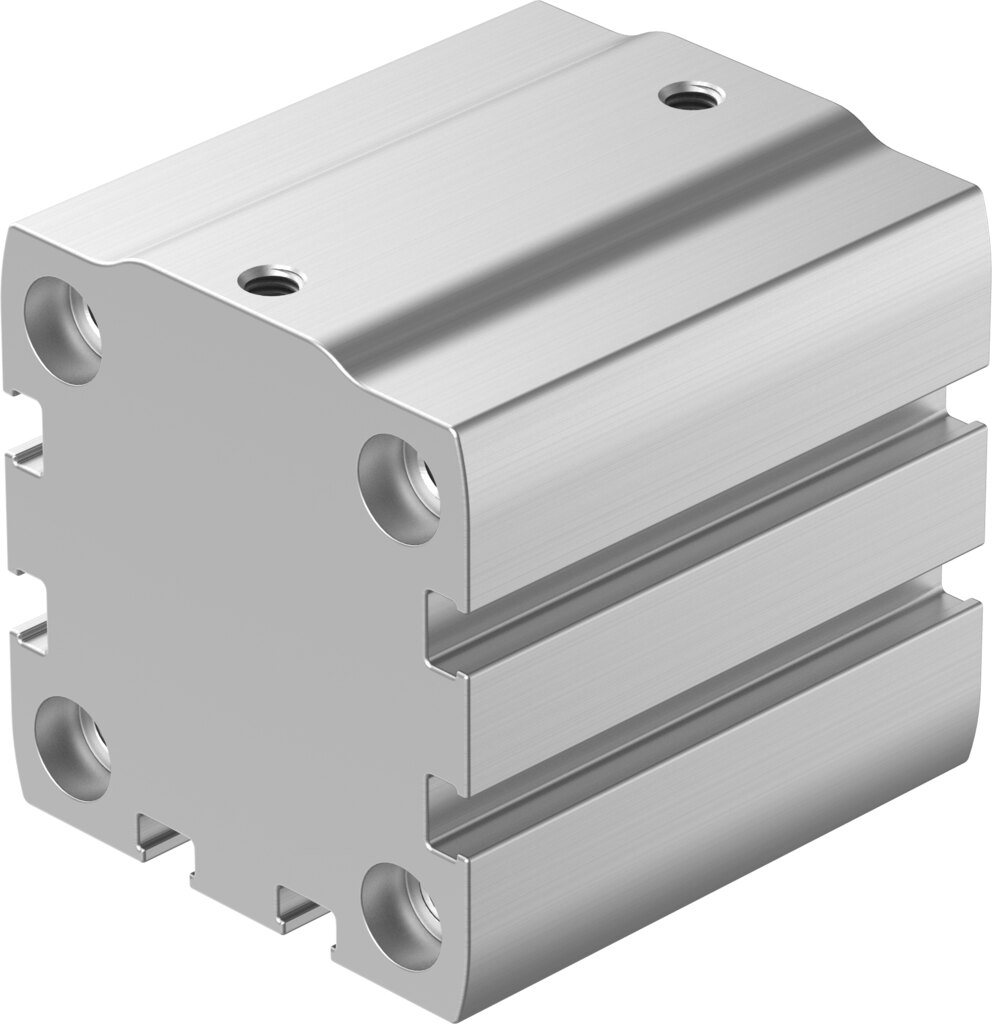

Compact cylinder double-acting Ø 40 mm stroke 5 mm ADN-S-40-5-I-P-A-F1A - Festo 8142876

Where space in the stroke direction is short, the ADN-S-40-5-I-P-A-F1A fits in: double-acting compact cylinder, 40 mm piston, 5 mm stroke, 754 N advance and 686 N return force at 6 bar.

Benefits at a glance

• Easy sizing: 754 N forward and 686 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.7 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

On assembly lines the ADN-S-40-5-I-P-A-F1A with a 40 mm diameter handles clamping, stopping and positioning tasks. The short 5 mm stroke keeps cycle times short and air consumption low. For mounting, the ADN-S-40-5-I-P-A-F1A uses through-holes or female threads in the housing, air port M5. For sizing, Festo states 304 g basic weight and 62 g moving mass at 0 mm stroke, plus 45 g and 9 g respectively per 10 mm stroke.
