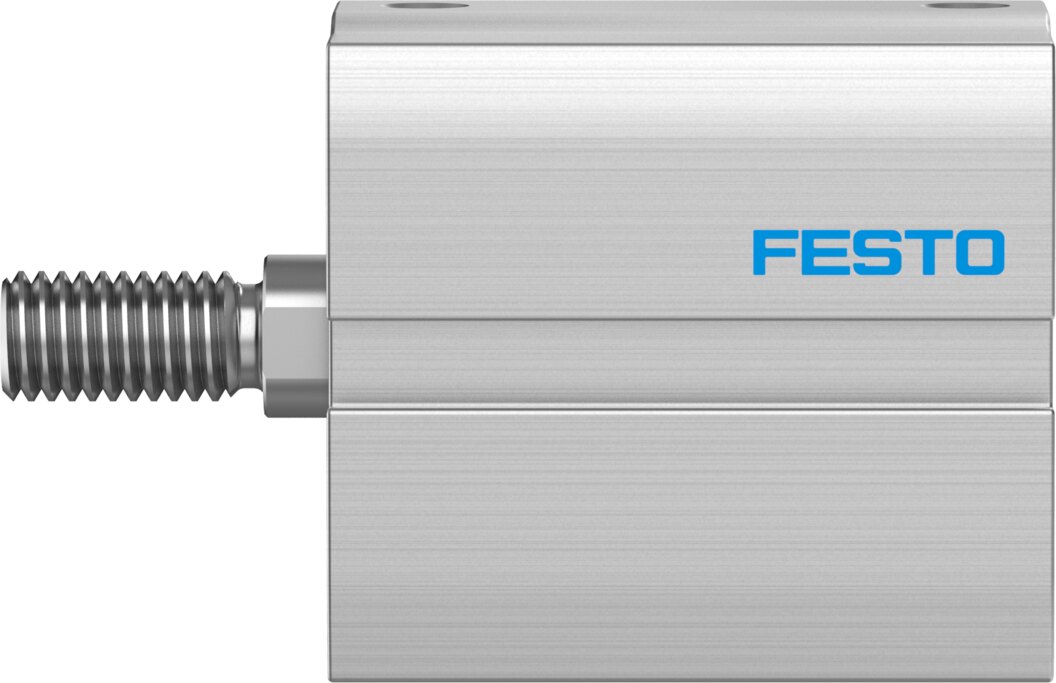

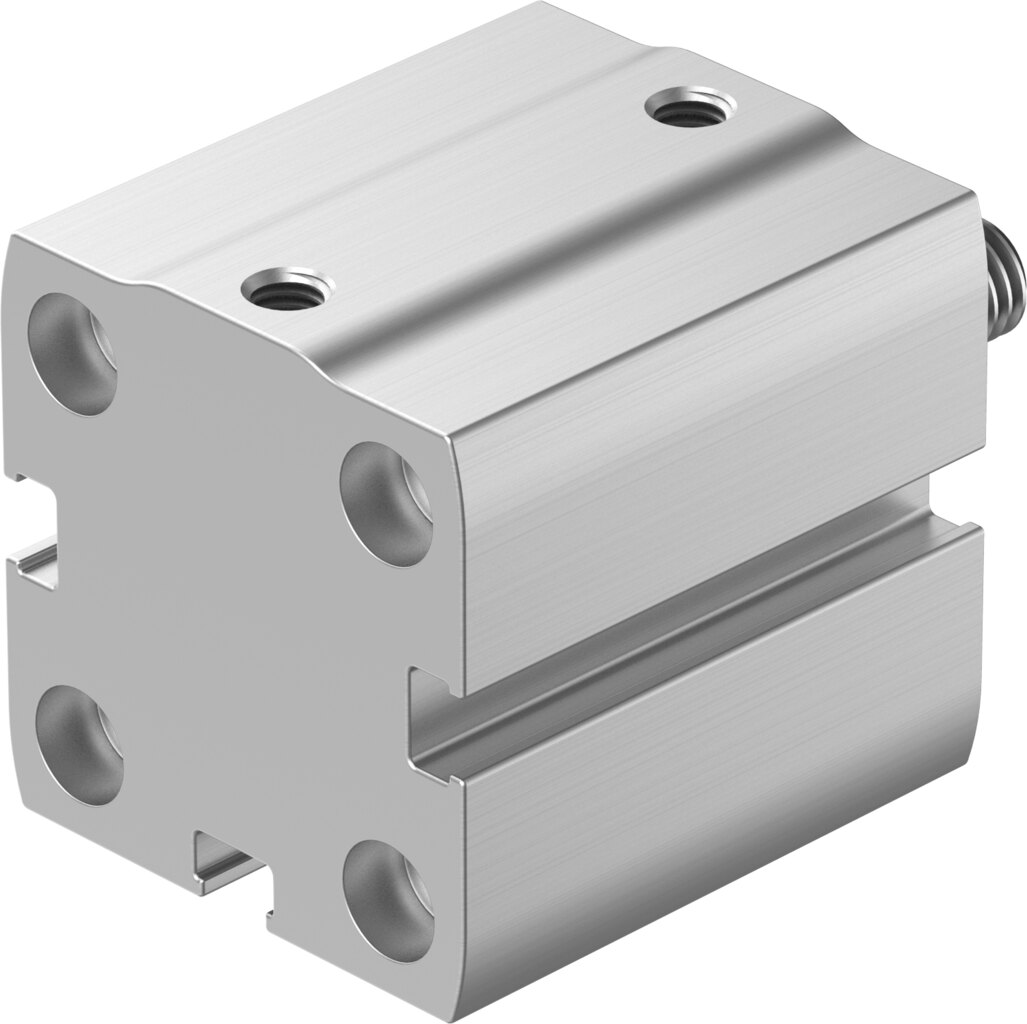

Compact cylinder double-acting Ø 25 mm stroke 5 mm ADN-S-25-5-A-P-A - Festo 8092104

The Festo ADN-S-25-5-A-P-A is a double-acting compact cylinder with a 25 mm piston and 5 mm stroke. At 6 bar it reaches 295 N advance and 247 N return force.

Key benefits

• Force in both directions: theoretical 295 N advance and 247 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.3 J
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

On assembly lines the ADN-S-25-5-A-P-A with a 25 mm diameter handles clamping, stopping and positioning tasks. The short 5 mm stroke keeps cycle times short and air consumption low. For mounting, the ADN-S-25-5-A-P-A uses through-holes, female threads or Festo accessories, air port M5. For sizing, Festo states 88 g basic weight and 25 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
