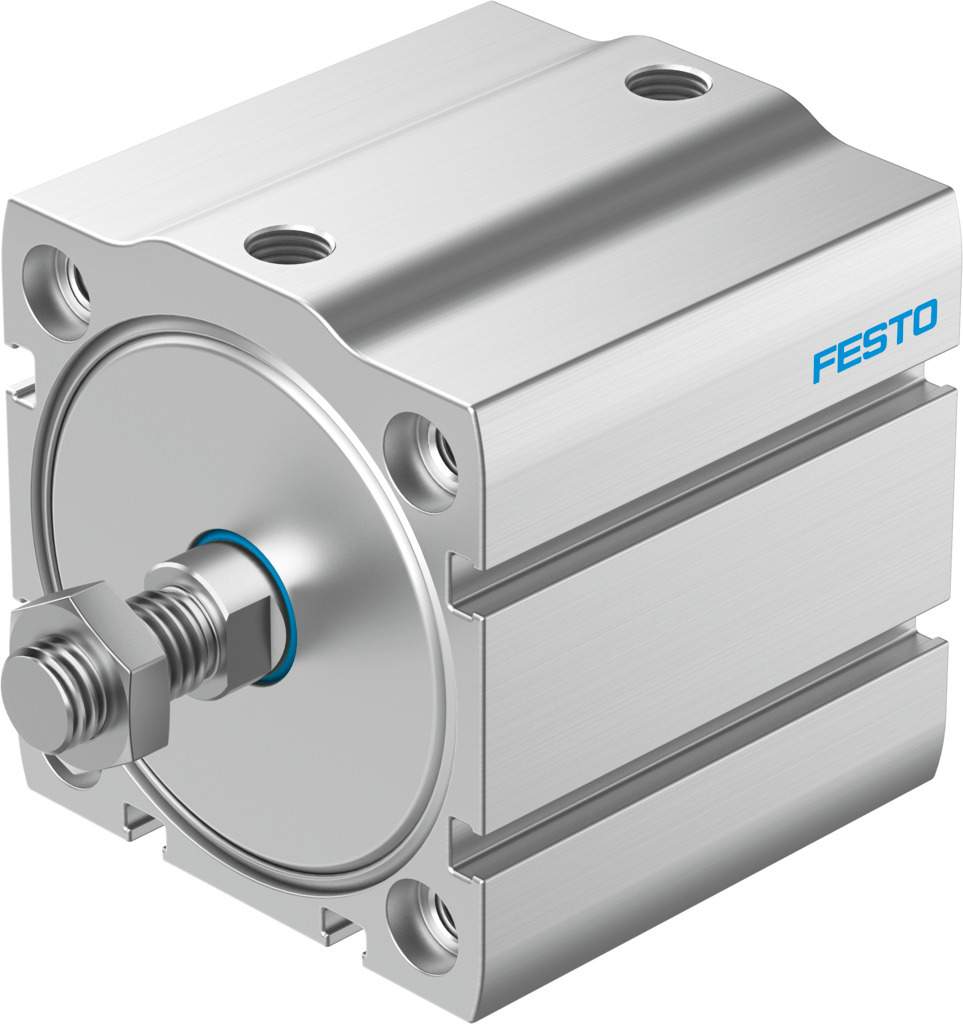

Double-acting compact cylinder Ø 125 mm stroke 80 mm ADN-125-80-A-P-A-R3 - Festo 593454

With an 80 mm stroke and a Ø 125 mm piston, the ADN compact cylinder ADN-125-80-A-P-A-R3 covers short linear movements. According to type code ADN-125-80-A-P-A-R3, the cylinder is prepared for end-position sensing with proximity switches. Being double-acting, the Ø 125 mm piston is driven by compressed air in both directions.

Benefits at a glance

• Piston Ø 125 mm, stroke 80 mm
• Elastic end-position cushioning P at both ends
• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions

Use

In handling and fixture construction the cylinder moves parts over 80 mm, for example as an ejector, pusher or lifting unit.
