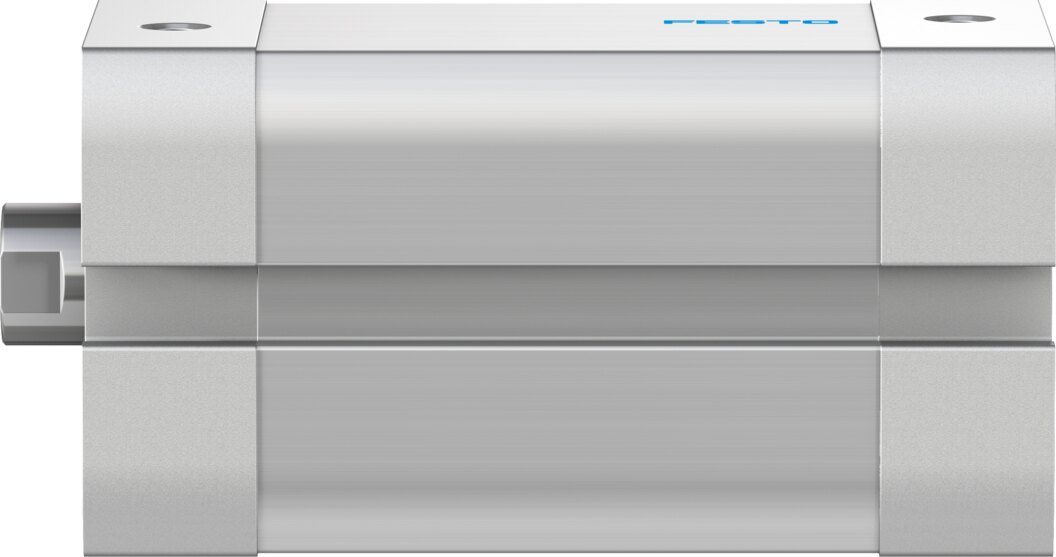

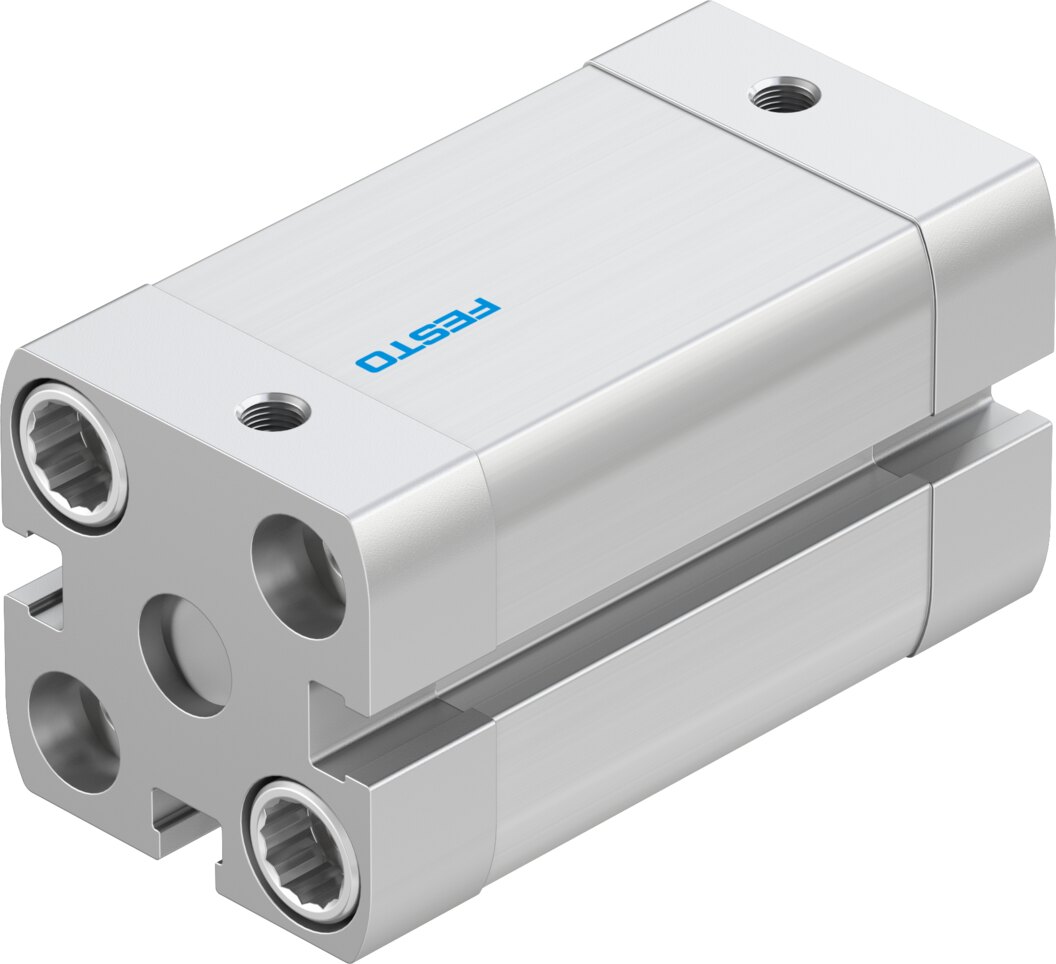

Compact cylinder double-acting Ø 20 mm stroke 35 mm PPS cushioning ADN-20-35-I-PPS-A - Festo 8178865

20 mm piston, 35 mm stroke, 188 N advance and 141 N return force at 6 bar: the double-acting compact cylinder ADN-20-35-I-PPS-A fits fixtures where a standard cylinder is too long.

Key benefits

• Force in both directions: theoretical 188 N advance and 141 N return at 6 bar
• Self-adjusting PPS cushioning: adapts to load and speed, impact energy 0.2 J in the end positions
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 1.5 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M6
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B1/B2-L

Applications

Typical tasks for the ADN-20-35-I-PPS-A are clamping, aligning, stopping and pushing out in assembly and test stations. The 20 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread M6. According to Festo the product weight is 205 g.
