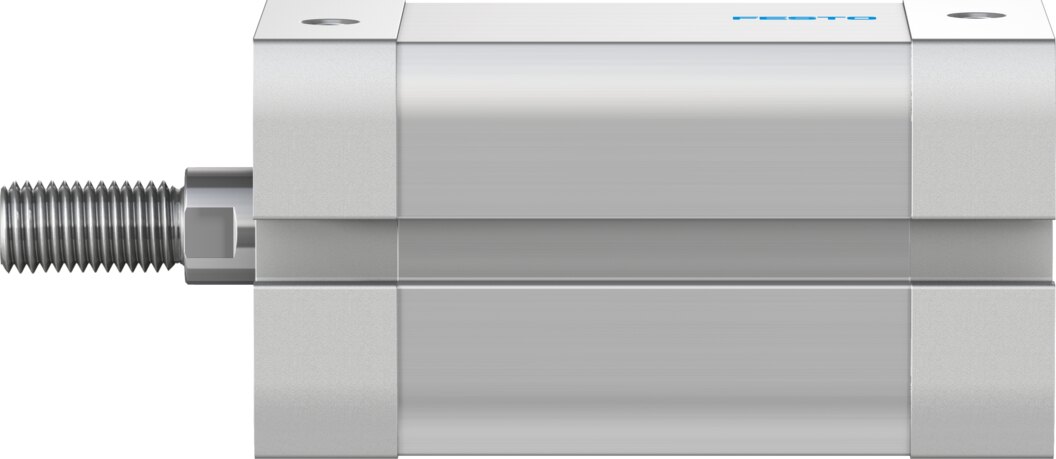

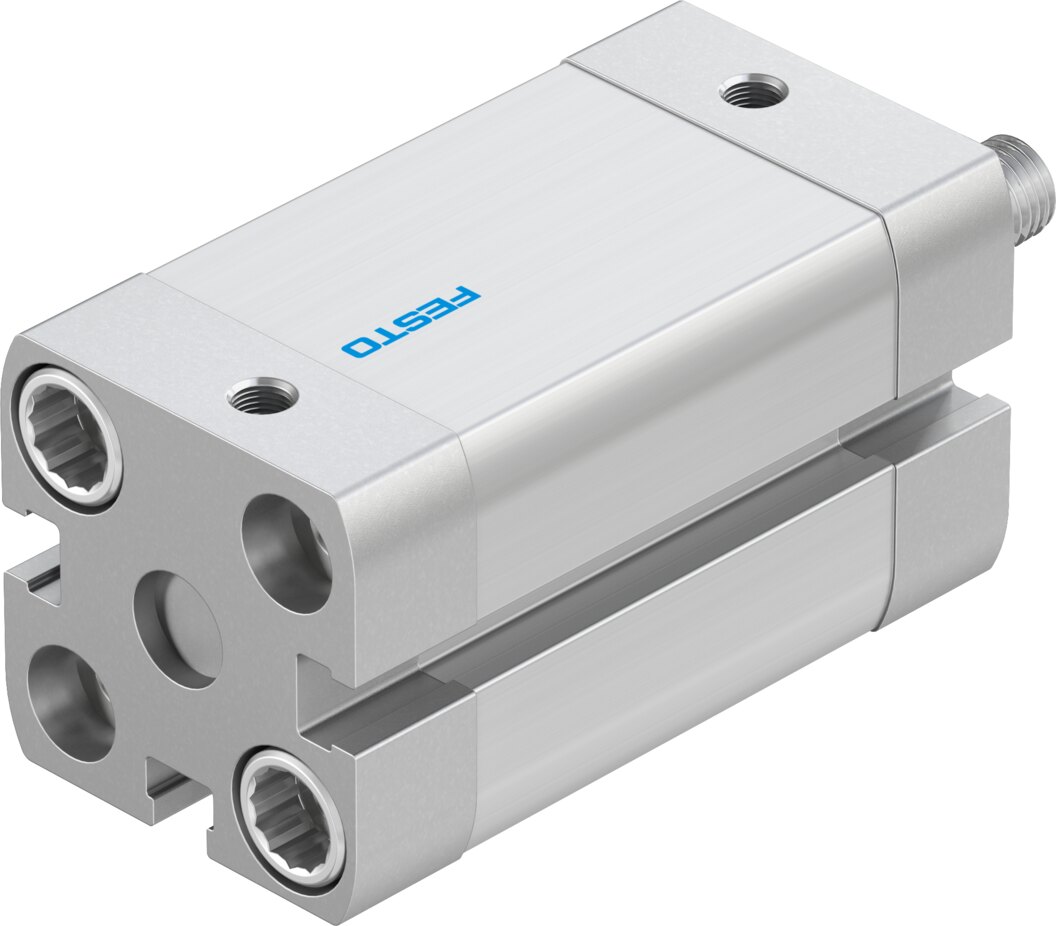

Double-acting compact cylinder Ø 20 mm stroke 200 mm ADN-20-200-I-P-A - Festo 595031

The Festo compact cylinder ADN-20-200-I-P-A moves its load over a 200 mm stroke, the piston measures Ø 20 mm. The piston rod with female thread takes the tooling or load. According to type code ADN-20-200-I-P-A, the cylinder is prepared for end-position sensing with proximity switches.

Benefits at a glance

• Piston Ø 20 mm, stroke 200 mm
• Elastic end-position cushioning P at both ends
• Piston rod with female thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 0.55 kg

Use

Typical tasks are ejecting, shifting and positioning workpieces over 200 mm, wherever a standard cylinder would be too long.
