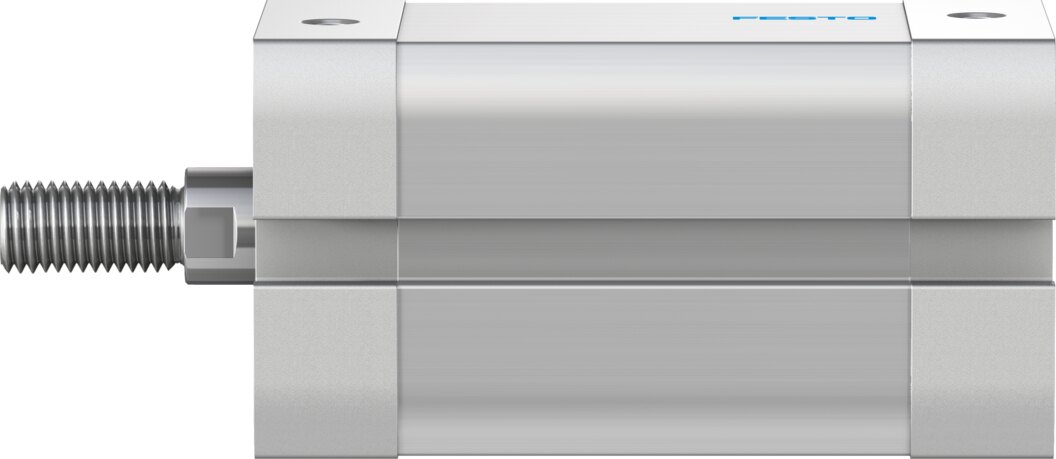

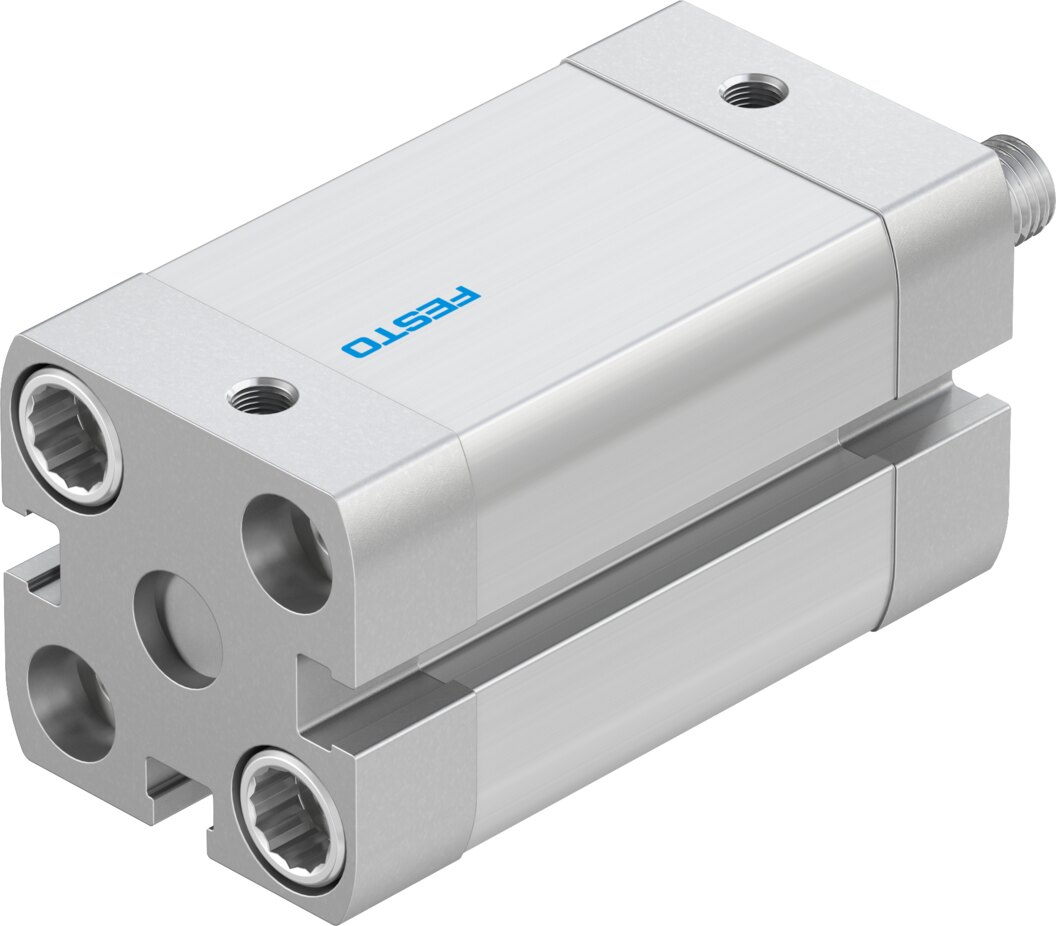

Compact cylinder double-acting Ø 20 mm stroke 125 mm PPS cushioning ADN-20-125-A-PPS-A-5K2-5K8 - Festo 610549

The Festo ADN-20-125-A-PPS-A-5K2-5K8 is a double-acting compact cylinder with a 20 mm piston and 125 mm stroke. The data below is derived from the type code ADN-20-125-A-PPS-A-5K2-5K8 and Festo data of the ADN series with a 20 mm piston.

Benefits

• Self-adjusting PPS cushioning: adapts to load and speed
• Position sensing: prepared for proximity switches
• Attachment: piston rod with male thread, 20 mm piston

Applications

The ADN-20-125-A-PPS-A-5K2-5K8 works in fixtures, feeders and test stations as a clamping, stopping or pushing drive. With 125 mm stroke it also handles longer pushing and feed travel.
