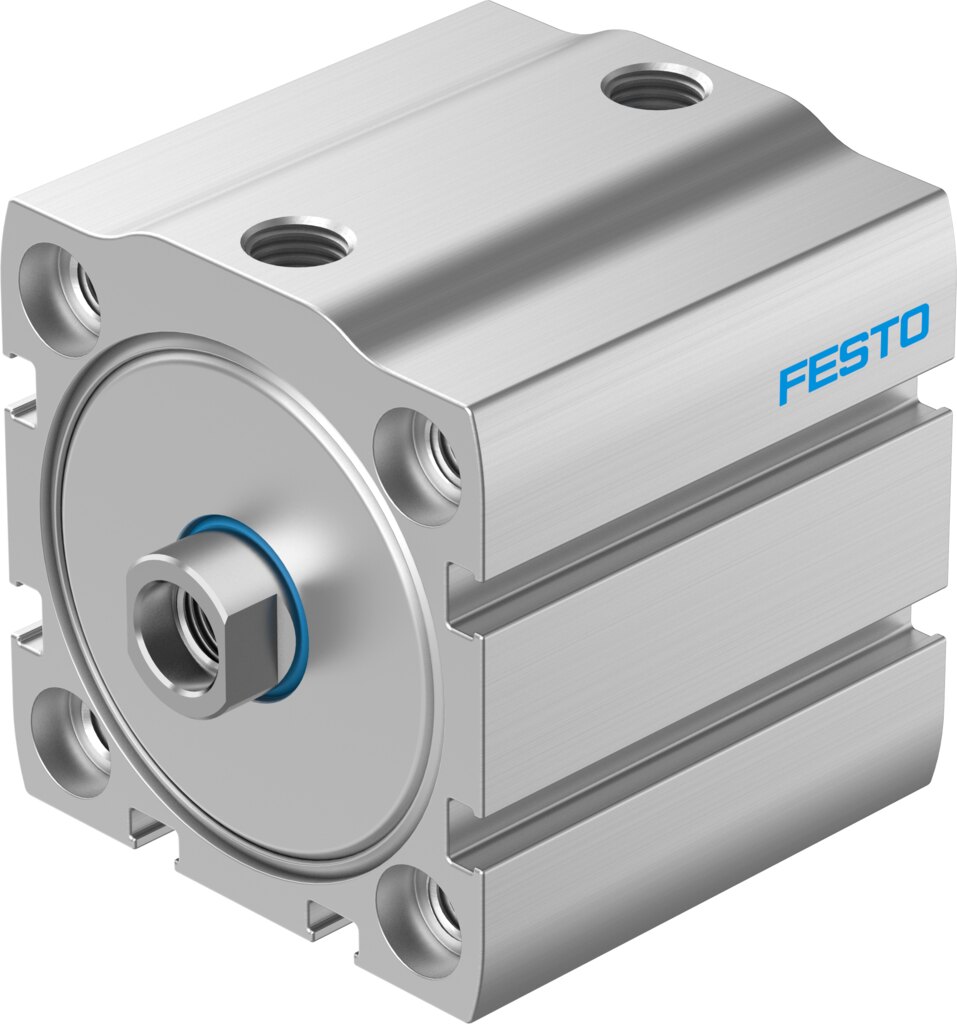

Double-acting compact cylinder Ø 40 mm stroke 160 mm ADN-40-160-I-P-A - Festo 571720

With a 160 mm stroke and a Ø 40 mm piston, the ADN compact cylinder ADN-40-160-I-P-A covers short linear movements. The letter A after the cushioning code in type ADN-40-160-I-P-A stands for position detection via proximity switches. Compressed air drives the piston both ways, so advance and return over 160 mm are powered.

Benefits at a glance

• Piston Ø 40 mm, stroke 160 mm
• Elastic end-position cushioning P at both ends
• Piston rod with female thread
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 0.9 kg

Use

Typical tasks are ejecting, shifting and positioning workpieces over 160 mm, wherever a standard cylinder would be too long.
