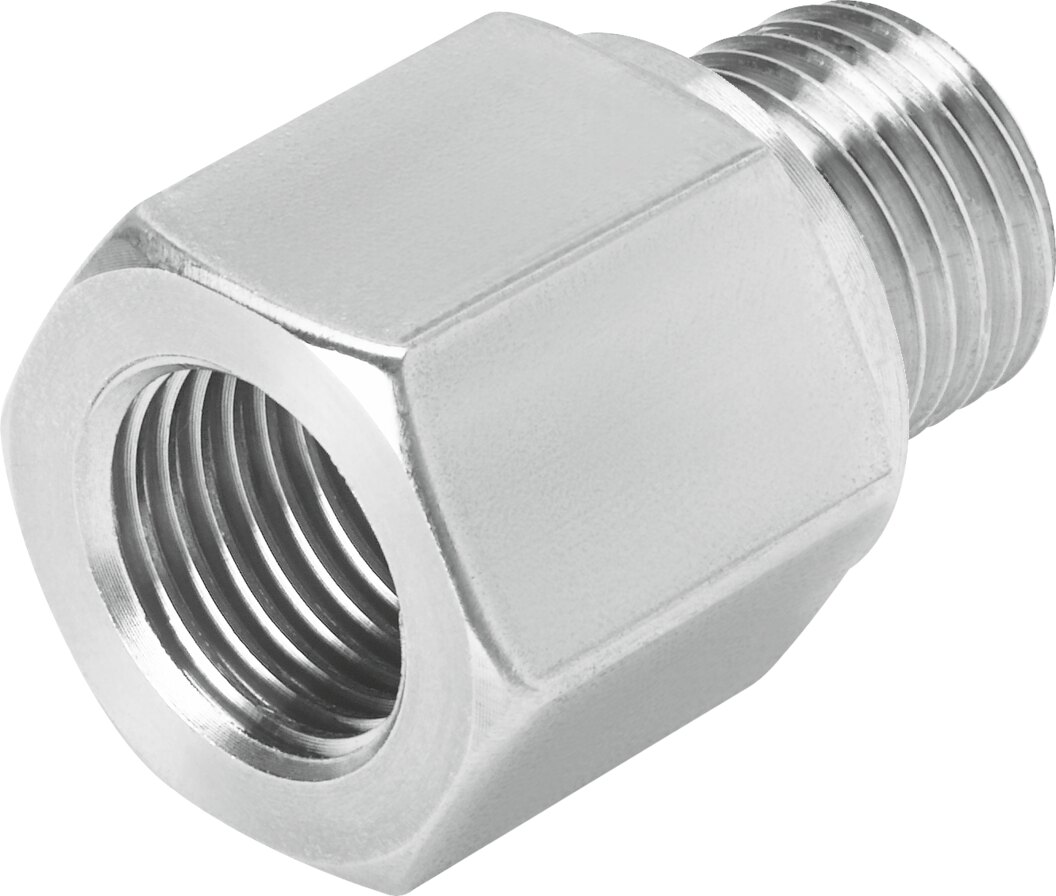

Thread adapter male thread 1/2 NPT to female thread G1/2 nominal width 14.3 mm AD-1/2NPT-G1/2-I - Festo 9627

Festo ✓ Original product Brand new

The thread adapter AD-1/2NPT-G1/2-I converts a 1/2 NPT male port to a G1/2 female thread and so bridges G and NPT threads. Operating pressure -0.95 to 10 bar, nominal width 14.3 mm. Housing made of zinc-plated steel, PVC seal, CRC 1 (low corrosion stress).

Net
€6.65
excl. VAT
Item FES-9627
Manufacturer no. AD-1/2NPT-G1/2-I
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo adapter AD-1/2NPT-G1/2-I has a male thread 1/2 NPT on one side and a female thread G1/2 on the other, nominal width 14.3 mm.

Why choose the AD-1/2NPT-G1/2-I

  • Port 1: male thread 1/2 NPT, port 2: female thread G1/2
  • Max. tightening torque 28 Nm (port 1) and 40 Nm (port 2)
  • Operating pressure -0.95 to 10 bar over the full temperature range
  • Nominal width 14.3 mm
  • Usable at ambient temperatures of -10 to 60 °C
  • Corrosion resistance class 1 - low corrosion stress

Typical applications

The AD-1/2NPT-G1/2-I is typically used to connect NPT components to valves, service units or manifolds with G threads, and vice versa.

Technical data

Order typeAD-1/2NPT-G1/2-I
Festo part number9627
Nominal width14.3 mm
Operating pressure over full temperature range-0.95 to 10 bar
Corrosion resistance class CRC1 - low corrosion stress
PWIS conformity (LABS)VDMA24364-B1/B2-L
Ambient temperature-10 to 60 °C
Max. tightening torque port 128 Nm
Max. tightening torque port 240 Nm
Product weight48.48 g
Pneumatic port 1male thread 1/2 NPT
Pneumatic port 2female thread G1/2
Note on materialsRoHS compliant
Material sealsPVC
Material housingsteel, zinc-plated
Customs tariff number73079910
Weight0.048 kg
ManufacturerFesto
Hersteller-NrAD-1/2NPT-G1/2-I
EAN4052568303426
Zolltarifnummer73079910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialGalvanised steel
Thread 2G 1/2 IG
Seal materialPVC
Thread typeExternal thread
Thread type 2Internal thread
SeriesAD
Pneumatic connectionNPT 1/2 AG
Temperaturbereich-10-60 °C
Temperature (max.)60
