Rod eye thread 3/8-24 UNF-2B steel zinc-plated SGS-3/8-24 - Festo 532696
The rod eye SGS-3/8-24 with thread 3/8-24 UNF-2B lets the piston rod swivel freely even when tilted, which protects seals and guides. Housing made of steel, zinc-plated, CRC 1 (low corrosion stress). Ambient temperature -40 to 150 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

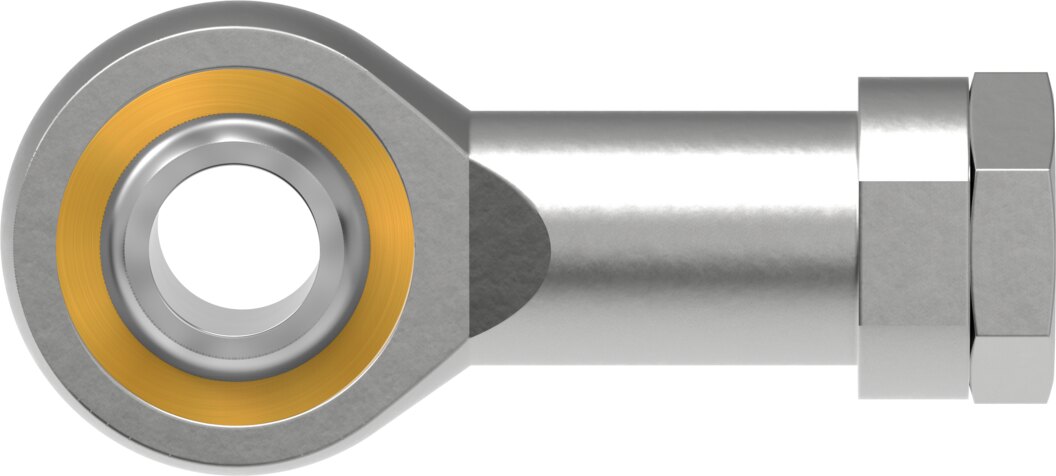

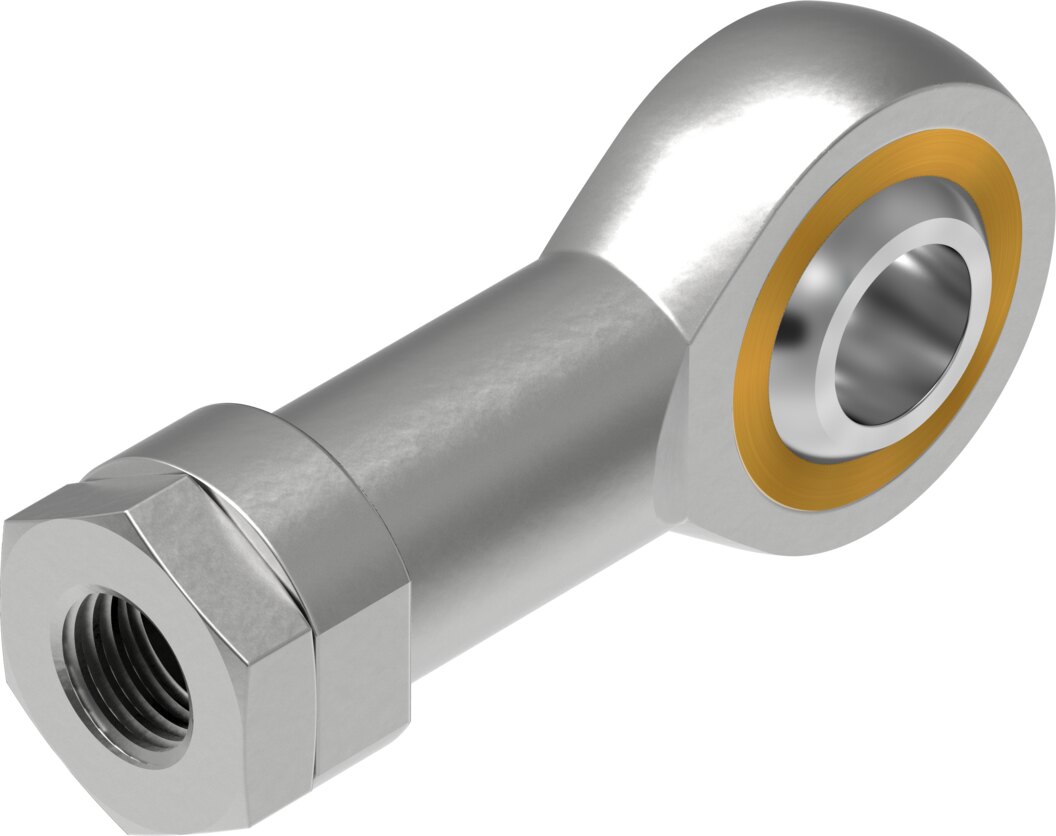

The Festo rod eye SGS-3/8-24 connects piston rod and attachment via a spherical bearing, thread size 3/8-24 UNF-2B.
Why choose the SGS-3/8-24
- Thread size 3/8-24 UNF-2B
- Bearing: outer ring made of brass, inner ring made of steel
- Housing made of steel, zinc-plated
- Ambient temperature -40 to 150 °C
- Corrosion resistance class 1 - low corrosion stress
- Materials: RoHS compliant
Typical applications
The SGS-3/8-24 suits swivel mountings, flaps and levers where the cylinder changes its position during the stroke.
Technical data
| Order type | SGS-3/8-24 |
|---|---|
| Festo part number | 532696 |
| Size | 3/8-24 UNF-2B |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| PWIS conformity (LABS) | VDMA24364-B2-L |
| Ambient temperature | -40 to 150 °C |
| Product weight | 87 g |
| Note on materials | RoHS compliant |
| Material outer ring | brass |
| Material housing | steel, zinc-plated |
| Material inner ring | steel |
| Material nut | steel, zinc-plated |
| Customs tariff number | 90330090 |
| Manufacturer | Festo |
| Hersteller-Nr | SGS-3/8-24 |
| EAN | 4052568340001 |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Galvanised steel |
| Series | SGS |
| Temperaturbereich | -40-150 °C |
| Temperature (max.) | 150 |
