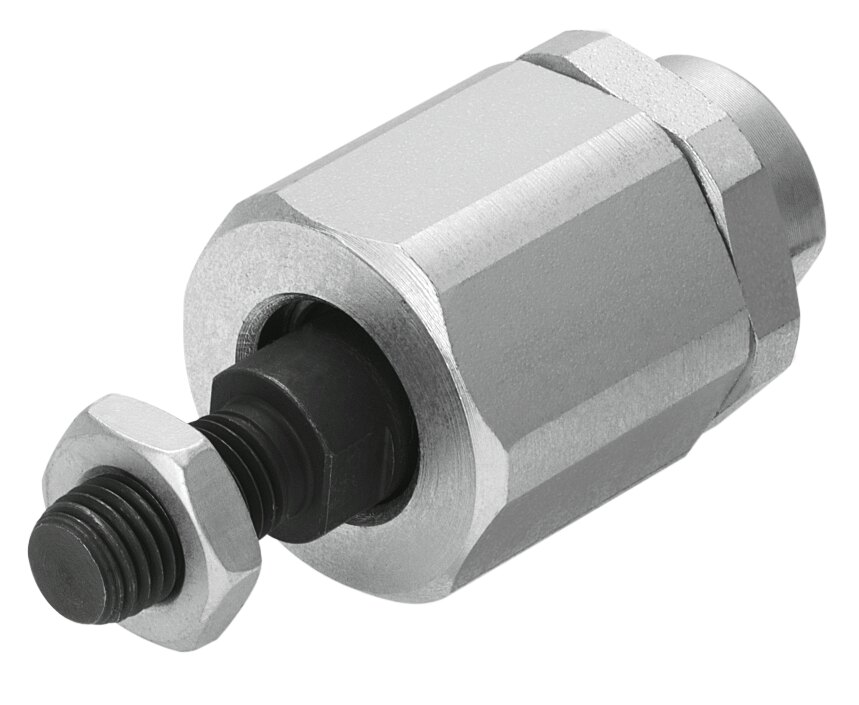

Self-aligning rod coupler thread 3/4-16 UNF-2B steel zinc-plated CRC 2 FK-3/4-16 - Festo 532708

Festo ✓ Original product Brand new

The self-aligning rod coupler FK-3/4-16 links the piston rod to the guided machine part and compensates offset and angular errors, thread size 3/4-16 UNF-2B. Housing made of steel, zinc-plated, CRC 2 (moderate corrosion stress). Ambient temperature -40 to 150 °C.

Net
€72.64
excl. VAT
Item FES-532708
Manufacturer no. FK-3/4-16
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Misalignment between cylinder and load stresses seals and guides. The self-aligning rod coupler FK-3/4-16 for thread 3/4-16 UNF-2B absorbs this offset.

Why choose the FK-3/4-16

  • Thread size 3/4-16 UNF-2B
  • Ball stud made of case-hardened steel
  • Housing made of steel, zinc-plated
  • Usable at ambient temperatures of -40 to 150 °C
  • Corrosion resistance class 2 - moderate corrosion stress
  • Materials: RoHS compliant

Use

Typical places for the FK-3/4-16 are slides, lifting tables and gates with their own guide, where the cylinder only provides the force.

Technical data

Order typeFK-3/4-16
Festo part number532708
Size3/4-16 UNF-2B
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformity (LABS)VDMA24364-B2-L
Ambient temperature-40 to 150 °C
Product weight802 g
Note on materialsRoHS compliant
Material bushingsteel, zinc-plated
Material housingsteel, zinc-plated
Material ball studcase-hardened steel
Material spherical washercase-hardened steel
Material nutsteel, zinc-plated
Customs tariff number84879059
Weight0.75 kg
ManufacturerFesto
Hersteller-NrFK-3/4-16
EAN4052568340124
Zolltarifnummer84879059
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialGalvanised steel
SeriesFK
Temperaturbereich-40-150 °C
Temperature (max.)150
