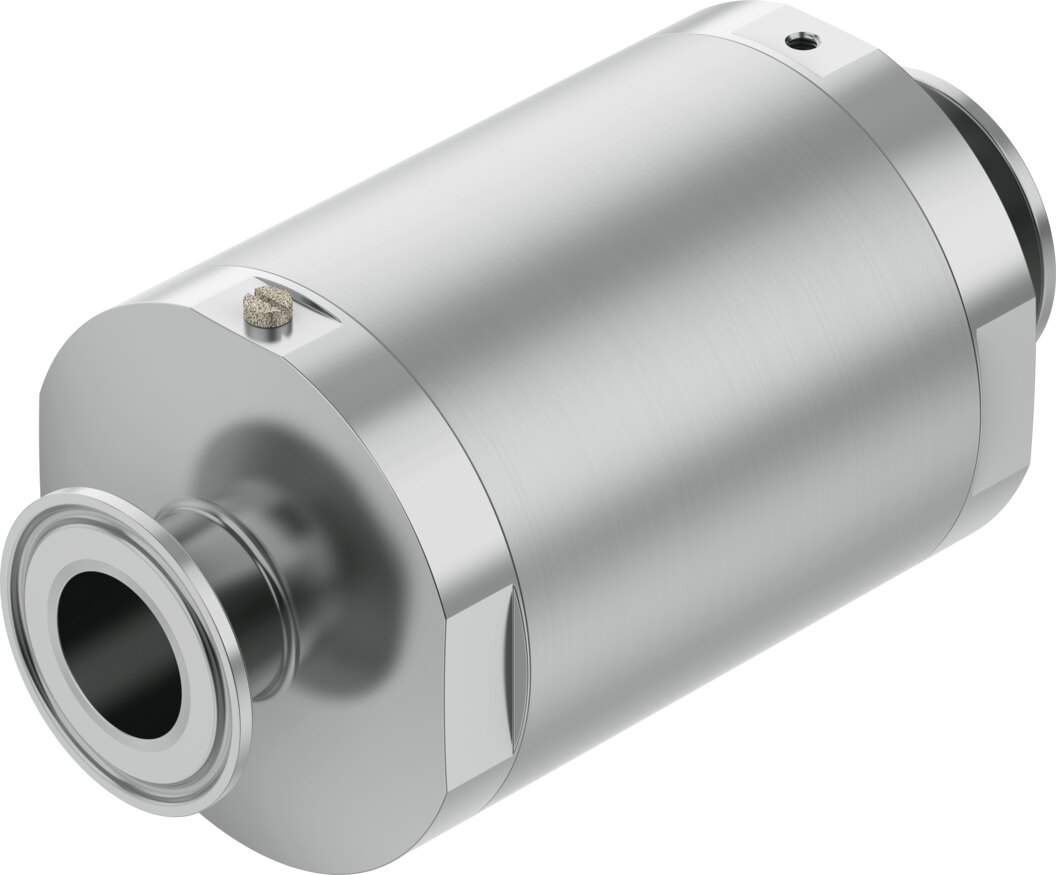

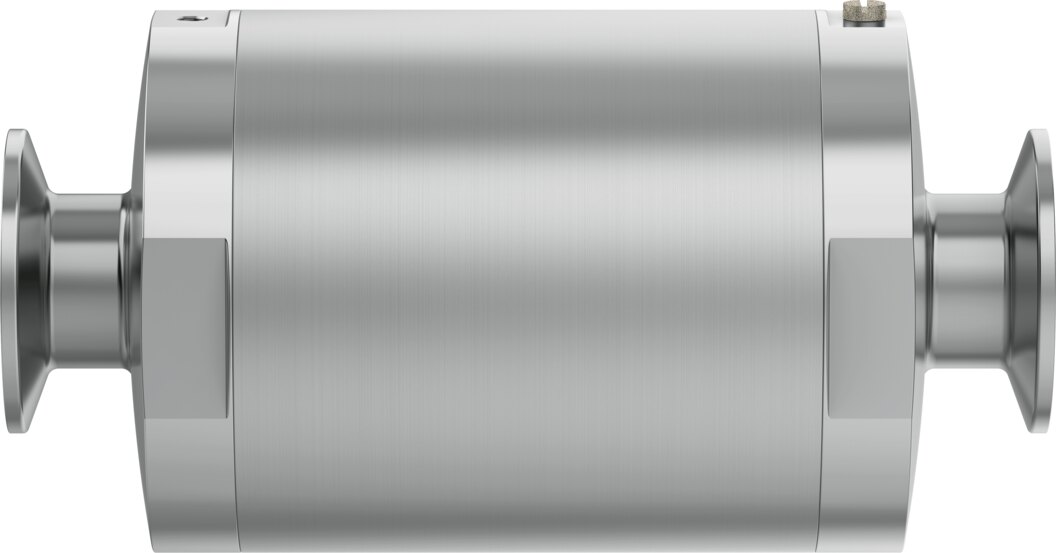

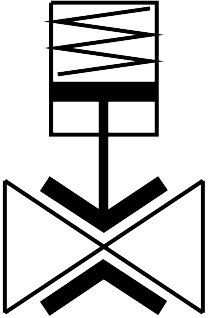

Pneumatic pinch valve 2/2 NC DIN 32676 clamp DN 25 stainless steel VZQA-C-M22C-25-S5S5-V2V4E-5 - Festo 8159106
The pinch valve VZQA-C-M22C-25-S5S5-V2V4E-5 shuts off the DN 25 passage via an EPDM sleeve, without internals in the flow path. Connection clamp to DIN 32676 series A, medium pressure 0 to 5 bar. Pilot pressure 3.5 to 6 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For compressed air and water up to 4000 mm²/s viscosity, the pinch valve VZQA-C-M22C-25-S5S5-V2V4E-5 closes the DN 25 passage by squeezing a sleeve. It is normally closed, the Kv value is 18 m³/h.
Benefits at a glance
- Medium pressure 0 to 5 bar
- Flow rate Kv 18 m³/h at nominal size DN 25
- Housing in high-alloy stainless steel 1.4301
- Switching times 250 ms on and 400 ms off
- Media temperature -5 to 100 °C
- Pilot pressure (operating pressure) 3.5 to 6 bar
Applications
Suitable for compressed air to ISO 8573-1:2010 [-:-:1], water. Mounting position is freely selectable. Suitable for use with food: see supplementary material information.
Technical data
| Feature | Value |
|---|---|
| Type | VZQA-C-M22C-25-S5S5-V2V4E-5 |
| Festo part number | 8159106 |
| Design | Pinch valve, pneumatically actuated |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | Clamp to DIN 32676 series A |
| Nominal size DN | 25 |
| Valve function | 2/2-way, single solenoid, closed |
| Flow direction | Reversible |
| Medium pressure | 0 to 5 bar |
| Note on the medium pressure | Use in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow. |
| Operating pressure | 3.5 to 6 bar |
| Nominal pressure PN | 10 |
| Burst pressure | 16 bar |
| Type of reset | Mechanical spring |
| Type of piloting | Externally actuated |
| Auxiliary pilot air port 12 | M5 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:1] |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:1], Water |
| Max. viscosity | 4000 mm²/s |
| Media temperature | -5 to 100 °C |
| Ambient temperature | -5 to 60 °C |
| Storage temperature | 5 to 30 °C |
| Flow rate Kv | 18 m³/h |
| Switching time on | 250 ms |
| Switching time off | 400 ms |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | High-alloy stainless steel |
| Material number housing | 1.4301 |
| Material housing cover | High-alloy stainless steel |
| Material number housing cover | 1.4404 / AISI 316L |
| Material seals | Fluoro rubber |
| Material shut-off element | EPDM |
| Product weight | 2354 g |
| Suitable for use with food | See supplementary material information |
| Material bowl | PPS |
| Weight | 2.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZQA-C-M22C-25-S5S5-V2V4E-5 |
| EAN | 4052568596637 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4301 |
| Nominal size DN [mm] | 25 |
| Nominal pressure PN [bar] | 10 |
| Seal material | FPM |
| Housing material | Stainless steel 1.4301 |
| Function | 2/2 closed monostable |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -5 bis 100 |
| Norm | DIN 32676 |
| Series | VZQA |
| Pneumatic connection | M5 |
