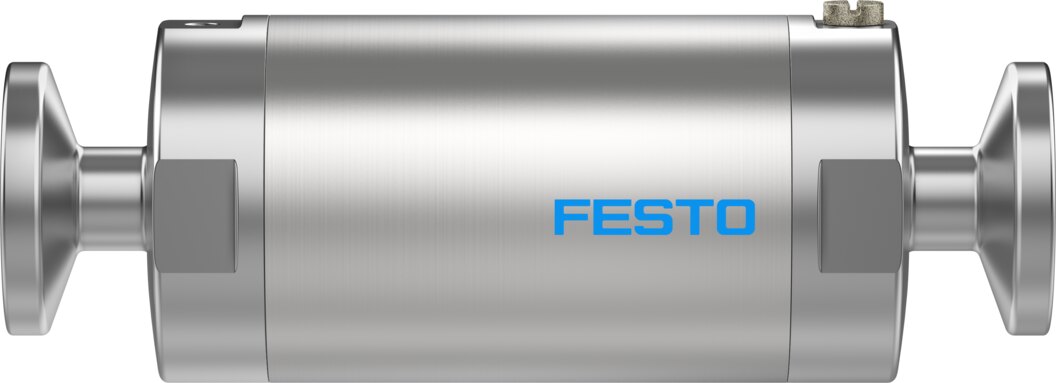

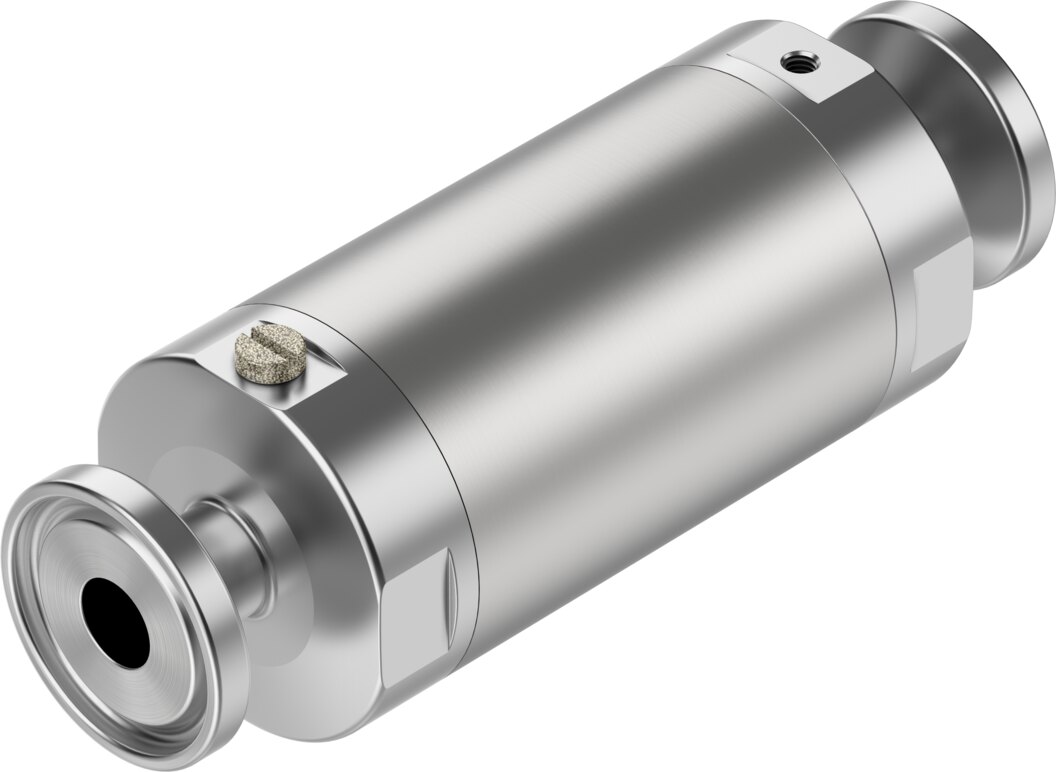

Pneumatic pinch valve 2/2 NC ASME-BPE clamp DN 6 stainless steel VZQA-C-M22C-6-S1S1-V2V4S1-2 - Festo 8117023

Festo ✓ Original product Brand new

The pinch valve VZQA-C-M22C-6-S1S1-V2V4S1-2 switches media up to 4000 mm²/s viscosity via a VMQ (silicone) sleeve and is normally closed. Connection clamp according to ASME-BPE Type A, medium pressure 0 to 2 bar. Pilot pressure 3.5 to 6 bar.

Net
€463.86
excl. VAT
Item FES-8117023
Manufacturer no. VZQA-C-M22C-6-S1S1-V2V4S1-2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

In the pinch valve VZQA-C-M22C-6-S1S1-V2V4S1-2, the sleeve in the DN 6 passage is squeezed pneumatically and closes the flow. It is normally closed, the Kv value is 0.7 m³/h.

Benefits

  • Medium pressure 0 to 2 bar
  • Flow rate Kv 0.7 m³/h at nominal size DN 6
  • Housing in high-alloy stainless steel 1.4301
  • Media temperature -5 to 90 °C
  • Pilot pressure (operating pressure) 3.5 to 6 bar
  • Switching times 125 ms on and 125 ms off

Applications

Festo lists the following media for VZQA-C-M22C-6-S1S1-V2V4S1-2: compressed air to ISO 8573-1:2010 [-:-:1], water. Mounting position is freely selectable. Suitable for use with food: see declaration of conformity.

Technical data

FeatureValue
TypeVZQA-C-M22C-6-S1S1-V2V4S1-2
Festo part number8117023
DesignPinch valve, pneumatically actuated
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveClamp according to ASME-BPE Type A
Nominal size DN6

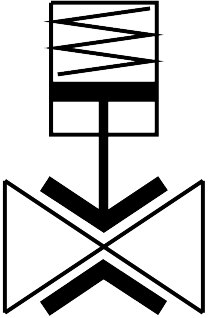

Valve function2/2-way, single solenoid, closed
Flow directionReversible
Medium pressure0 to 2 bar
Note on the medium pressureUse in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow.
Operating pressure3.5 to 6 bar
Nominal pressure PN10
Burst pressure16 bar
Type of resetMechanical spring
Type of pilotingExternally actuated
Auxiliary pilot air port 12M3
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]
MediumCompressed air to ISO 8573-1:2010 [-:-:1], Water
Max. viscosity4000 mm²/s
Media temperature-5 to 90 °C
Ambient temperature-5 to 60 °C
Storage temperature5 to 30 °C
Flow rate Kv0.7 m³/h
Switching time on125 ms
Switching time off125 ms
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingHigh-alloy stainless steel
Material number housing1.4301
Material housing coverHigh-alloy stainless steel
Material number housing cover1.4404 / AISI 316L
Material sealsFluoro rubber
Material shut-off elementVMQ (silicone)
Product weight302 g
Suitable for use with foodSee declaration of conformity
Material bowlPPS
Weight0.33 kg
ManufacturerFesto
Hersteller-NrVZQA-C-M22C-6-S1S1-V2V4S1-2
EAN4052568462048
Zolltarifnummer84818073
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4301
Nominal size DN [mm]6
Nominal pressure PN [bar]10
Seal materialFPM
Housing materialStainless steel 1.4301
Function2/2 closed monostable
Actuation typepneumatic
Medientemperatur [°C]-5 bis 90
SeriesVZQA
Pneumatic connectionM3
