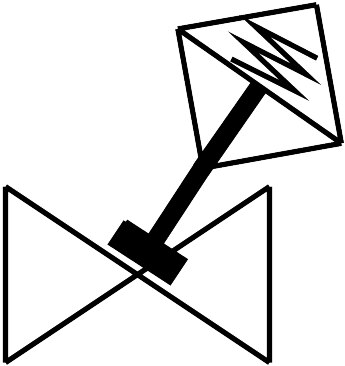

Angle seat valve G2 1/2 stainless steel 2/2 NC up to 8 bar VZXA-A-TS6-65-M2-V13T-8-M-90-26-PR-V4 - Festo 8060519
For steam, compressed air and other process media, the angle seat valve VZXA-A-TS6-65-M2-V13T-8-M-90-26-PR-V4 opens and closes lines with G2 1/2 connection. Medium pressure 0 to 8 bar, Kv 77.4 m³/h, media from -10 to 180 °C. Control function: closed via reduced spring force, N/C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the angle seat valve VZXA-A-TS6-65-M2-V13T-8-M-90-26-PR-V4, lines with G2 1/2 connection are opened and closed pneumatically, medium pressure up to 8 bar. The Kv value is 77.4 m³/h.
Benefits
- Medium pressure 0 to 8 bar
- Flow rate Kv 77.4 m³/h
- Actuator size 90 mm with 26 mm stroke
- Housing in cast stainless steel 1.4409
- Media temperature -10 to 180 °C
- Safety Integrity Level SIL 2
Applications
Festo lists the following media for VZXA-A-TS6-65-M2-V13T-8-M-90-26-PR-V4: vapour, inert gases, filtered compressed air, grade of filtration 200 µm. Any mounting position. ATEX explosion protection: zones 1, 2, 21 and 22.
Technical data
| Feature | Value |
|---|---|
| Type | VZXA-A-TS6-65-M2-V13T-8-M-90-26-PR-V4 |
| Festo part number | 8060519 |
| Design | Poppet valve with diaphragm actuator |
| Type of actuation | Pneumatic |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Line connection | Threaded coupling G2 1/2 to DIN ISO 228 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 to 8 bar |
| Type of reset | Mechanical spring |
| Type of piloting | Externally actuated |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 5 to 7 bar |
| Medium | Vapour, Inert gases, Filtered compressed air, grade of filtration 200 µm |
| Direction of flow | Above valve seat, for gaseous media |
| Control of medium | On/off operation |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -10 to 180 °C |
| Ambient temperature | 0 to 60 °C |
| Flow rate Kv | 77.4 m³/h |
| Outdoor applications | Weather-protected application areas Class C1 based on IEC 60654-1 |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Cast stainless steel |
| Material number process valve housing | 1.4409 |
| Material seals | NBR |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 10185 g |
| Approval | CRN |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Certificate issuing authority | TÜV 968/V 1039.01/20 |
| Safety Integrity Level (SIL) | SIL 2 |
| Probability of Failure per Hour (PFH) | 1.36E-7 |
| Probability of Failure on Demand (PFD) | 5.95E-4 |
| Size of drive | 90 mm |
| Stroke | 26 mm |
| Control function | Closed via reduced spring force, N/C |
| Position detection | Via mechanical indicator |
| Material drive housing | Cast stainless steel |
| Material number drive housing | 1.4408 |
| Storage temperature | -10 to 60 °C |
| Degree of protection | IP65, IP67 |
| Material piston rod | High-alloy stainless steel |
| Material cover | Cast stainless steel |
| Weight | 12 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZXA-A-TS6-65-M2-V13T-8-M-90-26-PR-V4 |
| EAN | 4052568435721 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Thread | G 2 1/2 |
| Stroke [mm] | 26 |
| Seal material | NBR |
| Housing material | Stainless steel |
| Function | 2/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 180 |
| Series | VZXA |
