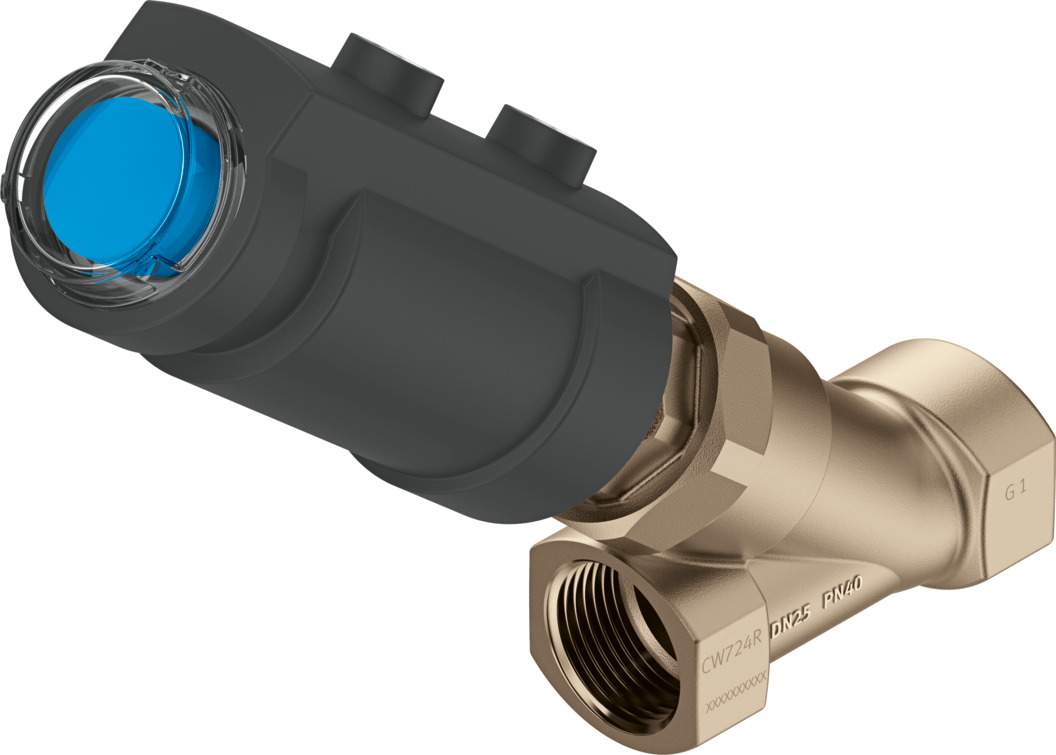

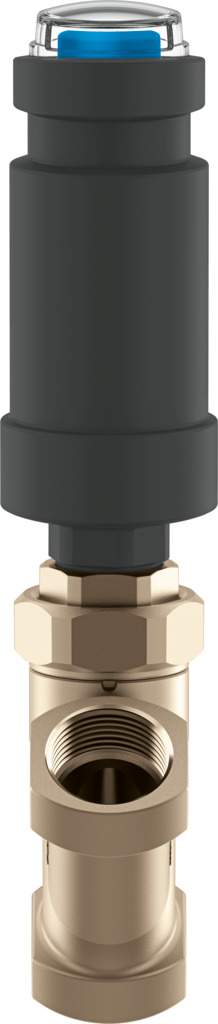

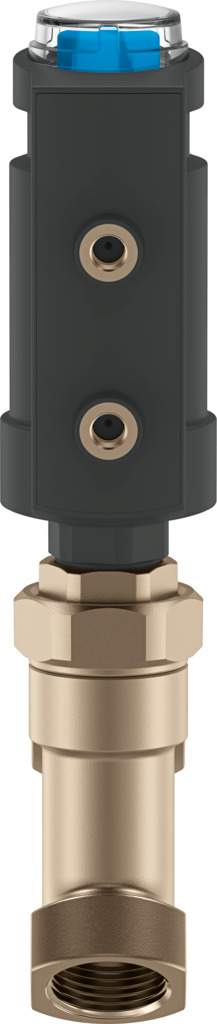

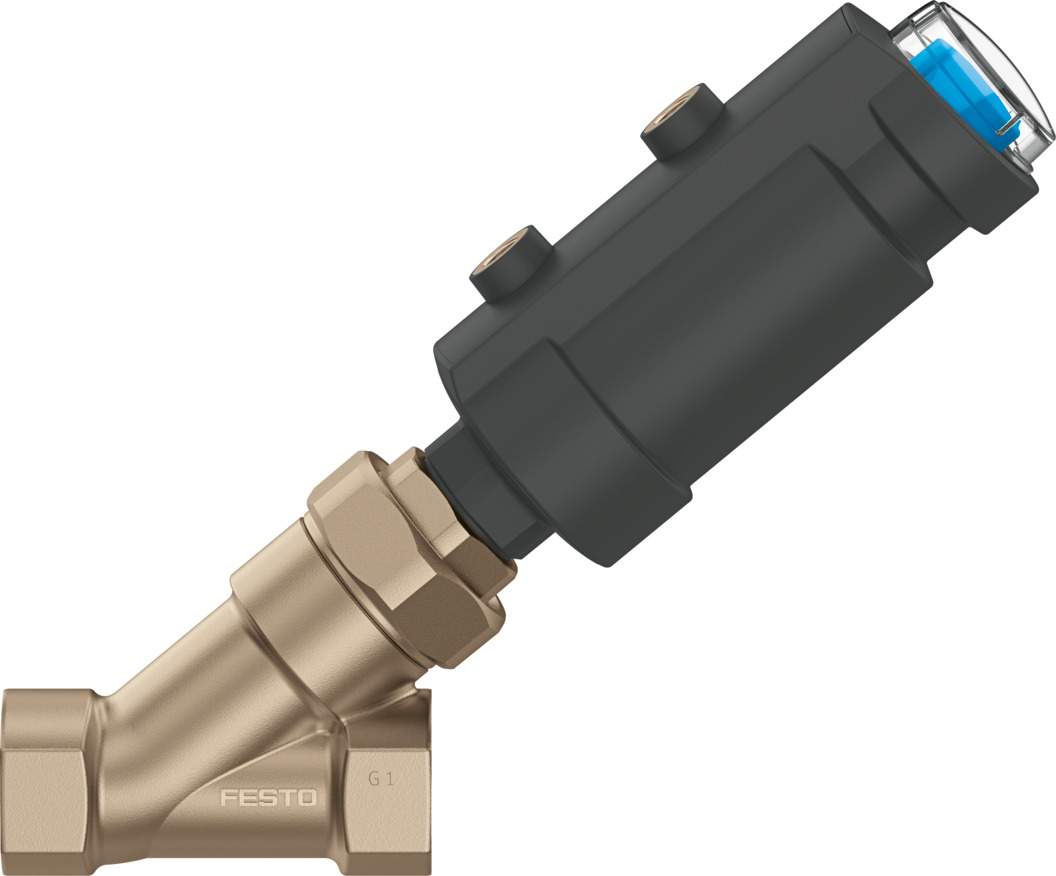

Angle seat valve VZXA-B-TS7-1"-M2-B1T-8.3-K-46-17-PM - Festo 8111607

Name: Angle seat valve VZXA-B-TS7-1"-M2-B1T-8.3-K-46-17-PM - Festo 8111607
Brand: Festo
SKU: FES-8111607
Price: 240.69 EUR
Availability: InStock

Festo ✓ Original product Brand new

Net

€240.69

excl. VAT

Item FES-8111607

Manufacturer no. VZXA-B-TS7-1"-M2-B1T-8.3-K-46-17-PM

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Technical data

Design	Poppet valve with piston drive
Type of actuation	Pneumatic
Mounting position	Any
Type of mounting	Inline installation
Line connection	Threaded coupling 1 NPT to ANSI/ASME B 1.20.1
Valve function	2/2
Flow direction	Non-reversible
Medium pressure	0 ... 8.3 bar
Type of reset	Mechanical spring
Type of piloting	Externally actuated
Pneumatic connection	Female thread G1/8
Operating pressure	5 ... 7 bar
Medium	Vapour, Mineral oil-based hydraulic fluid, Inert gases, Mineral oil, Water, Filtered compressed air, grade of filtration 200 µm, Neutral fluids
Direction of flow	Below valve seat, for gaseous and liquid media
Control of medium	On/off operation
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Max. viscosity	600 mm²/s
Media temperature	-10 ... 180 °C
Ambient temperature	0 ... 60 °C
Flow rate Kv	15.9 m³/h
Outdoor applications	Weather-protected application areas Class C1 based on IEC 60654-1
Note on materials	RoHS compliant
LABS (PWIS) conformity	VDMA24364 zone III
Material process valve housing	Brass
Material number process valve housing	CW724R
Material seals	Fluoro rubber
Material spindle seal	PTFE
Material seat seal	PTFE
Product weight	1486 g
Size of drive	46 mm
Stroke	17 mm
Control function	Closed via spring force, N/C
Position detection	Via mechanical indicator
Material drive housing	Reinforced PA
Storage temperature	-10 ... 60 °C
Degree of protection	IP65, IP67
Material piston rod	High-alloy stainless steel
Material cover	Reinforced PA
Manufacturer	Festo
Hersteller-Nr	VZXA-B-TS7-1"-M2-B1T-8.3-K-46-17-PM
EAN	4052568550585
Zolltarifnummer	84818073
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
