Pneumatic pinch valve 2/2 NC G1/2 DN 15 aluminium VZQA-C-M22C-15-GG-ALALE-6 - Festo 609500

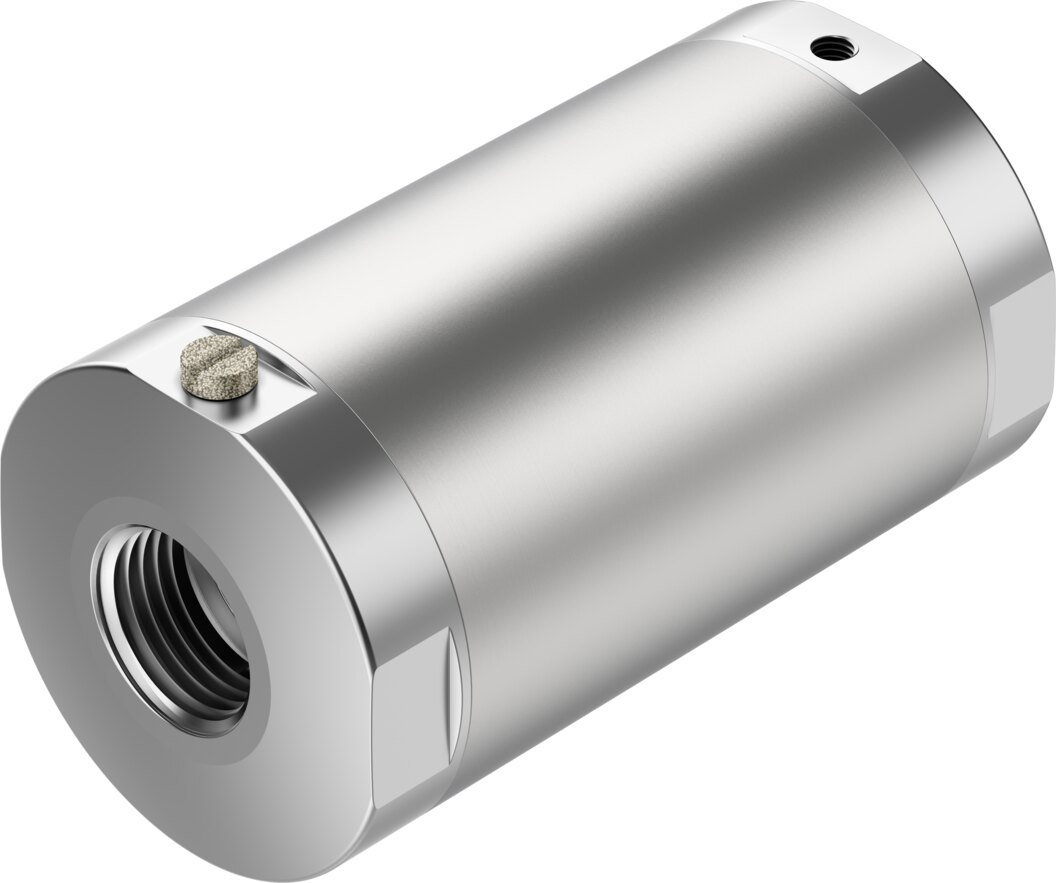

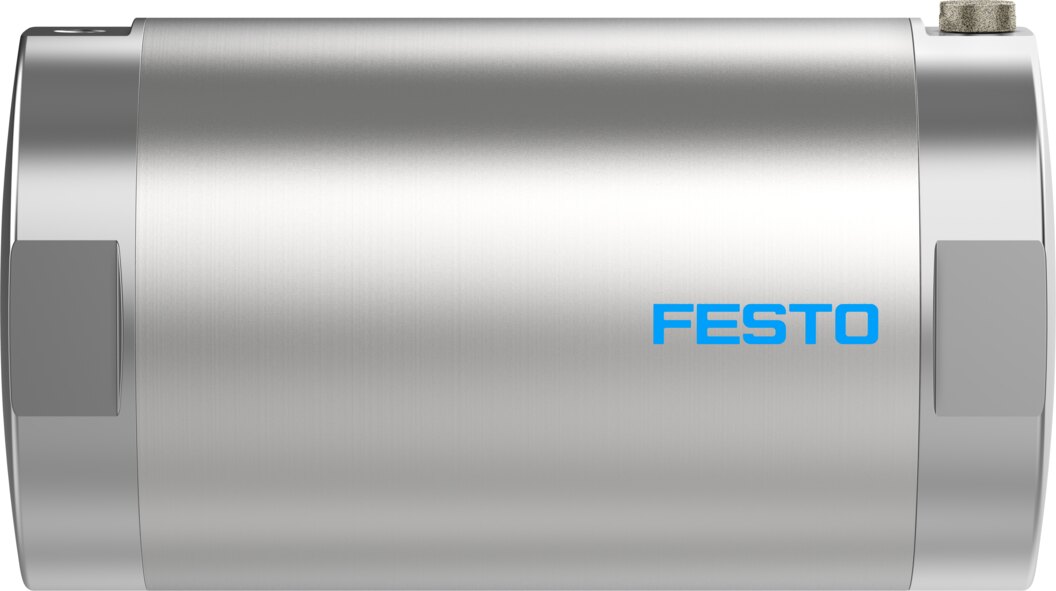

The pneumatic pinch valve VZQA-C-M22C-15-GG-ALALE-6 shuts off the DN 15 passage via an EPDM sleeve and is normally closed. Housing in wrought aluminium alloy, G1/2 connection, nominal pressure PN 10. Festo part number 609500, weight 0.4 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The pinch valve VZQA-C-M22C-15-GG-ALALE-6 closes the DN 15 passage by squeezing an elastic sleeve, there are no internals in the flow path.
Product data
- Nominal size DN 15, nominal pressure PN 10

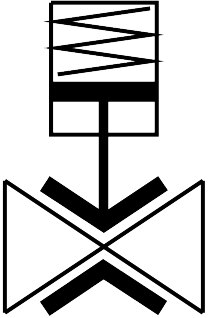

- Valve function 2/2, normally closed
- Weight 0.4 kg according to price list
- Customs tariff number 84818079
Applications
Medium pressure, flow rate and temperature range for VZQA-C-M22C-15-GG-ALALE-6 are available on request.
Technical data
| Feature | Value |
|---|---|
| Type | VZQA-C-M22C-15-GG-ALALE-6 |
| Festo part number | 609500 |
| Product type | Pinch valve |
| Design | Pinch valve, pneumatically actuated |
| Type of actuation | Pneumatic |
| Connection process valve | G1/2 |
| Nominal size DN | 15 |
| Valve function | 2/2-way, single solenoid, closed |
| Nominal pressure PN | 10 |
| Material housing | Wrought aluminium alloy |
| Material shut-off element | EPDM |
| Weight (price list) | 0.4 kg |
| Customs tariff number | 84818079 |
| Weight | 0.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZQA-C-M22C-15-GG-ALALE-6 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | G 1/2 |
| Nominal size DN [mm] | 15 |
| Nominal pressure PN [bar] | 10 |
| Housing material | Aluminium |
| Function | 2/2 closed monostable |
| Actuation type | pneumatic |
| Series | VZQA |
