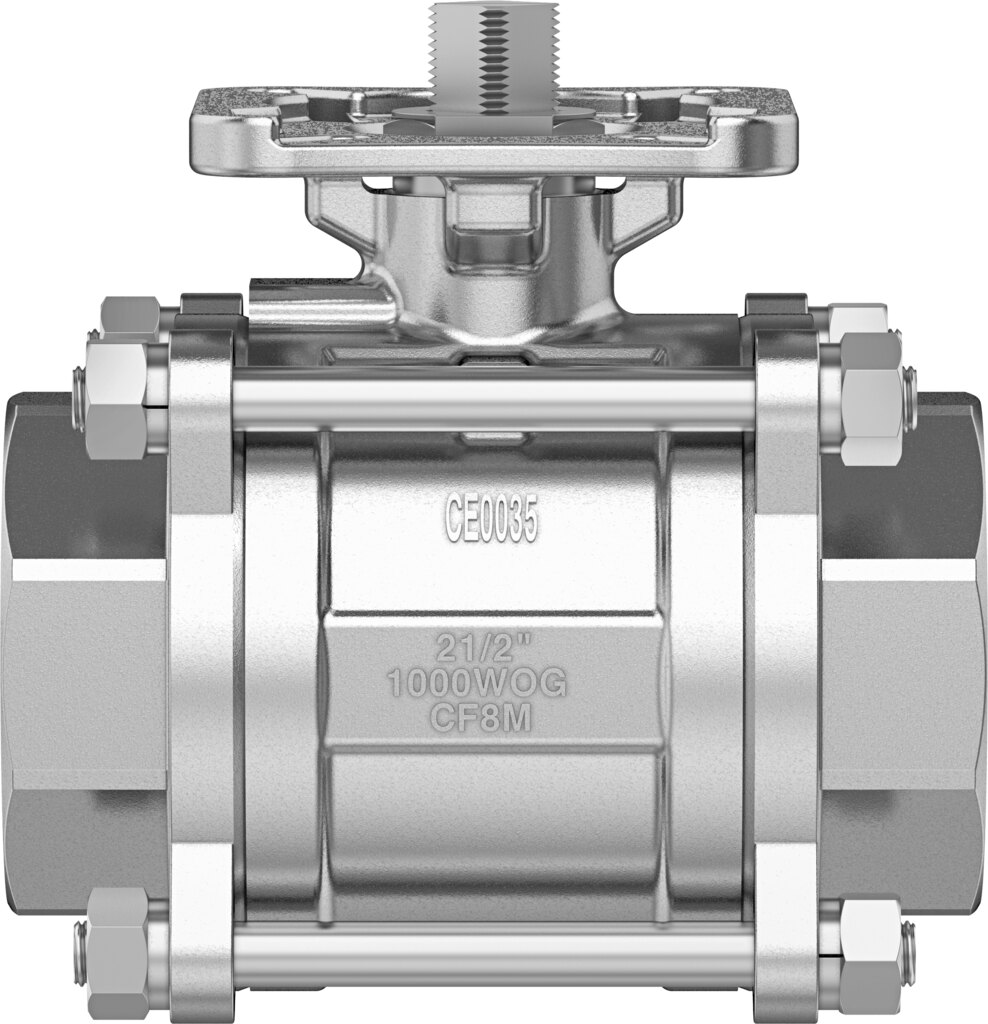

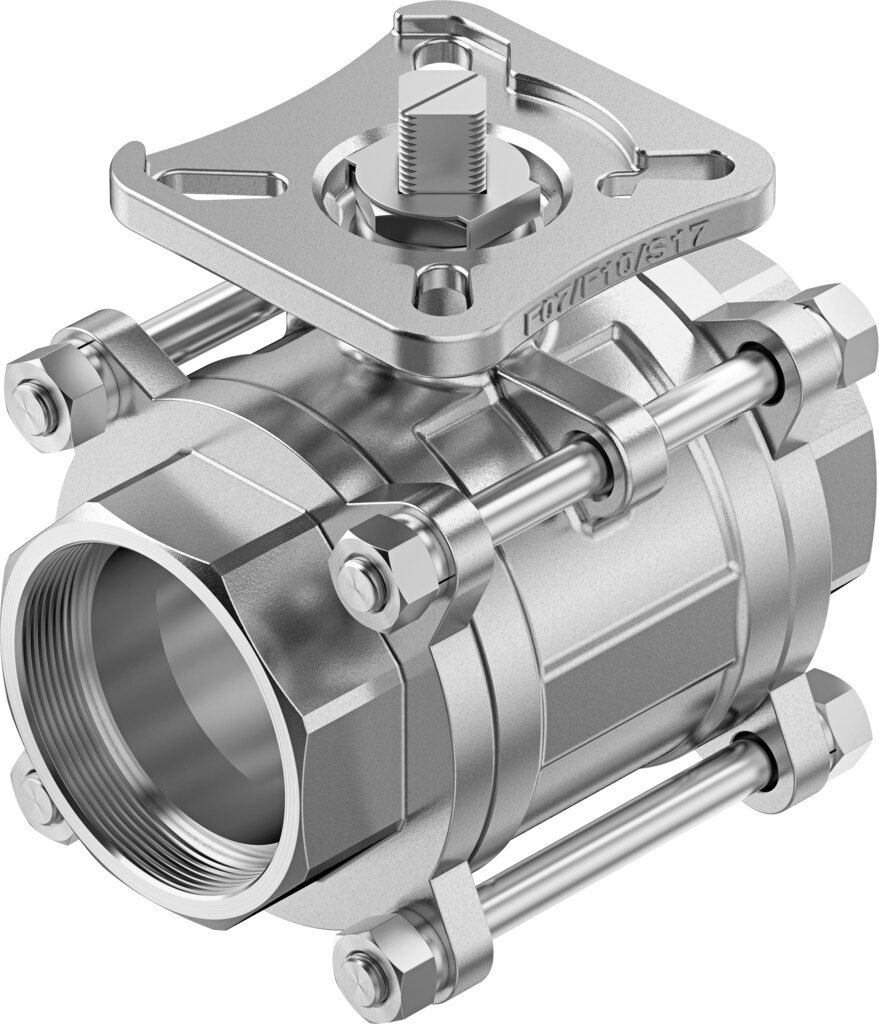

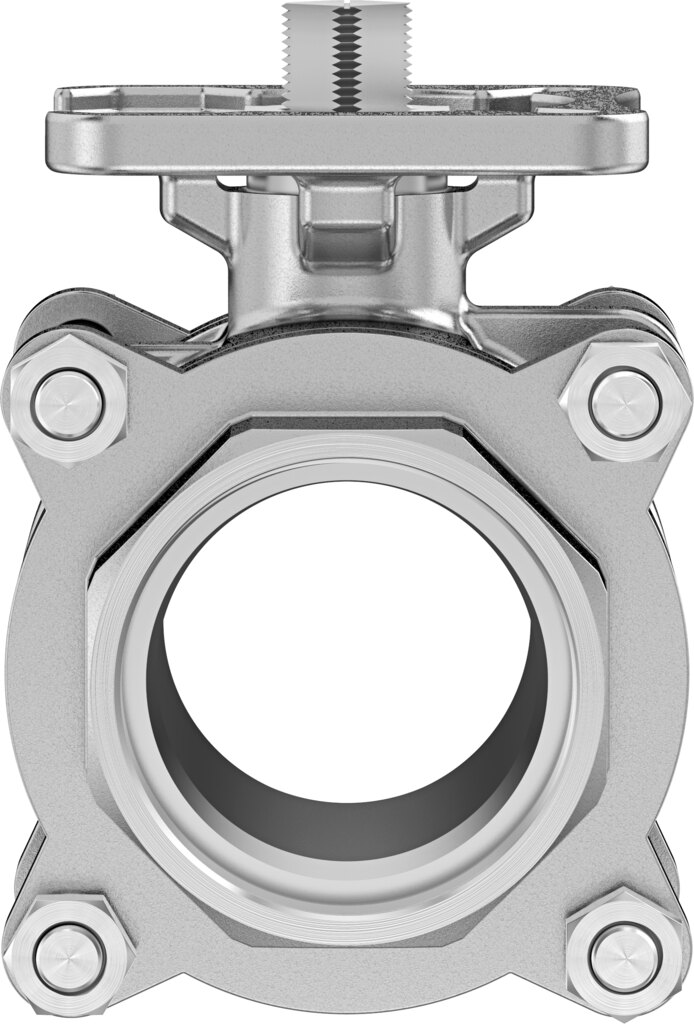

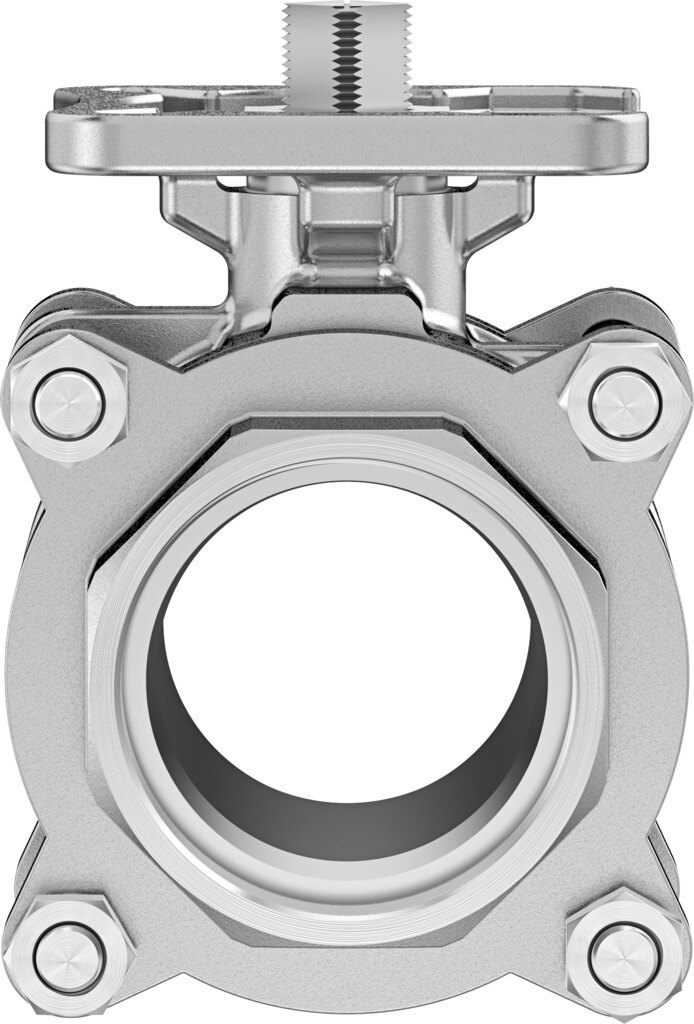

2-way ball valve stainless steel with weld ends DN 65 PN 63 VZBE-21/2-WA-63-T-2-F0710-V15V15 - Festo 8089046
Shut-off in DN 65 lines up to PN 63: the 2-way ball valve VZBE-21/2-WA-63-T-2-F0710-V15V15 in cast stainless steel with connection weld-on end to ASME B16.11. It accepts a quarter turn actuator via the F07, F10 flange pattern to ISO 5211, flow rate is Kv 684 m³/h. Media from -20 to 200 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the 2-way ball valve VZBE-21/2-WA-63-T-2-F0710-V15V15 you switch media flows in DN 65 lines, the cast stainless steel housing is rated for PN 63. Flow rate is Kv 684 m³/h.
Benefits
- Flow rate Kv 684 m³/h at nominal size DN 65
- Valve rated for nominal pressure PN 63
- Flange pattern F07, F10 to ISO 5211, quarter turn actuator mounts directly
- Housing and ball in cast stainless steel 1.4408/CF8M
- Breakaway torque 79 Nm at nominal pressure as basis for actuator sizing
- Media from -20 to 200 °C
Applications
Suitable for vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Mounting position is freely selectable. The VZBE type 8089046 is approved for ATEX zones 1, 2, 21 and 22. A matching quarter turn actuator mounts directly on the ISO 5211 interface.
Technical data
| Feature | Value |
|---|---|
| Type | VZBE-21/2-WA-63-T-2-F0710-V15V15 |
| Festo part number | 8089046 |
| Design | 2-way ball valve |
| Type of actuation | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | Weld-on end to ASME B16.11 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F07, F10 |
| Inside diameter | 63 mm |
| Nominal size DN | 65 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 79 Nm |
| Based on standard | ISO 5211 |
| Medium | Vapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids |
| Media temperature | -20 to 200 °C |
| Flow rate Kv | 684 m³/h |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Cast stainless steel |
| Material number housing | 1.4408/CF8M |
| Material seat seal | PTFE, modified |
| Material seals | Fluoro rubber, PTFE |
| Material ball | Cast stainless steel |
| Material number ball | 1.4408/CF8M |
| Material shaft | High-alloy stainless steel |
| Material number shaft | 1.4401 |
| Product weight | 6500 g |
| Approval | CRN |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZBE-21/2-WA-63-T-2-F0710-V15V15 |
| EAN | 4052568458003 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4408 |
| Nominal size DN [mm] | 65 |
| Nominal pressure PN [bar] | 63 |
| Seal material | FKM, PTFE |
| Housing material | Stainless steel 1.4408 |
| Function | 2/2 |
| Actuation type | Mechanical |
| Medientemperatur [°C] | -20 bis 200 |
| Norm | ISO 5211 |
| Series | VZBE |
