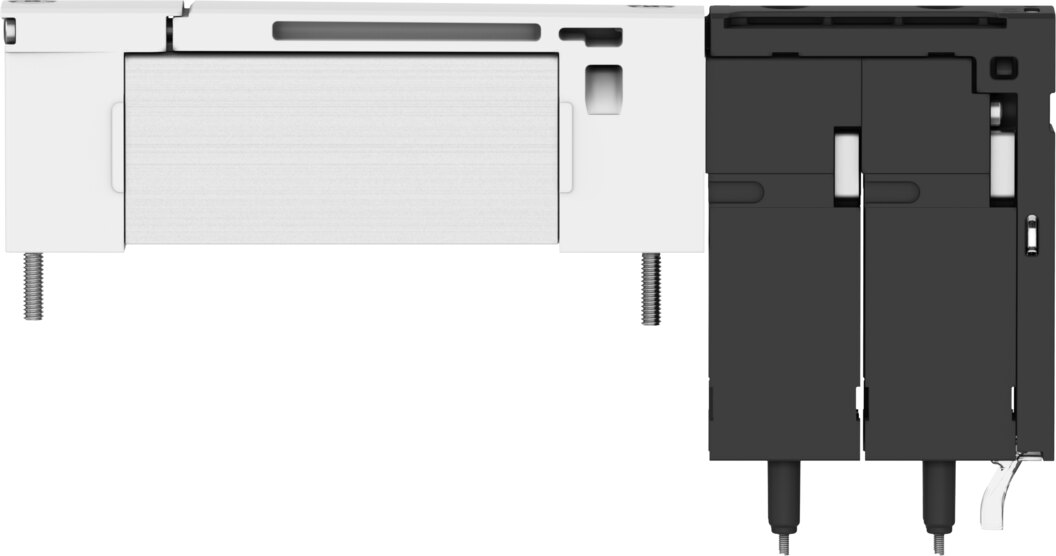

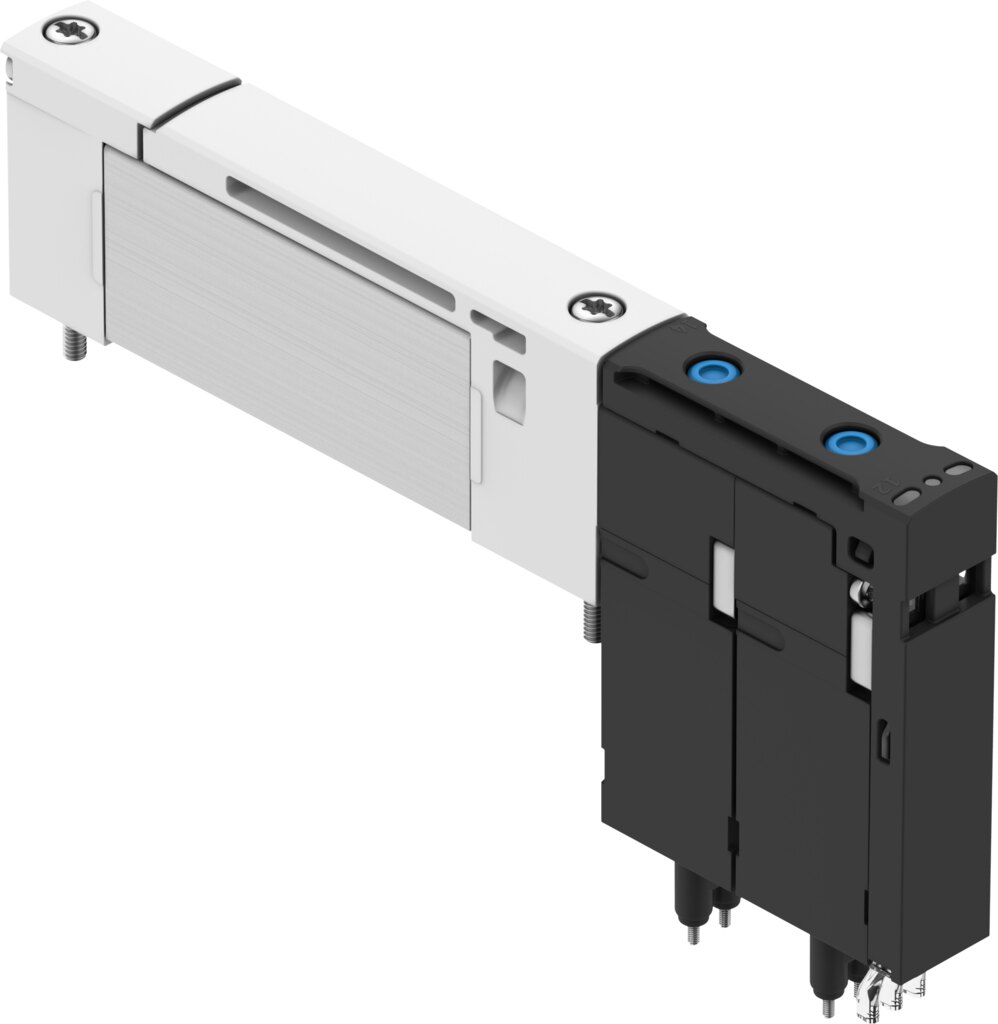

5/4-way solenoid valve, 500 l/min, width 10 mm, for sub-base, 24 V DC VUVX-BK10-P54E-MZH-F-1T1L - Festo 8187067

Festo ✓ Original product Brand new

The Festo solenoid valve VUVX-BK10-P54E-MZH-F-1T1L switches compressed air and inert gases in the range 0 to 7 bar. Standard nominal flow rate 500 l/min, switching time 17 ms on and 17 ms off, mounting on sub-base. Coil 24 V DC: 0.35 W.

Net
€118.80
excl. VAT
Item FES-8187067
Manufacturer no. VUVX-BK10-P54E-MZH-F-1T1L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo solenoid valve VUVX-BK10-P54E-MZH-F-1T1L achieves 500 l/min standard nominal flow rate at operating pressure 0 to 7 bar. Design: piston spool with sealing ring.

Benefits

  • Operating pressure 0 to 7 bar
  • Standard nominal flow rate 500 l/min
  • Switching time 17 ms on, 17 ms off, up to 3 Hz switching frequency
  • Degree of protection IP65, corrosion resistance class CRC 1
  • Width 10 mm
  • Food suitability NSF H1

Use and installation

The VUVX-BK10-P54E-MZH-F-1T1L can switch compressed air and inert gases. Installing the VUVX-BK10-P54E-MZH-F-1T1L: on sub-base, mounting position any, manual override non-detenting, electrical connection plug-in. Permissible for the VUVX-BK10-P54E-MZH-F-1T1L: ambient temperature -5 to 50 °C, medium temperature -5 to 50 °C.

Technical data

FeatureValue
TypeVUVX-BK10-P54E-MZH-F-1T1L
Festo part number8187067

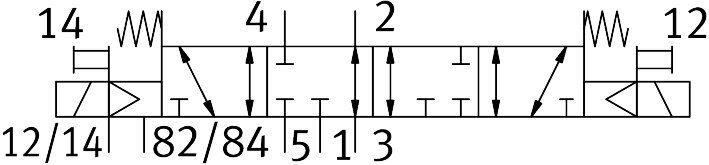

Valve function5/4 closed, 2 or 4 exhausted
Type of actuationElectrical
Valve size10 mm
Nominal flow rate to ISO 8778500 l/min
Operating voltage24 V DC
Operating pressure0 to 7 bar
DesignPiston spool with sealing ring
Type of resetMechanical spring
Degree of protectionIP65
Width10.35 mm
Nominal size3.4 mm
Exhaust functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
Signal status displayYes
Pilot pressure2 to 7 bar
Vacuum suitabilityNo
B value0.39
C value1.86 l/sbar
Nominal flow rate to ISO 8778, exhaust 2-3450 l/min
Max. switching frequency3 Hz
Switching time off17 ms
Switching time on17 ms
Switching time (changeover) when exhausting port 2 or 47 ms
Switching time (changeover) when pressurising port 2 or 418 ms
Duty cycle100%
Max. positive test pulse with 0 signal1400 µs
Max. negative test pulse with 1 signal800 µs
Characteristic coil data24 V DC: 0.35 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumEster oil below 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC1 - Low corrosion stress
PWIS conformityVDMA24364 zone III
Storage temperature-20 to 70 °C
Food suitabilityNSF H1
Medium temperature-5 to 50 °C
Relative humidity5 - 95%
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Ambient temperature-5 to 50 °C
Max. tightening torque, valve mounting0.345 Nm
Product weight52.2 g
Electrical connectionPlug-in
Type of mountingOn sub-base
Pilot air port 12/14Sub-base
Pilot exhaust port 82/84Sub-base
Pneumatic connection 1Sub-base
Pneumatic connection 2Sub-base
Pneumatic connection 3Sub-base
Pneumatic connection 4Sub-base
Pneumatic connection 5Sub-base
Note on materialsRoHS compliant
Material sealsHNBR
Material dynamic sealsHNBR
Material housingAnodised wrought aluminium alloy
Material springHigh-alloy stainless steel
Material piston spoolPOM
Material screwsStainless steel
ManufacturerFesto
Hersteller-NrVUVX-BK10-P54E-MZH-F-1T1L
EAN4052568770150
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
Nominal size DN [mm]3,4
Seal materialHNBR
Housing materialAluminium, anodised
Flow rate [l/min]500
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
Betriebsdruck max [bar]7
Protection ratingIP65
Temperature (max.)50
