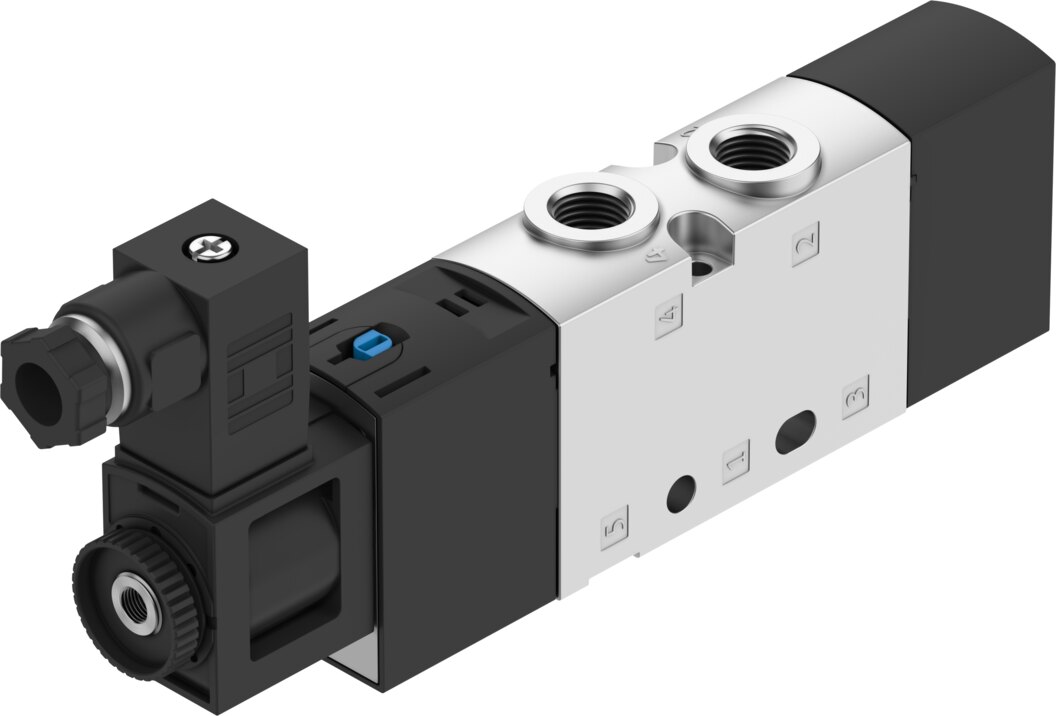

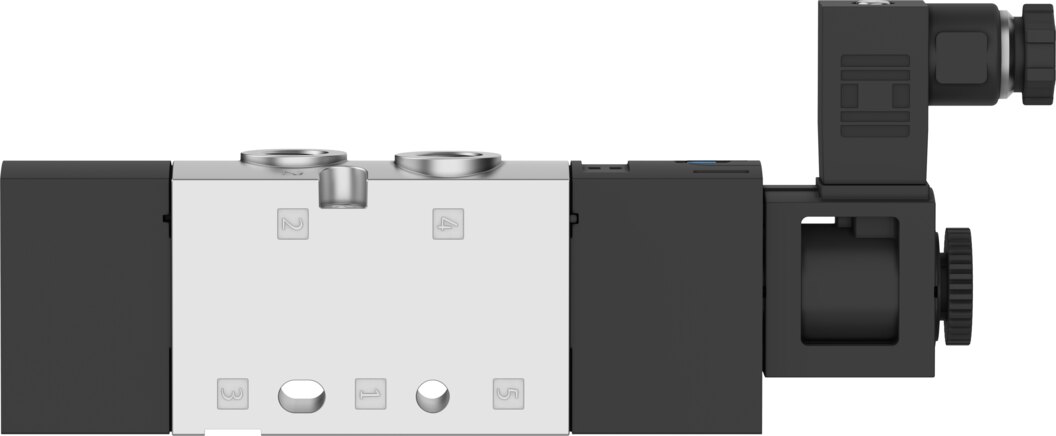

Solenoid valve 5/2-way monostable G1/8 VUVS-L20-M52-AD-G18-F7-1C1+G - Festo 8059135

Festo ✓ Original product Brand new

Solenoid valve VUVS-L20-M52-AD-G18-F7-1C1+G as a 5/2-way valve (monostable) with 700 l/min standard nominal flow rate for controlling pneumatic actuators. Designed for 2.5 to 10 bar operating pressure, G1/8 ports and 21 mm valve size. Switches on in 20 ms and off in 29 ms.

Net
€75.97
excl. VAT
Item FES-8059135
Manufacturer no. VUVS-L20-M52-AD-G18-F7-1C1+G
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 5/2-way valve (monostable), the Festo solenoid valve VUVS-L20-M52-AD-G18-F7-1C1+G delivers 700 l/min standard nominal flow rate at 2.5 to 10 bar operating pressure. Further ratings: G1/8 ports, 21 mm valve size and 24 V DC coil.

Benefits

  • Flow: 700 l/min standard nominal flow rate at 21 mm valve size
  • Pressure range: 2.5 to 10 bar
  • Switching times: 20 ms on, 29 ms off
  • Coil: 2.6 W at 24 V DC, 100% duty cycle
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: IP65 protection, corrosion resistance class 2

Applications

With the VUVS-L20-M52-AD-G18-F7-1C1+G, double-acting cylinders travel in both directions. Electrical connection of the VUVS-L20-M52-AD-G18-F7-1C1+G: type C, to EN 175301-803. The VUVS-L20-M52-AD-G18-F7-1C1+G is mounted on manifold rail, with through-hole. The VUVS-L20-M52-AD-G18-F7-1C1+G operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-L20-M52-AD-G18-F7-1C1+G
Festo part number8059135

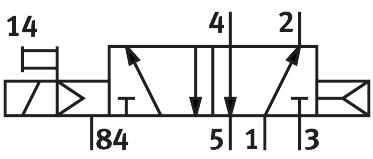

Valve function5/2-way, monostable
Type of actuationelectrical
Valve size21 mm
Standard nominal flow rate700 l/min
pneumatic working portG1/8
Operating voltage24 V DC
Operating pressure2.5 to 10 bar
Designpiston spool
Reset methodpneumatic spring
Approvalc UL us - Recognized (OL)
Degree of protectionIP65, with plug socket, to IEC 60529
Nominal size5.7 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.35
C value2.9 l/sbar
Switching time off29 ms
Switching time on20 ms
Duty cycle100%
Max. positive test pulse with 0 signal1900 µs
Max. negative test pulse with 1 signal2700 µs
Coil characteristics24 V DC: 2.6 W
Permissible voltage fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight232 g
Electrical connectiontype C, to EN 175301-803
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 84M5
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingdie-cast aluminium, painted
Material piston slidewrought aluminium alloy
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVUVS-L20-M52-AD-G18-F7-1C1+G
EAN4052568435431
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
Nominal size DN [mm]5,7
Seal materialHNBR, NBR
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]700
Actuation typeElectrical
NormDIN EN 175301-803
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionG1/8
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
