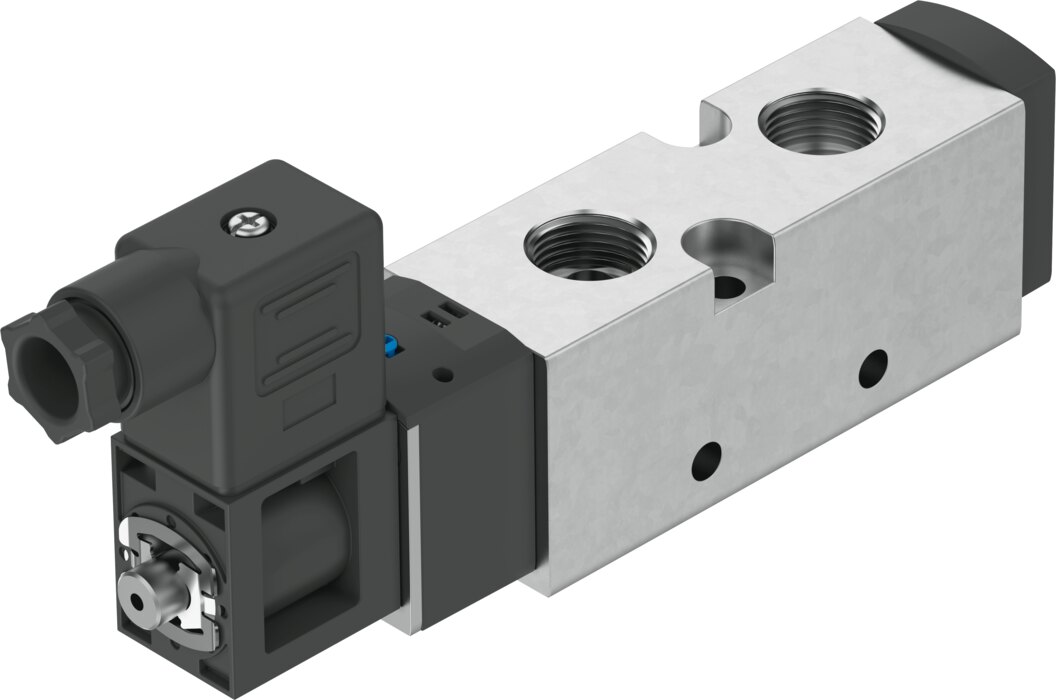

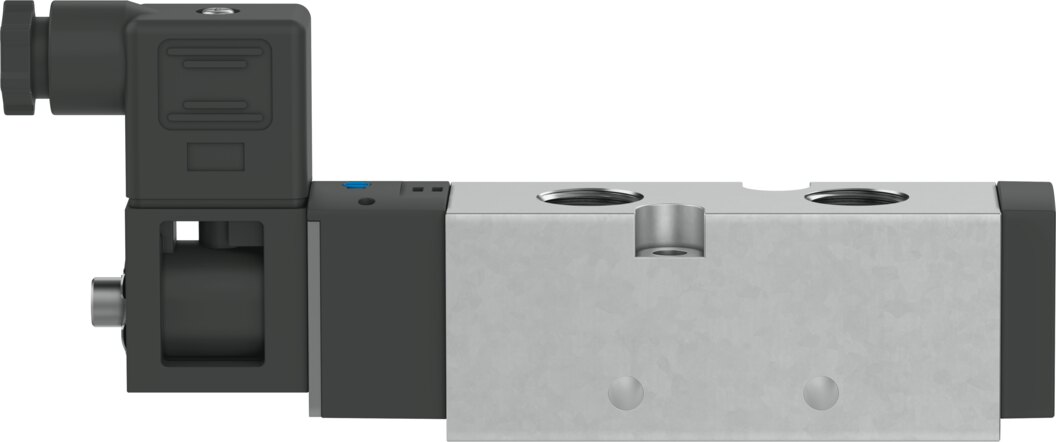

Solenoid valve 5/2-way monostable G3/8 VUVS-LK30-M52-AD-G38-1B2+GL-S - Festo 8060310

Festo ✓ Original product Brand new

Solenoid valve VUVS-LK30-M52-AD-G38-1B2+GL-S as a 5/2-way valve (monostable) with 1600 l/min standard nominal flow rate for controlling pneumatic actuators. Ratings: 1.5 to 8 bar operating pressure, G3/8 ports and 31 mm valve size. Switching times 16 ms on and 21 ms off.

Net
€64.94
excl. VAT
Item FES-8060310
Manufacturer no. VUVS-LK30-M52-AD-G38-1B2+GL-S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 5/2-way valve (monostable), the Festo solenoid valve VUVS-LK30-M52-AD-G38-1B2+GL-S delivers 1600 l/min standard nominal flow rate at 1.5 to 8 bar operating pressure. Piloted with internal pilot air, with G3/8 ports, 31 mm valve size and 24 V DC coil.

Benefits

  • Flow: 1600 l/min standard nominal flow rate at 31 mm valve size
  • Pressure range: 1.5 to 8 bar
  • Switching times: 16 ms on, 21 ms off
  • Coil: 3.3 W at 24 V DC, 100% duty cycle
  • Environment: IP65 protection, corrosion resistance class 1
  • Temperature: -5 to 50 °C ambient

Applications

Typical use of the VUVS-LK30-M52-AD-G38-1B2+GL-S: controlling double-acting cylinders and actuators. Electrical connection of the VUVS-LK30-M52-AD-G38-1B2+GL-S: screw terminal. Mounting of the VUVS-LK30-M52-AD-G38-1B2+GL-S: on manifold rail, with through-hole. Operating medium for the VUVS-LK30-M52-AD-G38-1B2+GL-S: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-LK30-M52-AD-G38-1B2+GL-S
Festo part number8060310

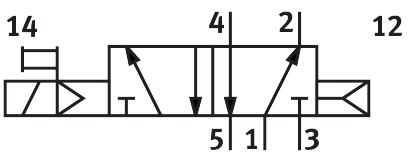

Valve function5/2-way, monostable
Type of actuationelectrical
Valve size31 mm
Standard nominal flow rate1600 l/min
pneumatic working portG3/8
Operating voltage24 V DC
Operating pressure1.5 to 8 bar
Designpiston spool
Reset methodpneumatic spring
Degree of protectionIP65, with plug socket, to IEC 60529
Nominal size8.1 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.37
C value7.03 l/sbar
Switching time off21 ms
Switching time on16 ms
Duty cycle100%
Max. positive test pulse with 0 signal2500 µs
Max. negative test pulse with 1 signal1100 µs
Coil characteristics24 V DC: 3.3 W
Permissible voltage fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-Zone III
Media temperature-5 to 50 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight339 g
Electrical connectionscrew terminal
Cable diameter6 to 8 mm
Nominal cross section conductor0.5 to 1.5 mm²
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Pneumatic connection, port 3G3/8
Pneumatic connection, port 4G3/8
Pneumatic connection, port 5G3/8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingwrought aluminium alloy
Material piston slidewrought aluminium alloy
Weight (shipping)0.35 kg
Weight0.35 kg
ManufacturerFesto
Hersteller-NrVUVS-LK30-M52-AD-G38-1B2+GL-S
EAN4052568435660
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/8
Nominal size DN [mm]8,1
Seal materialHNBR, NBR
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]1600
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]8
Pneumatic connectionG3/8
Protection ratingIP65
Temperature (max.)50
