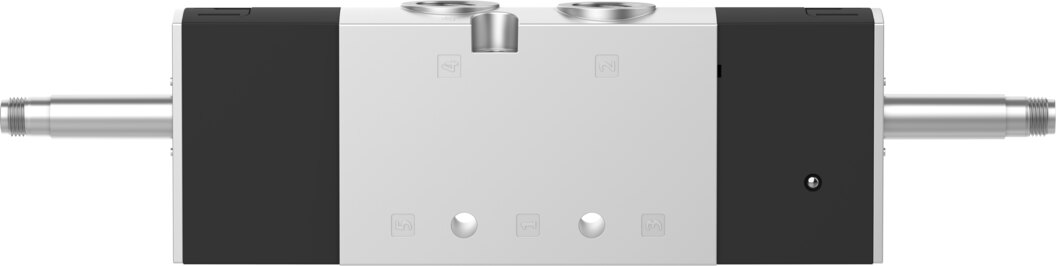

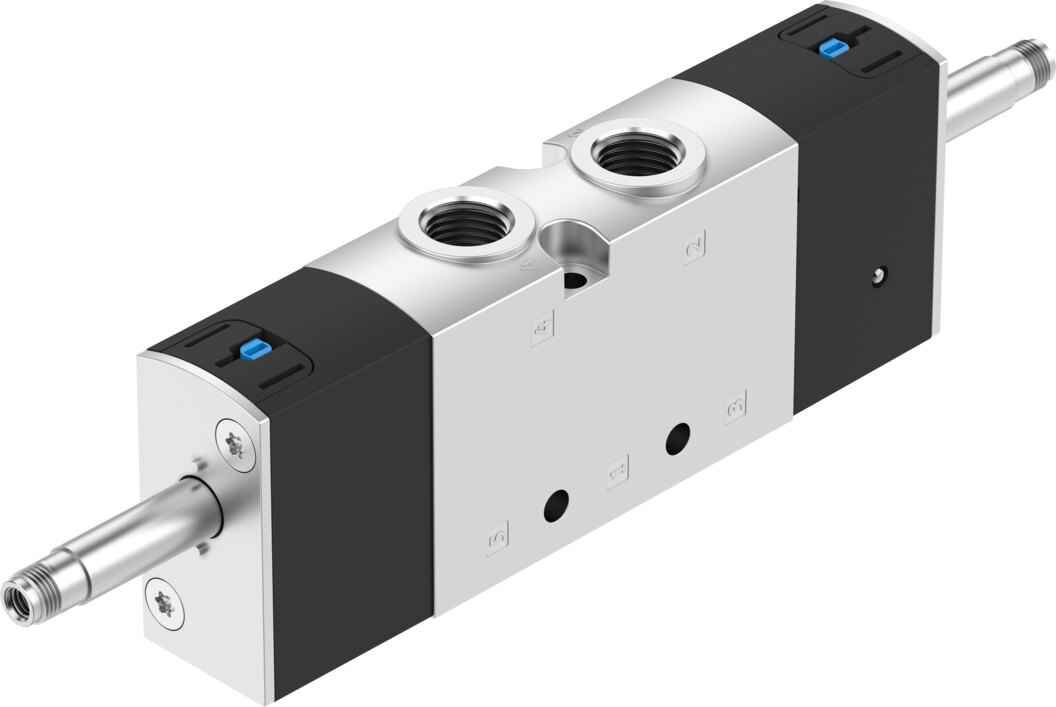

Solenoid valve 5/2-way bistable G1/4 ATEX VUVS-L25-B52-D-G14-FN - Festo 8192989
As a 5/2-way valve (bistable), the Festo solenoid valve VUVS-L25-B52-D-G14-FN delivers 1300 l/min standard nominal flow rate. Designed for 1.5 to 8 bar operating pressure, G1/4 ports and 26.5 mm valve size. Suitable for ATEX zones 1, 2, 21, 22.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 1300 l/min standard nominal flow rate, the solenoid valve VUVS-L25-B52-D-G14-FN switches as a 5/2-way valve (bistable) at 1.5 to 8 bar operating pressure. It also offers G1/4 ports, 26.5 mm valve size and 1.5 to 8 bar pilot pressure.
Benefits
- Flow: 1300 l/min standard nominal flow rate at 26.5 mm valve size
- Pressure range: 1.5 to 8 bar
- Explosion protection: ATEX zones 1, 2, 21, 22
- Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Environment: corrosion resistance class 2
- Temperature: -10 to 60 °C ambient
Applications
Typical use of the VUVS-L25-B52-D-G14-FN: controlling double-acting cylinders and actuators. As a bistable valve it keeps the last switching position even without an applied signal. In hazardous areas the VUVS-L25-B52-D-G14-FN is designed for ATEX zones 1, 2, 21, 22, the information in the certificate must be observed. Operating medium for the VUVS-L25-B52-D-G14-FN: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VUVS-L25-B52-D-G14-FN |
|---|---|
| Festo part number | 8192989 |
| Valve function | 5/2-way, bistable |
| Type of actuation | electrical |
| Valve size | 26.5 mm |
| Standard nominal flow rate | 1300 l/min |
| pneumatic working port | G1/4 |
| Operating pressure | 1.5 to 8 bar |
| Design | piston spool |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Manual override | detenting |
| Type of piloting | piloted |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | positive overlap |
| Pilot pressure | 1.5 to 8 bar |
| b value | 0.4 |
| C value | 5.6 l/sbar |
| Switching time reversal | 27 ms |
| Explosion protection | observe the information in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | class 6 according to ISO 14644-1 |
| Media temperature | -10 to 60 °C |
| Pilot medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 60 °C |
| Product weight | 324 g |
| Breather connection | not ducted |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | die-cast aluminium, painted |
| Material piston slide | wrought aluminium alloy |
| Material screws | galvanised steel |
| Weight (shipping) | 0.34 kg |
| Weight | 0.34 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVS-L25-B52-D-G14-FN |
| EAN | 4052568641962 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Seal material | HNBR, NBR |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 1300 |
| Actuation type | Electrical |
| Series | VUVS |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
