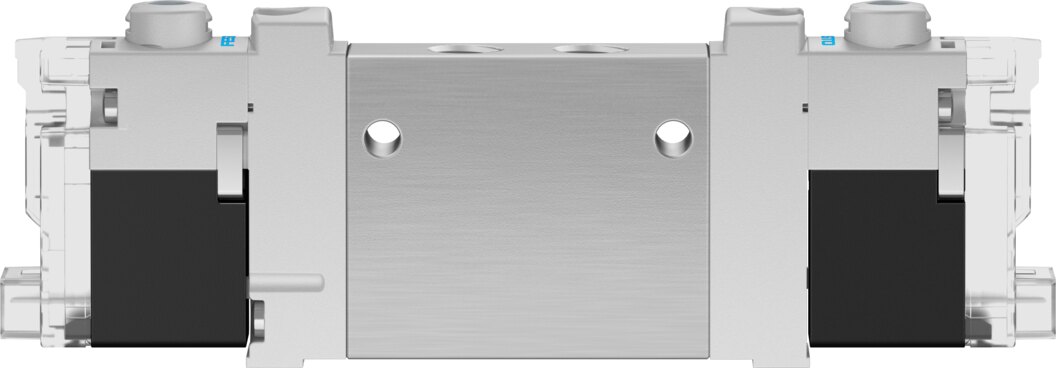

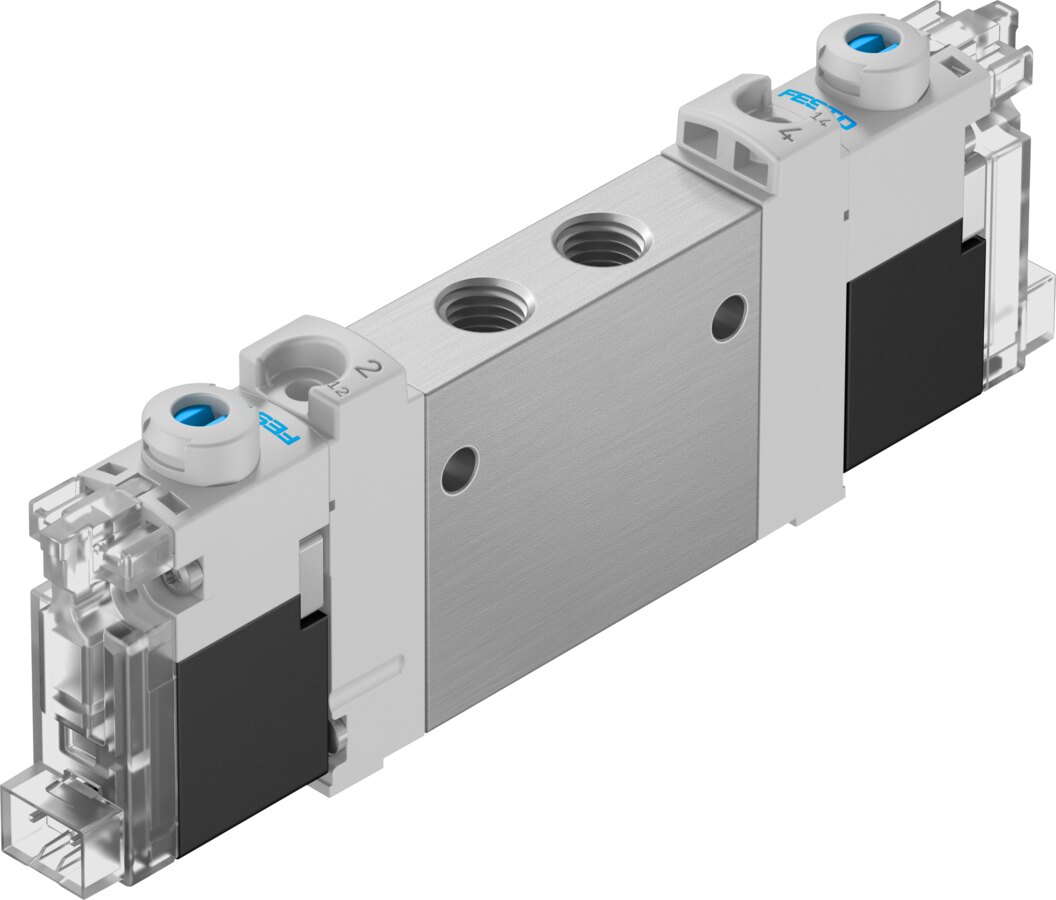

Solenoid valve 5/2 bistable, 10 mm, M7 VUVG-LK10-B52-T-M7-1H2L-S - Festo 8042548
5/2 bistable solenoid valve from the VUVG series: 340 l/min standard nominal flow, operating pressure 1.5 to 7 bar. Port M7, valve size 10 mm, 24 V DC coil with 0.8 W.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VUVG-LK10-B52-T-M7-1H2L-S works as a 5/2-way impulse valve and stays in position after a short switching signal. At 10 mm valve size it delivers 340 l/min.
Benefits
- Flow rate: 340 l/min to DIN 1343 at valve size 10 mm.
- Protection: Degree of protection IP40, ambient -5 to 50 °C.
- Coil: 24 V DC: 0.8 W, duty cycle 100 %.
- Pressure range: 1.5 to 7 bar operating pressure.
Application
Typical: double-acting cylinders and rotary actuators. Internal pilot air from port 1. Manual override detenting, non-detenting. Mounting on manifold rail, with through-hole, product weight 57 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Once lubricated, lubrication must continue.
Technical data
| Type | VUVG-LK10-B52-T-M7-1H2L-S |
|---|---|
| Festo part number | 8042548 |
| Valve function | 5/2-way, double solenoid |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate (to DIN 1343) | 340 l/min |
| Pneumatic working port | M7 |
| Operating voltage | 24 V DC |
| Operating pressure | 1.5 to 7 bar |
| Design | Piston spool with sealing ring |
| Approval | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 |
| Degree of protection | IP40 |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Overlap | Positive overlap |
| Signal status display | LED |
| Maximum switching frequency | 2 Hz |
| Changeover time | 8 ms |
| Duty cycle | 100 % |
| Maximum positive test pulse with 0 signal | 1600 µs |
| Maximum negative test pulse with 1 signal | 3000 µs |
| Characteristic coil data | 24 V DC: 0.8 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -5 to 50 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Product weight | 57 g |
| Electrical connection | Plug |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic connection, port 2 | M7 |
| Pneumatic connection, port 4 | M7 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-LK10-B52-T-M7-1H2L-S |
| EAN | 4052568286798 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M7 |
| Seal material | HNBR, NBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 50 |
| Series | VUVG |
| Betriebsdruck max [bar] | 7 |
| Pneumatic connection | M7 |
| Protection rating | IP40 |
| Temperature (max.) | 50 |
