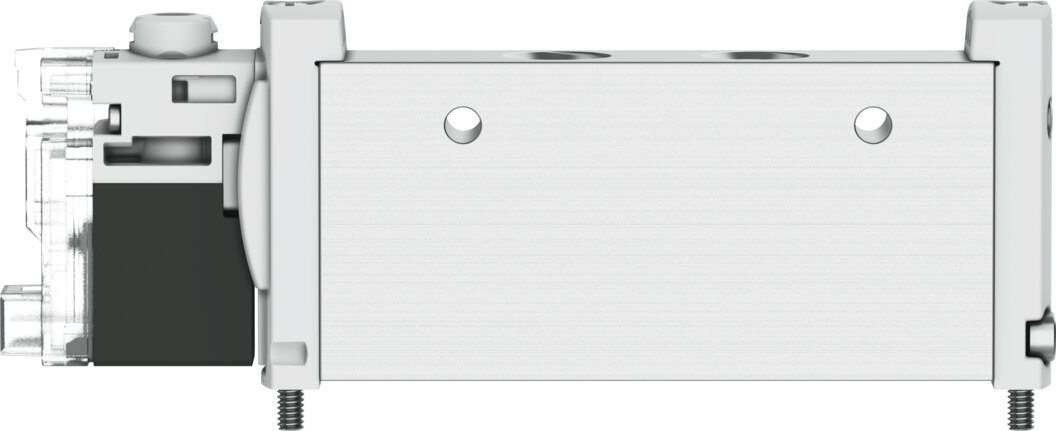

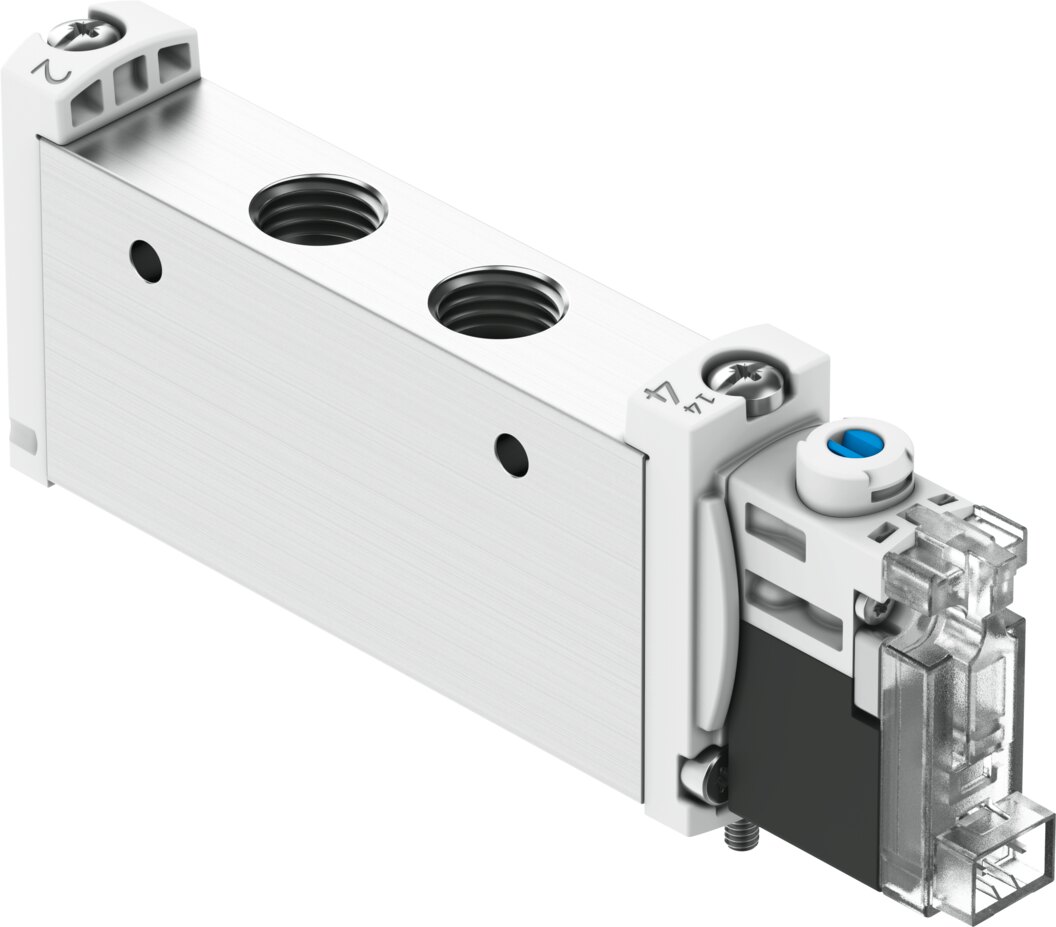

Solenoid valve 5/2 monostable, 14 mm, G1/8 VUVG-L14-M52-MZT-G18-1H2L-W1 - Festo 595338
VUVG solenoid valve with valve function 5/2 monostable in valve size 14 mm. Port G1/8, 24 V DC coil, reset by mechanical spring, external pilot air.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

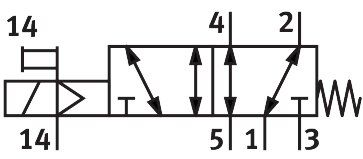

The solenoid valve VUVG-L14-M52-MZT-G18-1H2L-W1 works as a monostable 5/2-way valve, reset is by a mechanical spring. VUVG series, valve size 14 mm.
Benefits
- Size: Valve size 14 mm, working port G1/8.
- Voltage: 24 V DC.
- Manual override: Detenting, non-detenting.
- Reset: Mechanical spring, external pilot air.
Application
Suited to double-acting cylinders. External pilot air. Mounting on manifold rail, with through-hole. The data is derived from order type VUVG-L14-M52-MZT-G18-1H2L-W1, see the Festo datasheet for further values.
Technical data
| Type | VUVG-L14-M52-MZT-G18-1H2L-W1 |
|---|---|
| Festo part number | 595338 |
| Valve function | 5/2-way, single solenoid |
| Type of actuation | Electrical |
| Valve size | 14 mm |
| Pneumatic working port | G1/8 |
| Operating voltage | 24 V DC |
| Type of reset | Mechanical spring |
| Manual override | Detenting, non-detenting |
| Pilot air supply | External |
| Type of mounting | On manifold rail, with through-hole |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L14-M52-MZT-G18-1H2L-W1 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Function | 5/2 monostable |
| Actuation type | Electrical |
| Series | VUVG |
| Pneumatic connection | G1/8 |
