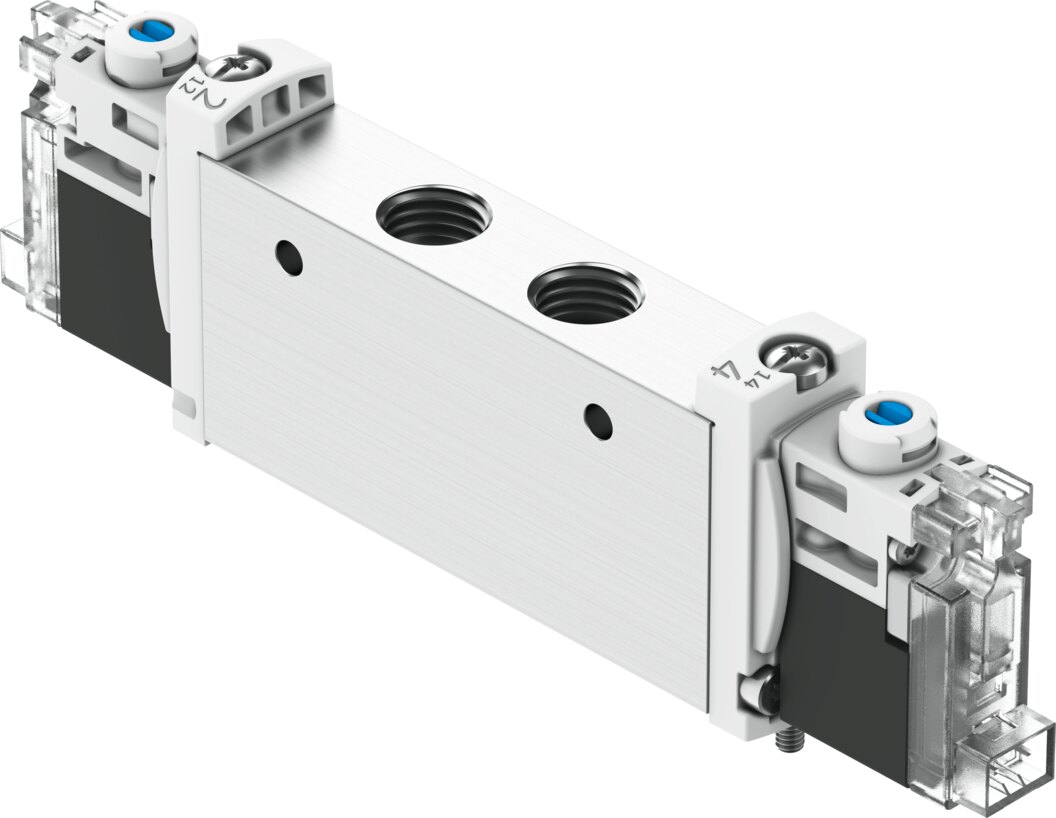

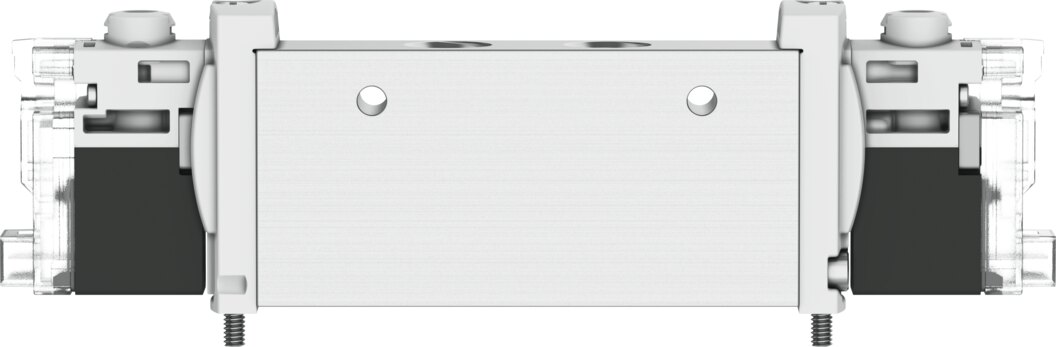

Solenoid valve 5/2-way bistable, valve size 14 mm, G1/8 VUVG-L14-B52-ZT-G18-1R8L - Festo 577597
The solenoid valve VUVG-L14-B52-ZT-G18-1R8L with 5/2-way bistable function and 14 mm valve size controls double-acting cylinders with pulse control. Operating pressure -0.9 to 10 bar, working ports G1/8, coil 24 V DC with 1.0 W. External pilot air at 1.5 to 8 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Valve function 5/2-way bistable at 14 mm valve size: the Festo solenoid valve VUVG-L14-B52-ZT-G18-1R8L controls double-acting cylinders with pulse control. With two solenoids it works as a pulse valve: a short pulse is enough and the position is then retained.
Benefits
- Valve size 14 mm for compact valve arrangements
- Operating pressure -0.9 to 10 bar, suitable for vacuum
- Coil 24 V DC with 1.0 W, 100 % duty cycle
- Working ports G1/8
- Degree of protection IP65, with plug socket
Applications
The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Within -5 to 60 °C the valve VUVG-L14-B52-ZT-G18-1R8L operates in any mounting position. Mounting of the VUVG-L14-B52-ZT-G18-1R8L: on manifold rail, with through-hole, electrical connection via electrical sub-base.
Technical data
| Feature | Value |
|---|---|
| Type | VUVG-L14-B52-ZT-G18-1R8L |
| Festo part number | 577597 |
| Series | VUVG |
| Valve function | 5/2-way bistable |
| Type of actuation | Electrical |
| Valve size | 14 mm |
| Operating pressure | -0.9 to 10 bar |
| Design | Piston spool |
| Degree of protection | IP65, with plug socket |
| Nominal size | 5.6 mm |
| Exhaust air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Pilot pressure | 1.5 to 8 bar |
| Duty cycle | 100 % |
| Coil characteristics | 24 V DC: 1.0 W |
| Permissible voltage fluctuation | ±10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| Medium temperature | -5 to 60 °C |
| Ambient temperature | -5 to 60 °C |
| Electrical connection | Via electrical sub-base |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic port 1 | G1/8 |
| Pneumatic port 2 | G1/8 |
| Pneumatic port 4 | G1/8 |
| Pneumatic port 5 | G1/8 |
| Seal material | HNBR, NBR |
| Housing material | Wrought aluminium alloy |
| Weight | 0.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L14-B52-ZT-G18-1R8L |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | G 1/8 |
| Nominal size DN [mm] | 5,6 |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 60 |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Protection rating | IP65 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
