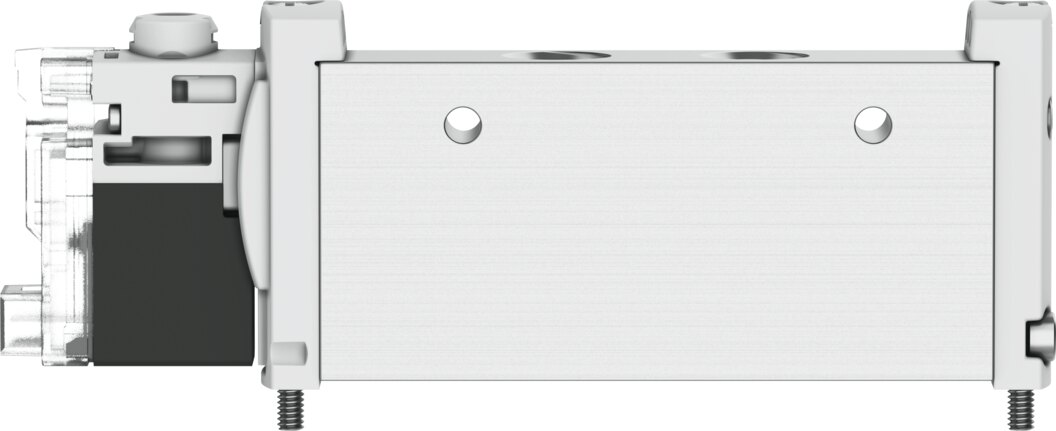

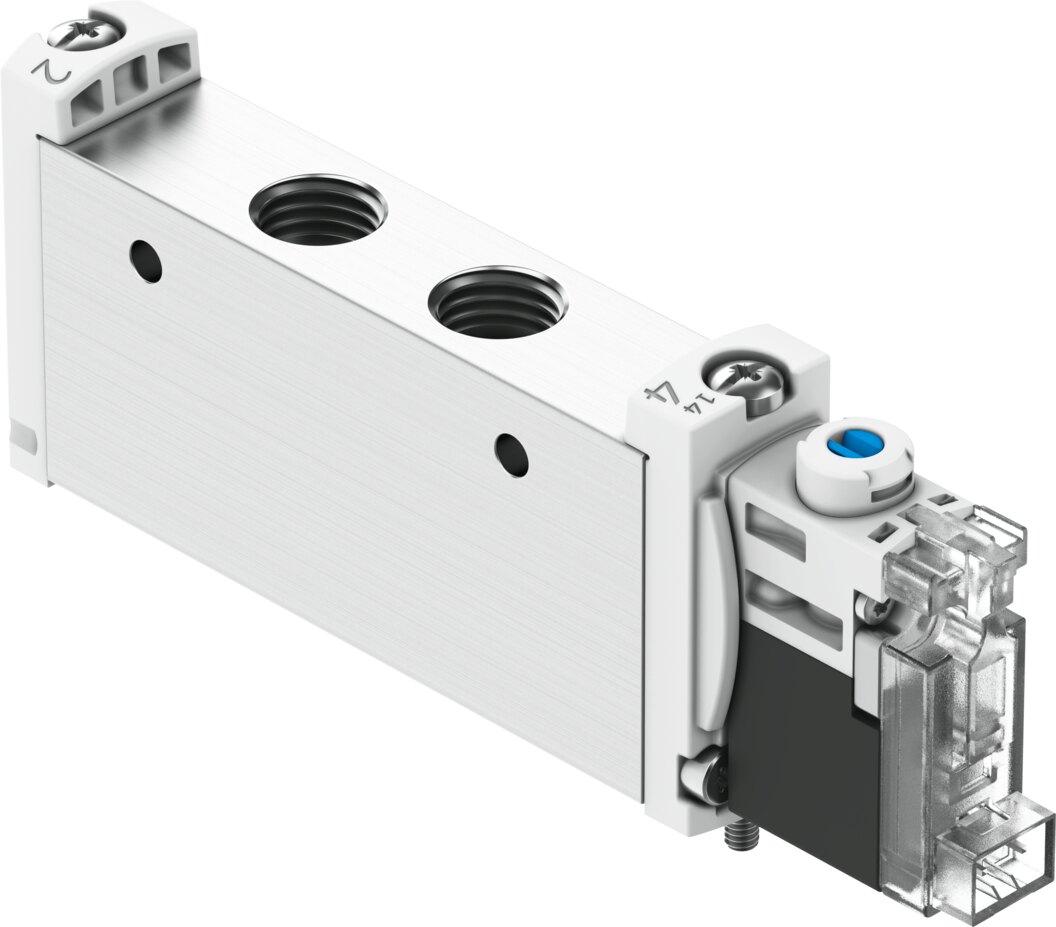

Solenoid valve 5/2 monostable, 14 mm, G1/8 VUVG-L14-M52-MT-G18-1R1L - Festo 589269

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-L14-M52-MT-G18-1R1L, function 5/2 monostable in valve size 14 mm. Port G1/8, 24 V DC coil, reset by mechanical spring, internal pilot air.

Net
€81.21
excl. VAT
Item FES-589269
Manufacturer no. VUVG-L14-M52-MT-G18-1R1L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L14-M52-MT-G18-1R1L switches as a 5/2-way valve and returns to its normal position via a mechanical spring when the signal drops. It belongs to the VUVG series in valve size 14 mm.

Benefits

  • Size: Valve size 14 mm, working port G1/8.
  • Voltage: 24 V DC.
  • Manual override: Detenting, non-detenting.
  • Reset: Mechanical spring, internal pilot air.

Application

The VUVG-L14-M52-MT-G18-1R1L drives double-acting cylinders in both directions. Pilot air is taken internally from the supply port. Installation on manifold rail, with through-hole, weight 0.085 kg. The data is derived from order type VUVG-L14-M52-MT-G18-1R1L, see the Festo datasheet for further values.

Technical data

TypeVUVG-L14-M52-MT-G18-1R1L
Festo part number589269
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size14 mm
Pneumatic working portG1/8
Operating voltage24 V DC
Type of resetMechanical spring
Manual overrideDetenting, non-detenting
Pilot air supplyInternal
Type of mountingOn manifold rail, with through-hole
Weight0.085 kg
ManufacturerFesto
Hersteller-NrVUVG-L14-M52-MT-G18-1R1L
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
Function5/2 monostable
Actuation typeElectrical
SeriesVUVG
Pneumatic connectionG1/8
