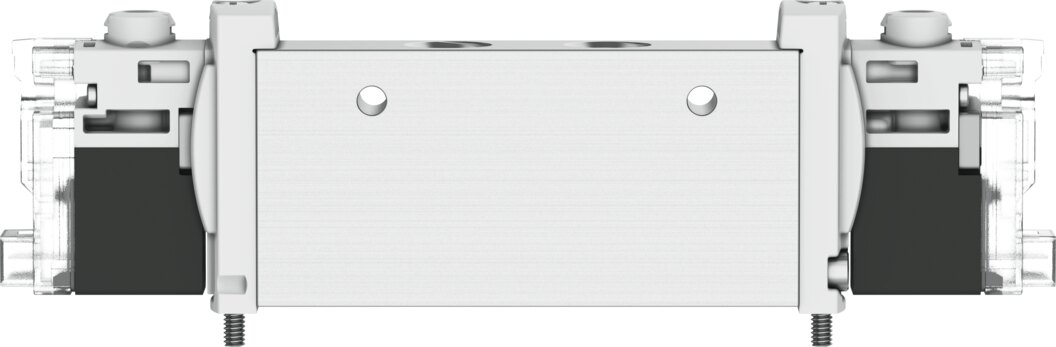

Solenoid valve 2x 3/2 normally closed, monostable, 14 mm VUVG-L14-T32C-MT-Q4-1L3RL - Festo 610477
Festo solenoid valve VUVG-L14-T32C-MT-Q4-1L3RL, function 2x 3/2 normally closed, monostable in valve size 14 mm. 24 V DC coil, reset by mechanical spring, internal pilot air.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

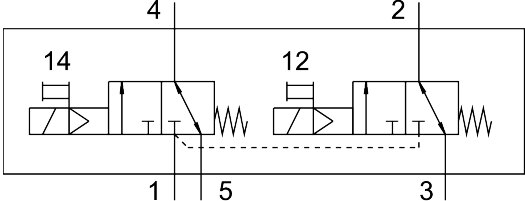

The solenoid valve VUVG-L14-T32C-MT-Q4-1L3RL combines two 3/2-way valves (normally closed) in one housing. It belongs to the VUVG series in valve size 14 mm.
Benefits
- Reset: Mechanical spring, internal pilot air.
- Manual override: Detenting, non-detenting.
- Voltage: 24 V DC.
Application
Use: single-acting cylinders, separate pilot circuits. Pilot air is taken internally from the supply port. Installation on manifold rail, with through-hole. The data is derived from order type VUVG-L14-T32C-MT-Q4-1L3RL, see the Festo datasheet for further values.
Technical data
| Type | VUVG-L14-T32C-MT-Q4-1L3RL |
|---|---|
| Festo part number | 610477 |
| Valve function | 2x3/2-way, closed, monostable |
| Type of actuation | Electrical |
| Valve size | 14 mm |
| Operating voltage | 24 V DC |
| Type of reset | Mechanical spring |
| Manual override | Detenting, non-detenting |
| Pilot air supply | Internal |
| Type of mounting | On manifold rail, with through-hole |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L14-T32C-MT-Q4-1L3RL |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Function | 2x3/2 closed monostable |
| Actuation type | Electrical |
| Series | VUVG |
