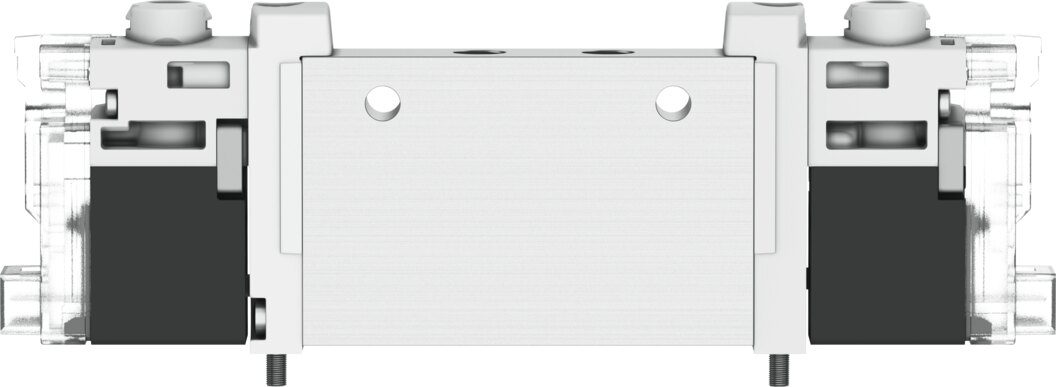

Solenoid valve 5/3-way closed, valve size 10 mm, M7 VUVG-L10-P53C-T-M7-1H2RL - Festo 572183

Festo ✓ Original product Brand new

The solenoid valve VUVG-L10-P53C-T-M7-1H2RL with 5/3-way closed function and 10 mm valve size controls double-acting cylinders with stops in intermediate positions. Operating pressure 3 to 8 bar, working ports M7. Housing in wrought aluminium alloy, seals in HNBR, NBR.

Net
€107.86
excl. VAT
Item FES-572183
Manufacturer no. VUVG-L10-P53C-T-M7-1H2RL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Valve function 5/3-way closed at 10 mm valve size: the Festo solenoid valve VUVG-L10-P53C-T-M7-1H2RL controls double-acting cylinders with stops in intermediate positions. The closed mid-position shuts off the cylinder chambers and stops the actuator when neither solenoid is energised.

Benefits

  • Valve size 10 mm for compact valve arrangements
  • Operating pressure 3 to 8 bar
  • Working ports M7
  • Internal pilot air

Applications

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4]. Festo 572183 is mounted on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-L10-P53C-T-M7-1H2RL
Festo part number572183
SeriesVUVG
Valve function5/3-way closed
Type of actuationElectrical
Valve size10 mm
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
Nominal size3.5 mm
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyInternal
Pilot pressure3 to 8 bar
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail, with through-hole
Pneumatic port 1M7
Pneumatic port 2M7
Pneumatic port 4M7
Pneumatic port 5M7
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.055 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-P53C-T-M7-1H2RL
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM7
Nominal size DN [mm]3,5
MediumCompressed air
Function5/3 closed
Actuation typeElectrical
Betriebsdruck max [bar]8
Pneumatic connectionM7
